Takagi T-K3 User Manual

- 41 -

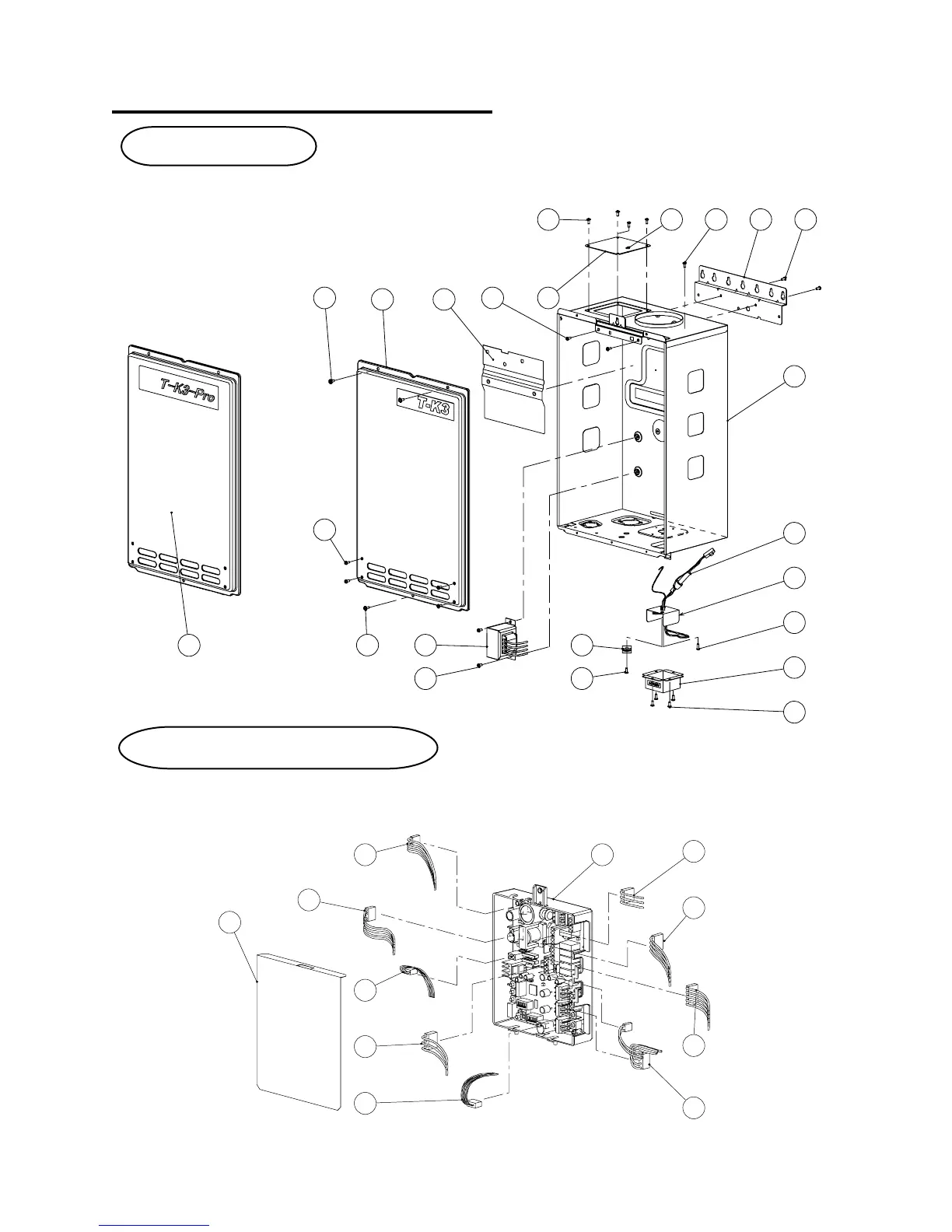

COMPONENTS DIAGRAM
Case assembly
Computer board assembly
708
701
709
710
711
104
714
715
716
717
712
001
005
003
051
050 702
051 051 004 052052
007
052
052
706
707
053
052
054
053
050
006
002
Other than the front cover (No.7), all of the T-K3-Pro’s parts are the same as the T-K3.
The T-K3 and the T-K3-Pro share the same components.

Takagi T-K3 Specifications

General

Type	Tankless
Installation Type	Indoor
Maximum BTU Input	199, 000 BTU/h
Gas Connection Size	3/4"
Vent Size	3"
Hot Water Flow Rate (at 35°C rise)	6.6 GPM
Maximum Input	199, 000 BTU/h
