CONTROLS

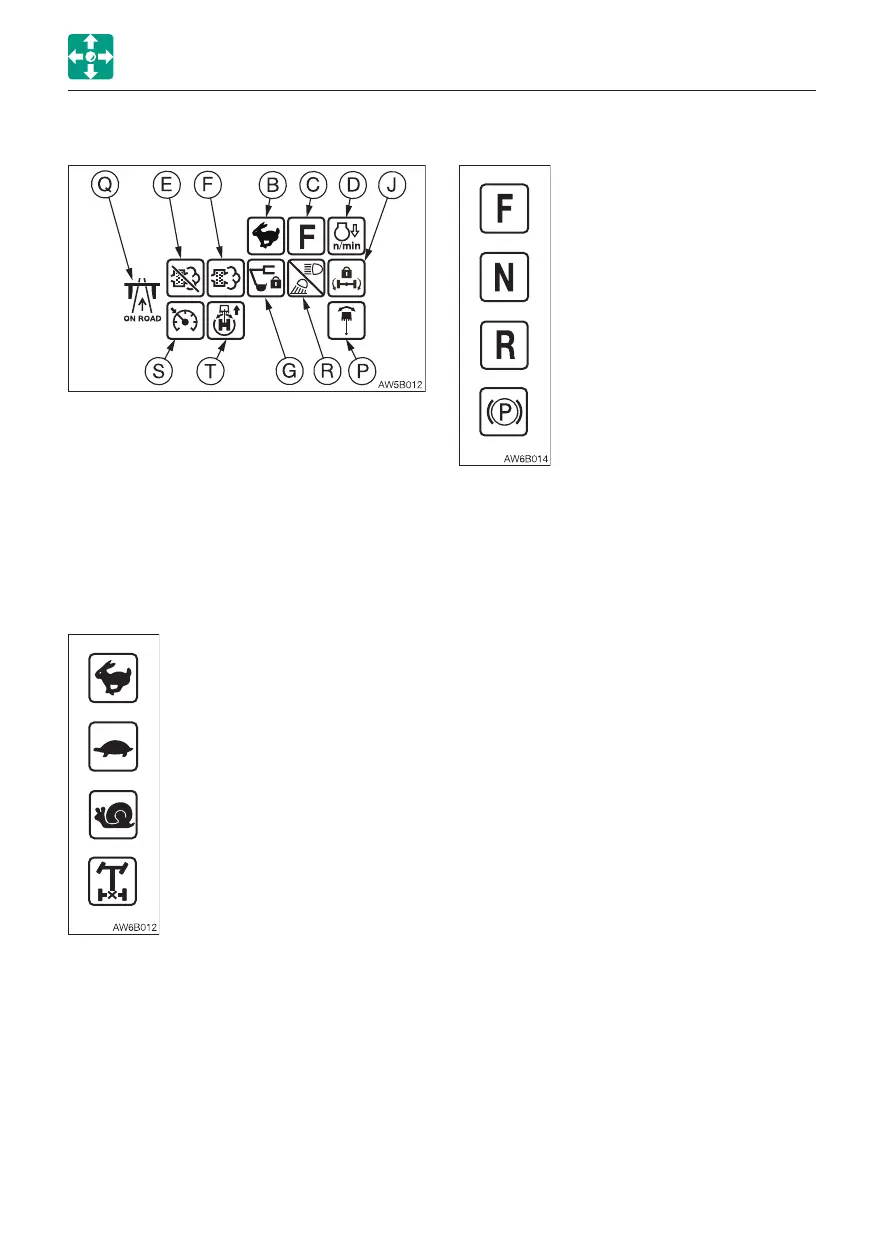

13. Traveling mode display
Q. Traveling mode symbol
This symbol indicates that the machine is
in the traveling mode, and the icon
suitable for the traveling is displayed.
To enter the traveling mode, set the
creeping travel switch to OFF, and release
the brake pedal lock.
B. Travel speed /Diff- lock indicator lamp
MULTI-INFORMATION DISPLAY
........ High-speed travel
........ Low-speed travel
........ Creeping travel
........ Differential gear lock
(Diff-lock)
This lamp turns on either when the travel
speed is changed or the Diff-lock switch is
pressed.
........ Travel Forward
........ Neutral
........ Travel in Reverse
........ Parking brake is on.
C. Travel gear position /PB indicator lamp
To Next Page
