CONTROLS
MULTI-INFORMATION DISPLAY

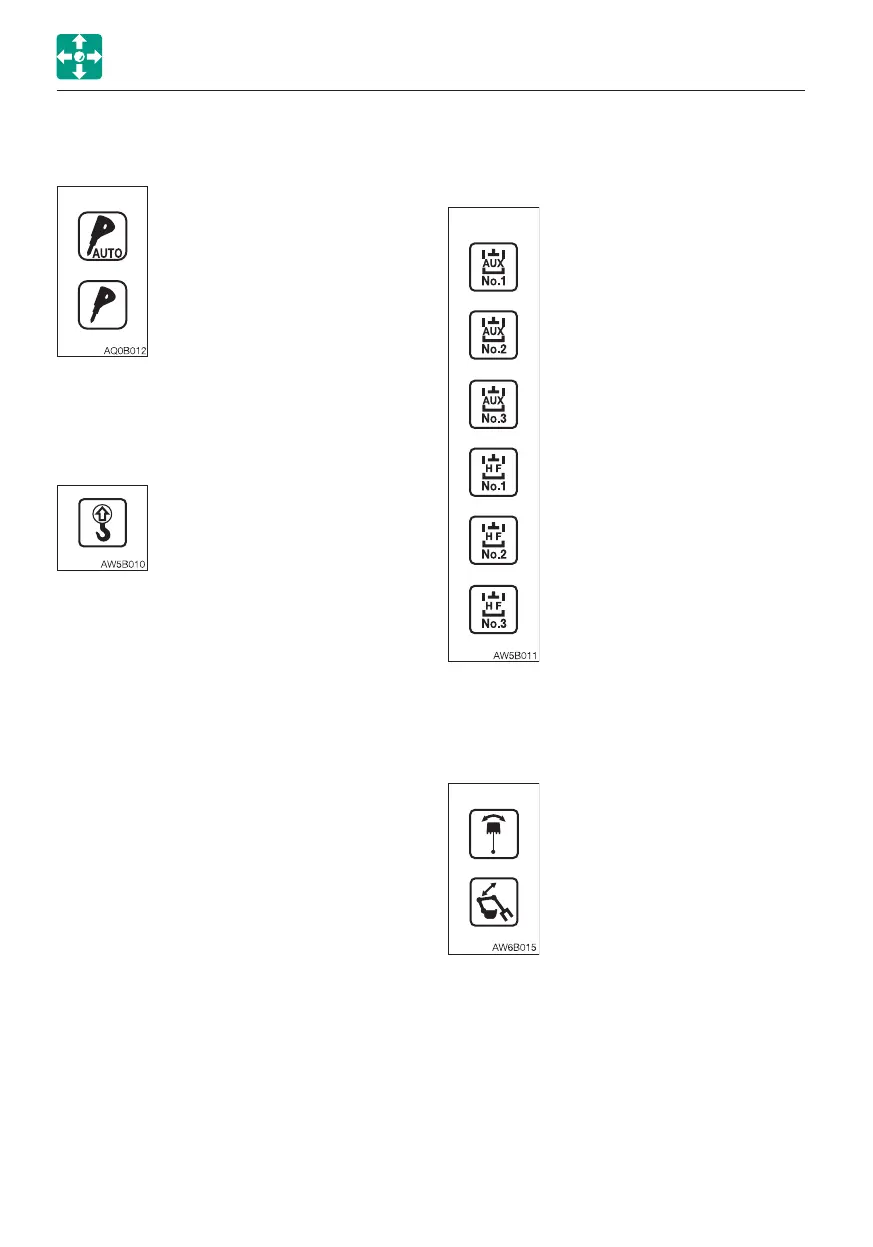

N. Auxiliary 1st flow rate indicator lamp
This lamp lights up to indicate which flow
rate setting is selected in the auxiliary 1st.
....... Flow rate setting 1
....... Flow rate setting 2
....... Flow rate setting 3
....... High-flow setting 1
....... High-flow setting 2
....... High-flow setting 3
Refer to “Auxiliary line flow rate setting” on
page 2-30.
P. Swing /Second boom indicator lamp
........ Swing is selected.
........ Second boom is selected.
........ Auxiliary 1st auto tank is
selected.
........ Auxiliary 1st one-way is
selected.
No display: Two-way (two-way circuit) is
selected.
M.Lifting overload warning lamp
........ Lifting overload switch is
ON.
L. Auxiliary 1st one-way (one-way circuit)
indicator lamp
