2-7
CONTROLS

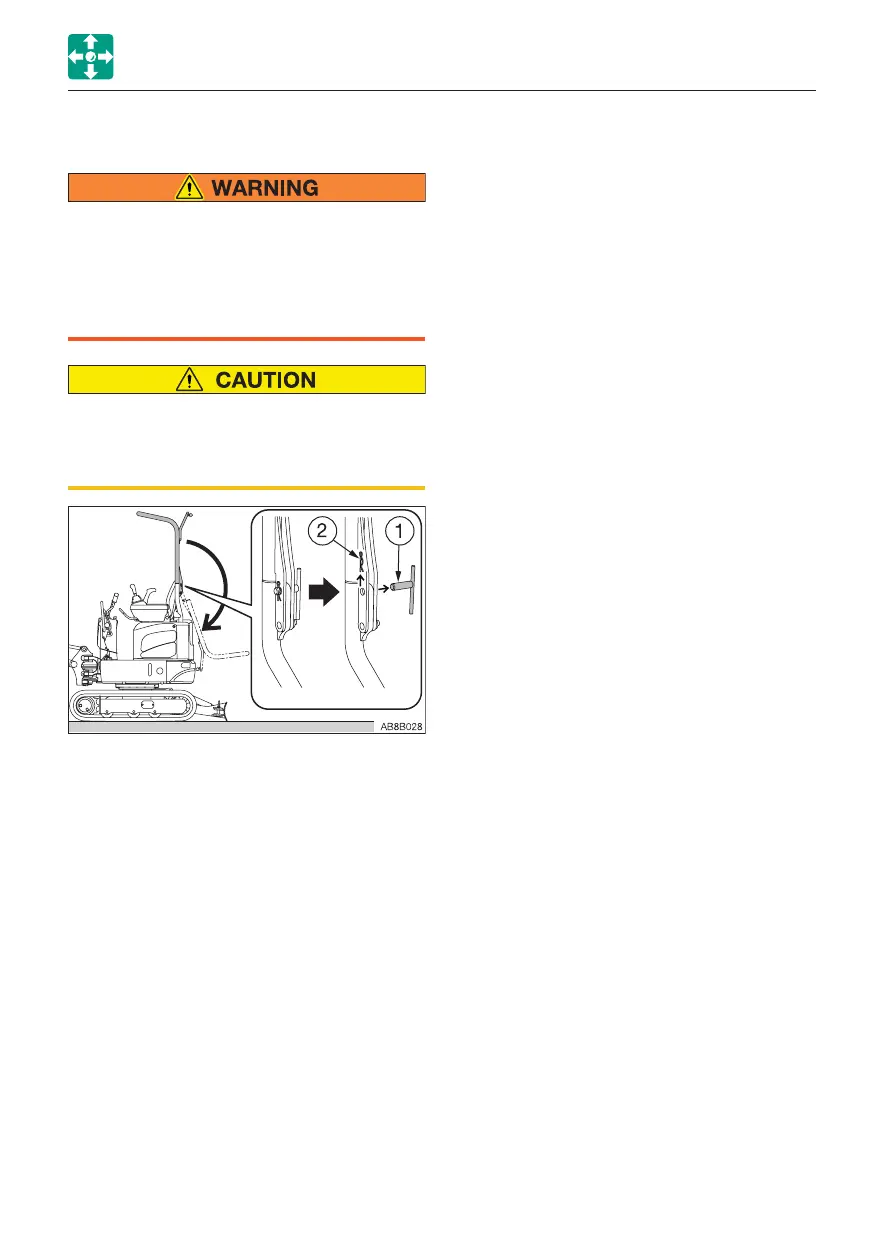

FOLDING DOWN THE CANOPY
FOLDING DOWN THE CANOPY
Do not operate the machine with the
canopy folded down.
The TOPS will not be applicable to the
machine if the canopy is folded down.
TOPS (ISO12117): Tip-over protection
structure
When folding down the upper canopy, be
sure to lower it slowly. If lowered too
rapidly, the canopy could come in contact
with your body, resulting in an injury.
1. Pull out the R-pins (2) from the lock pins
(1) on the left and right sides.
2. Pull out the lock pin (1) from one side.
3. Pull out the other side lock pin (1) while
supporting the upper canopy (15 kg/35 lb)
by hand.
4. Slowly lower the upper canopy in a
rearward direction to fold it down.
To Next Page
