CONTROLS
LEVERS AND PEDALS

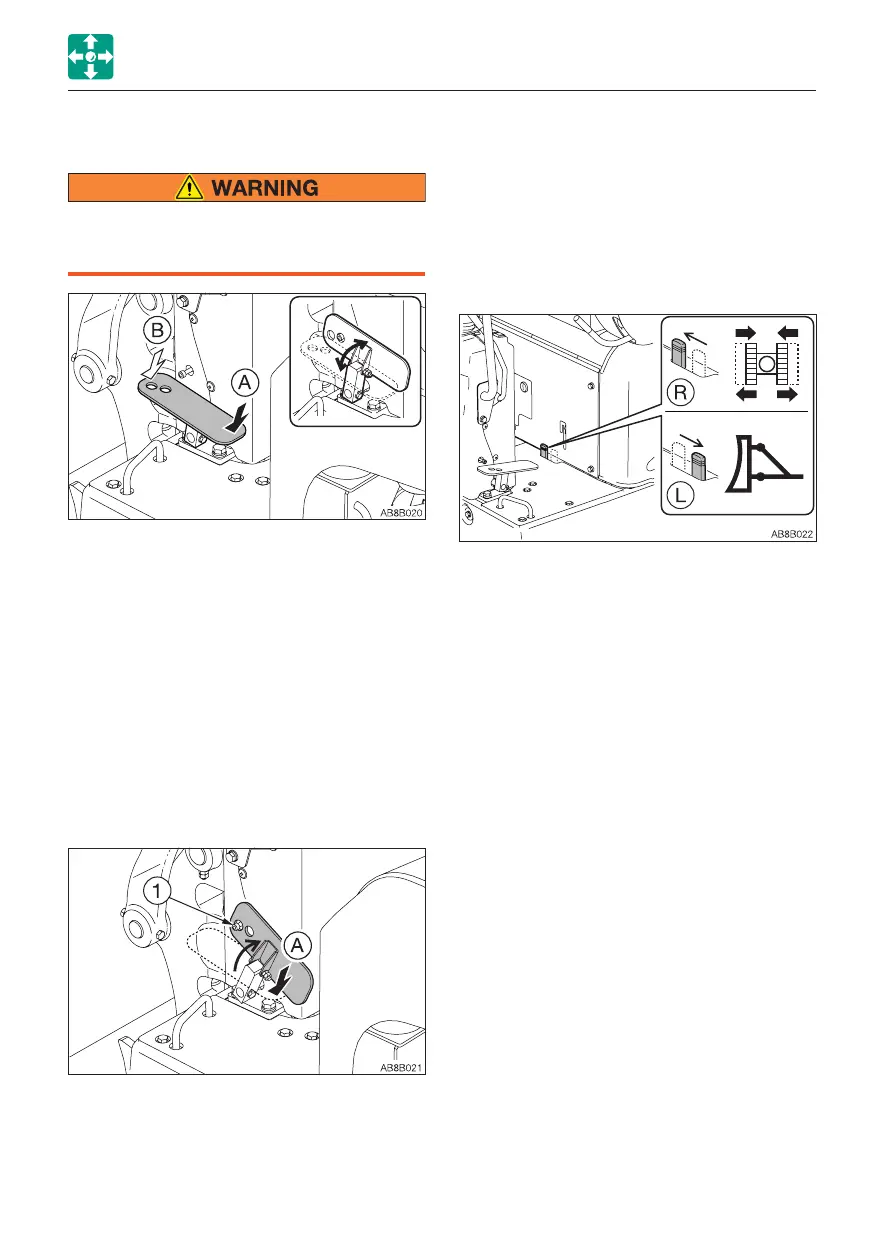

AUXILIARY HYDRAULIC PEDAL
Fold the pedal away when not in use.
Stepping on a pedal accidentally when it
is not folded away may cause accidents.
This pedal controls the flow of the oil in the
auxiliary hydraulic circuit.
(A) .......Hydraulic oil flows to left auxiliary
hose.
(B) ......Hydraulic oil flows to right auxiliary
hose.
Refer to “Auxiliary hydraulic lines” on page
2-19.
Folding the pedal
Unfold the pedal when operating the pedal.
Fold the pedal away when not being used.
Fasting the pedal
SELECTOR LEVER
This lever is used to change the crawler
width. The operation of the dozer blade
cylinder and the span cylinder is switched
with this lever.
1. To change the crawler width, first turn this
lever to the (R) position, then move the
blade lever.
· (R): Operation of spanner cylinder
· (L): Operation of blade cylinder
1. Fold the pedal away while it is being
pushed into the side (A).
2. Pass the pedal hole through the bolt (1) to
fasten the pedal.
3. Unfold the pedal to unfasten it.
The pedal can be fastened while in the
operating state. When using a hand breaker,
you can turn on or off the pedal by using the
switch on the breaker.
