3-11
OPERA
TION
4.

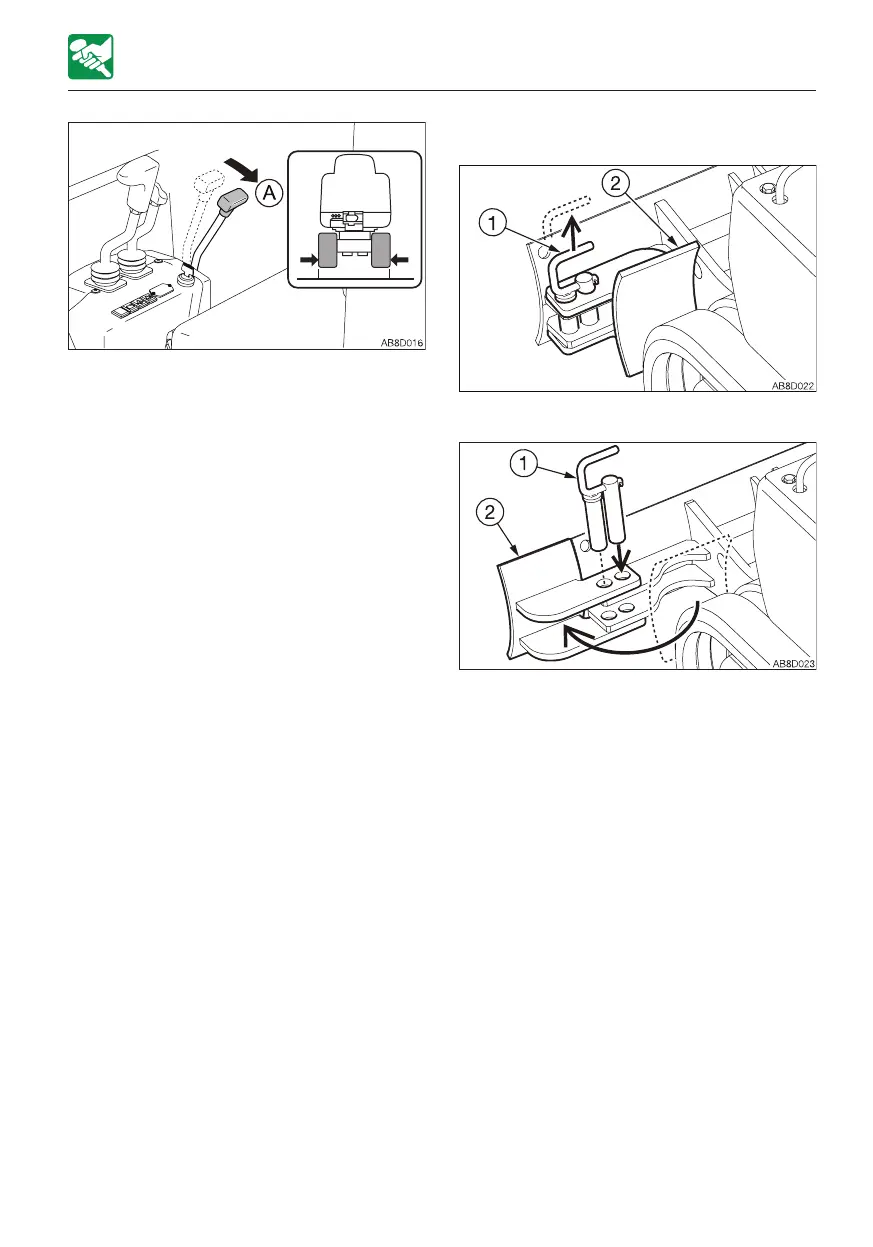

Pull the blade lever toward you (A) to
decrease the crawler width (750 mm or
29.5 in.).
OPERA
TING THE MACHINE
SWITCHING THE BLADE WIDTH
1.
Pull out the lock pin (1).
2.
Rotate the plate (2).
3.
Insert the lock pin (1) to secure the plate
(2).
80
82
