OPERATION
OPERATING THE MACHINE

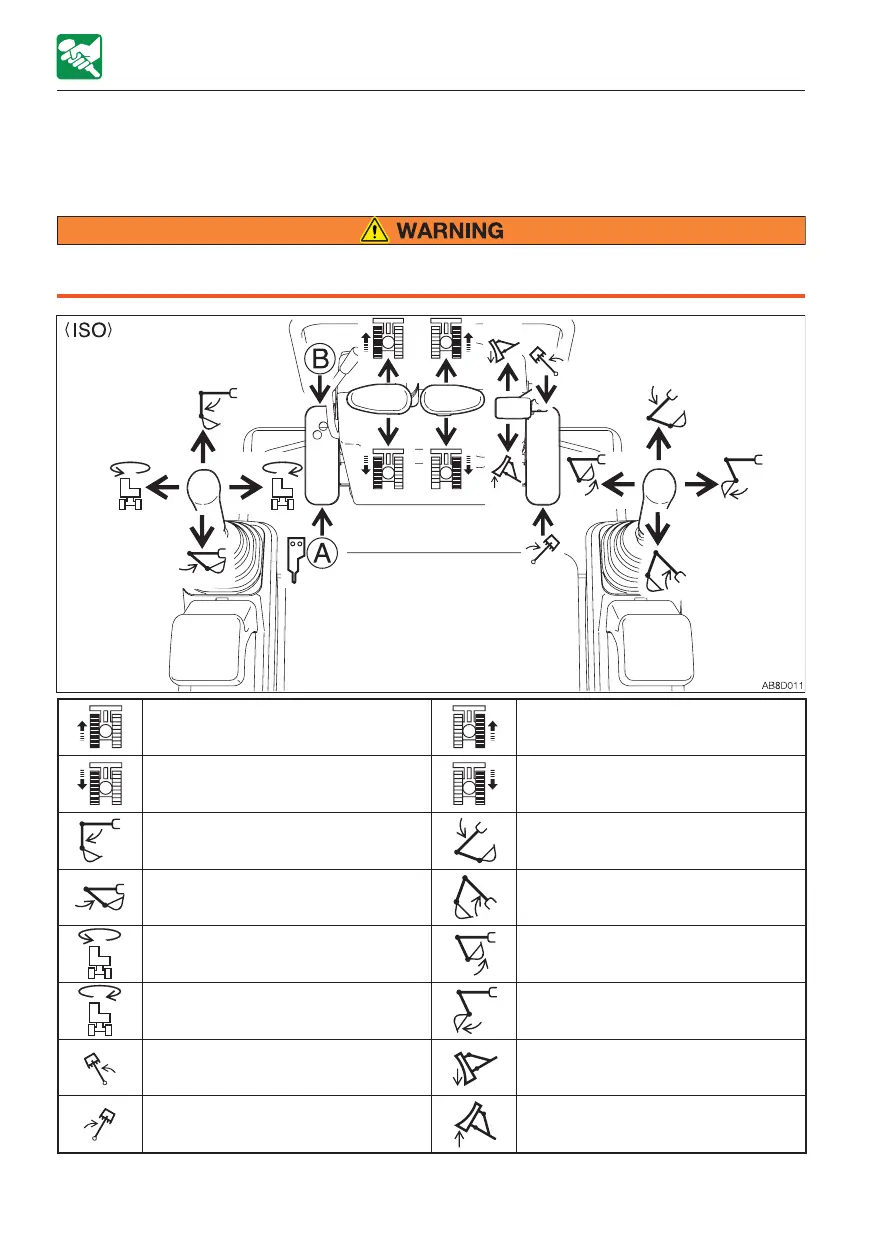

LEVER PATTERN (ISO PATTERN)
• Before starting operation, carefully check which lever pattern you are going to use.
• It is described using the ISO pattern in this manual.
OPERATING THE MACHINE
Left crawler forward Right crawler forward
Left crawler reverse Right crawler reverse
Arm out Boom lower
Arm in Boom raise
Upperstructure slew left Bucket load
Upperstructure slew right Bucket dump
Boom swing left Dozer blade lower
Boom swing right Dozer blade raise
