3-17
OPERATION

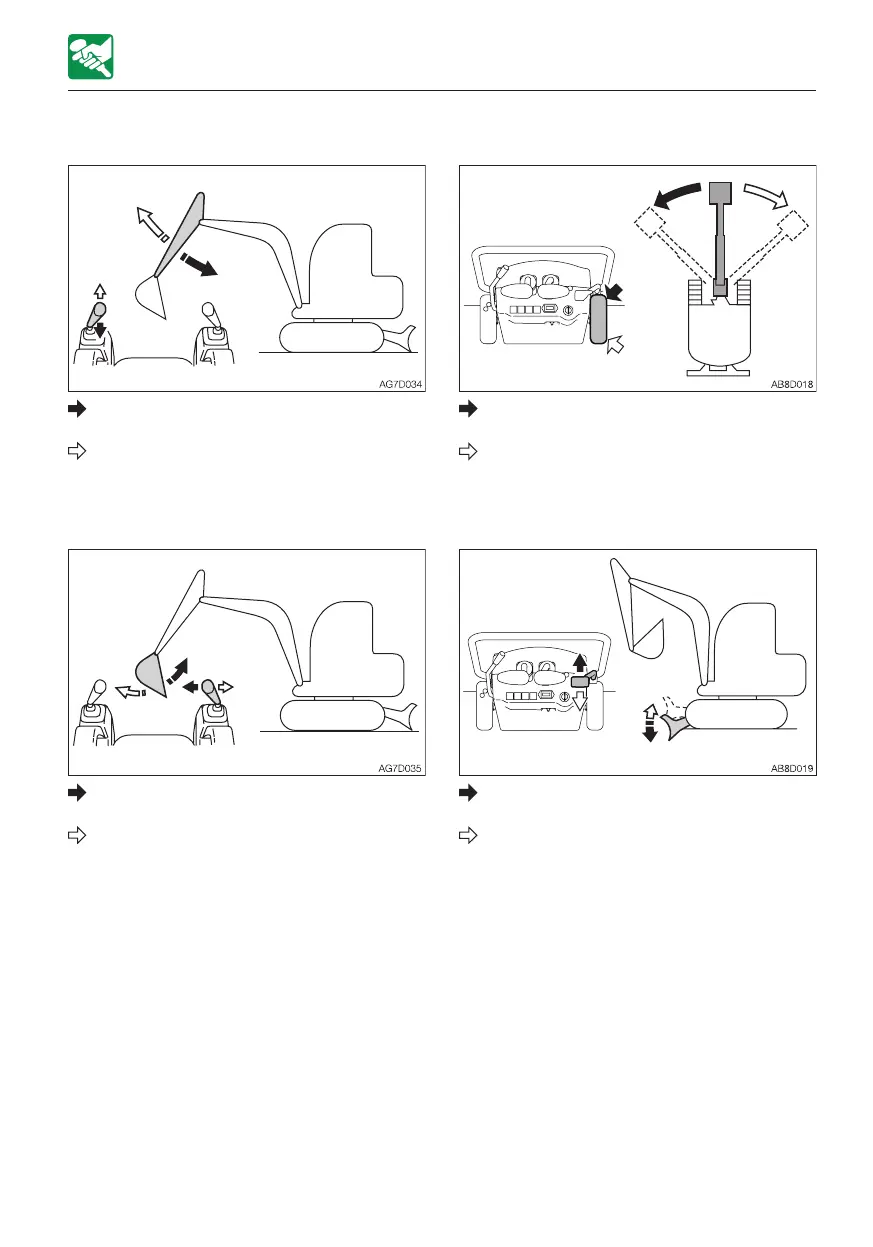

Operating the arm
OPERATING THE MACHINE
Arm in:
Tilt the left operating lever backward.
Arm out:
Tilt the left operating lever forward.
Operating the bucket
Bucket load:
Tilt the right operating lever to the left.
Bucket dump:
Tilt the right operating lever to the right.
Boom swing left:
Step on the toe side of the pedal.
Boom swing right:
Step on the heel side of the pedal.
Operating the dozer blade
Operating the boom swing
Dozer blade lower:
Tilt the lever forward.
Dozer blade raise:
Tilt the lever backward.
