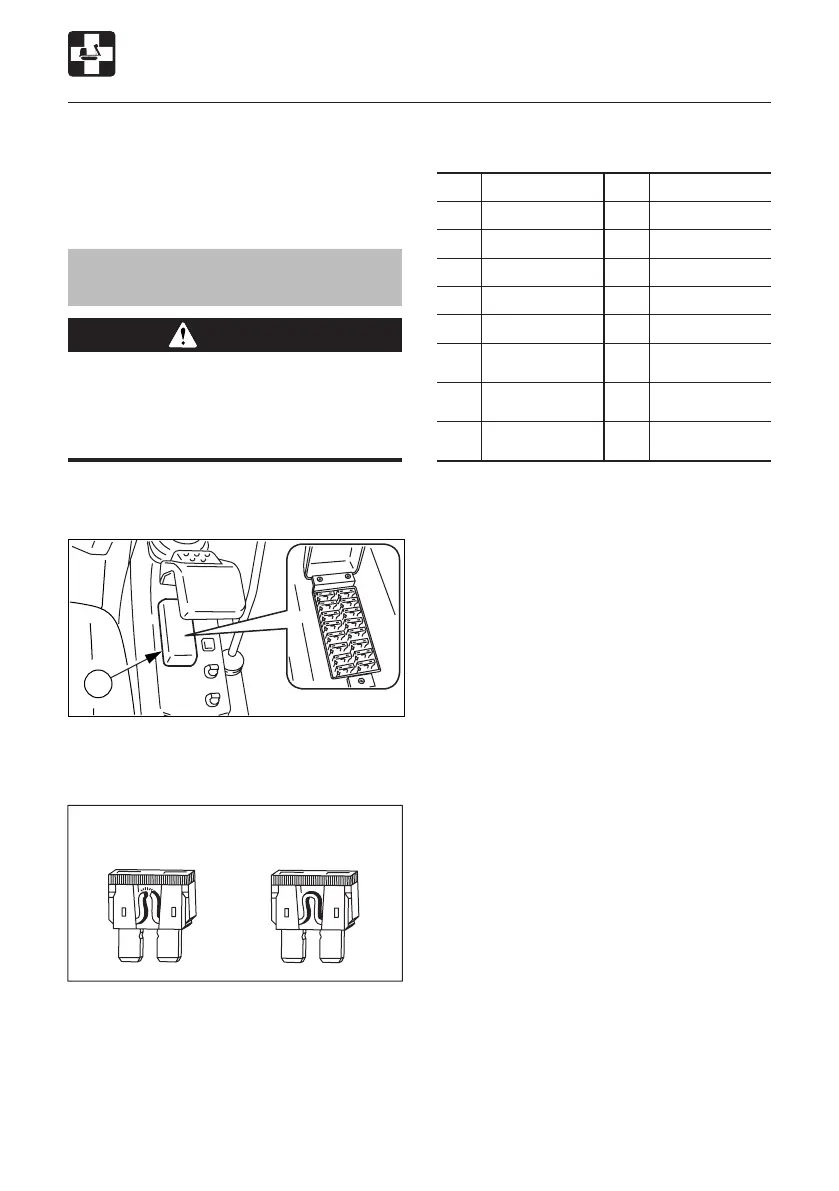

TROUBLESHOOTING
If a light does not turn on or the electric
system does not operate, a fuse may be
blown. Inspect the fuses.
Inspecting and Replacing the
Fuse
WARNING
If the fuse blows as soon as it is replaced,
there is a problem with the electric system.
Continued use may lead to fire. Consult a
Takeuchi sales or service outlet.
1. Turn the starter key to the OFF position
and stop the engine.
2. Open the fuse box cover (1).
3. Inspect for any blown fuses.
4. If a fuse is blown, replace it with a spare
fuse of the same capacity.
If a Fuse Blows
Fuse Layout and Circuits Protected
E4J007
NormalBlown
10
10
10
20
20
10
20
10
5
10
5
10
20
20
20
10
1
L3J002
Capacity Protected circuit Capacity Protected circuit
5A Fuel feed pump 20A Lights
10A Control circuit 10A Wiper motor
20A ECM 20A Air conditioner
10A Controller 10A Solenoid valve
5A Option 10A Option
10A Horn 10A
Cigarette lighter,
Radio
5A
Interior light,
Radio backup
10A Turn signal
10A Starter circuit 5A
Instrument
cluster, Lamp
