36

CONTROLS

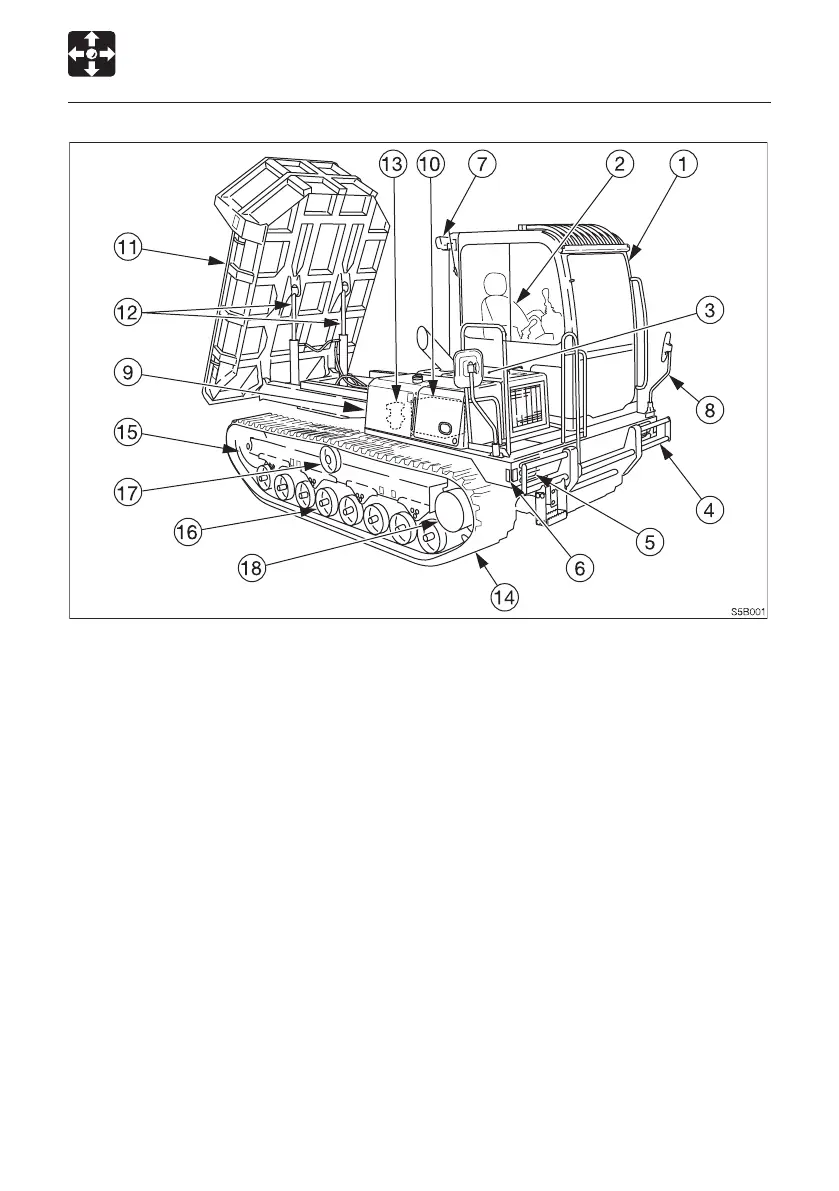

Names of Components

1. Cab

2. Seat

3. Engine hood

4. Bumper

5. Front light

6. Turn light

7. Rear light

8. Outside mirror

9. Fuel tank

10. Hydraulic tank

11. Dump body

12. Dump cylinder

13. Swing motor

14. Crawler belt

15. Idler

16. Track roller

17. Carrier roller

18. Travel motor
