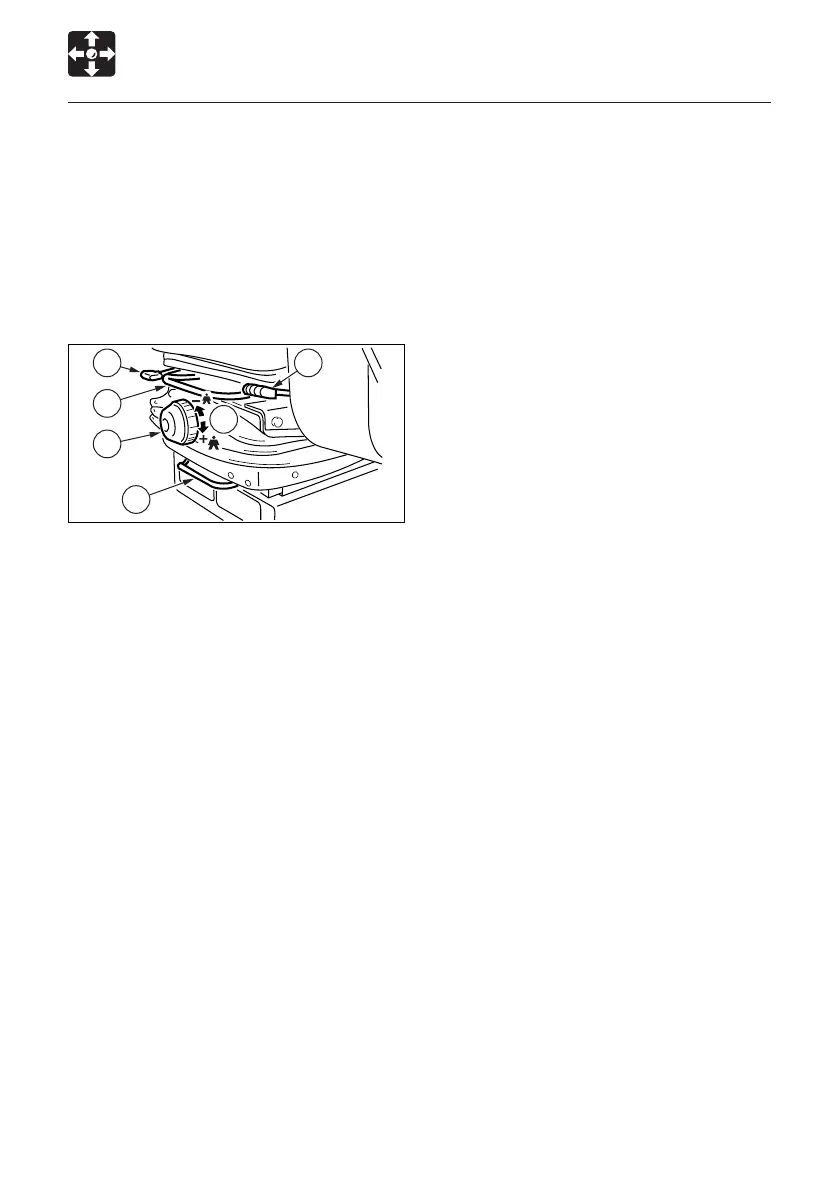

CONTROLS
Seat and Seat Belt
(D) Fore-and-aft adjustment
1. Pull on lever (4) and slide the seat backward
or forward to bring it to the optimum
position for operating the machine.
2. Release the lever (4) at the desired position
and the seat will remain fixed there.
Adjustment stroke: 17 steps,160 mm (5.9
in.)
(E) Weight adjustment
1. Turn handle (5) and set it to indicate
the weight of the person to operate the
machine.
May be set to any value from 50 to 120 kg
(110 to 265 lbs.)
(F) Lever stand adjustment
1. Pull on lever (6) and slide the lever stand
backward or forward to bring it to the
optimum position for operating the
machine.
2. Release the lever at the desired position
and the lever stand will remain fixed
there.
Adjustment stroke: 70mm (2.8 in.)
6
3
L3B013
2
5
4
E
