Tally Dascom DL-200 User Guide V1.3
19

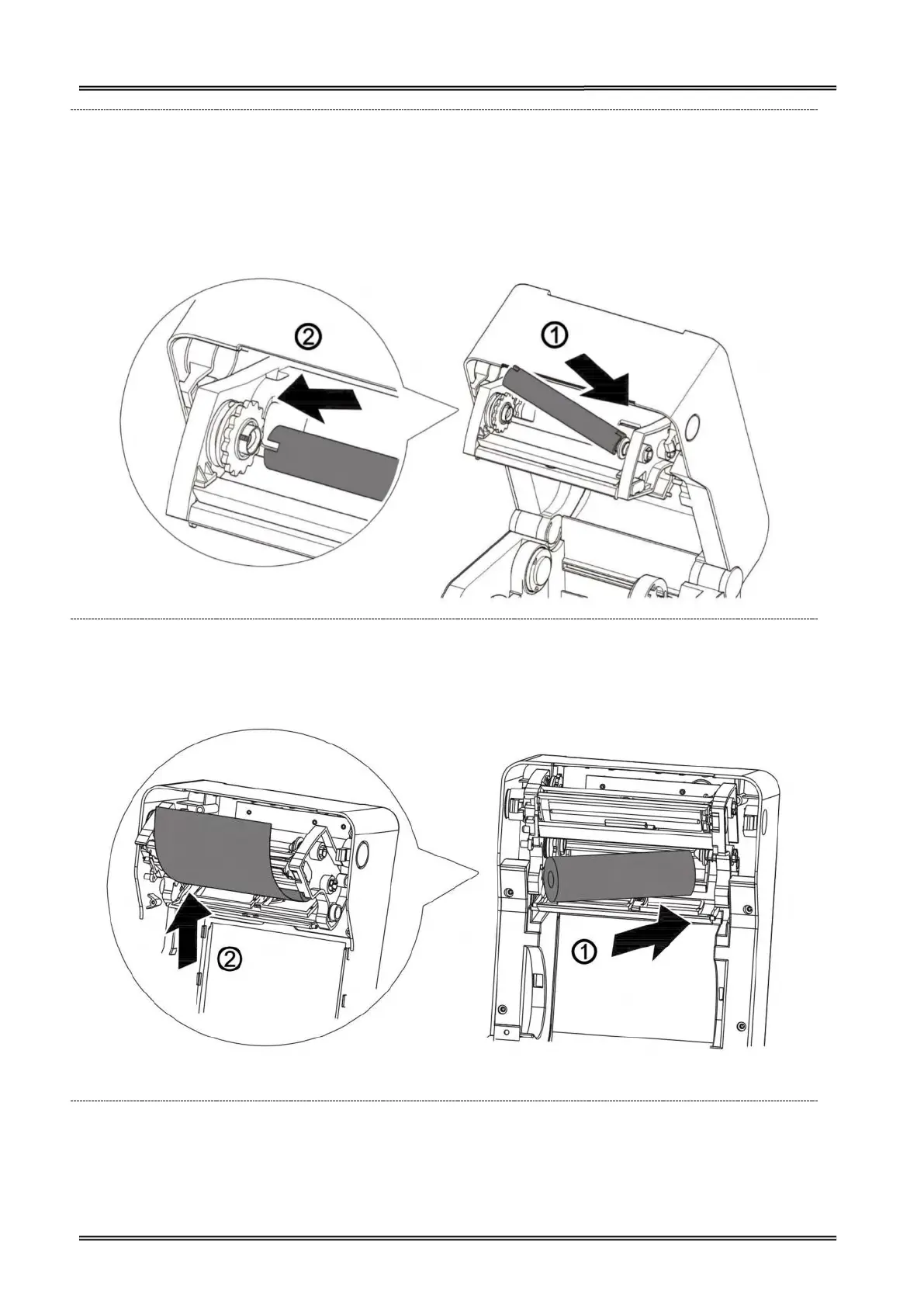

(3) Load Top Seat Ribbon:
Turn back the print head mechanism and then insert the ribbon rewind paper core into the
pick-up holder (top seat).
(4) Wind the ribbon through print head, and insert the spindle hexagon end onto the ribbon
adjustor, then insert the other end into the slot of the pick-up holder.
(5) Load Lower Seat Ribbon:
Insert the ribbon roll into the ribbon holder (lower seat of the print head mechanism): Insert the
hexagon end onto the ribbon adjustor, and then insert the other end into the slot of the ribbon
holder.
