Description of the PC Modem
Warning:
Do not stand on a carpeted floor when you handle the Modem
Board.
Walking on carpets promotes the build-up of static electricity, which
if discharged while you are handling
a circuit board, can destroy integrated
circuits
(IC’s) on the board. Touch a grounded metal object before handling
any circuit board to avoid static electricity build-up.
DIP switches
DIP switches control the Modem’s power-up condition. These switches must
be set before you install the Modem Board.

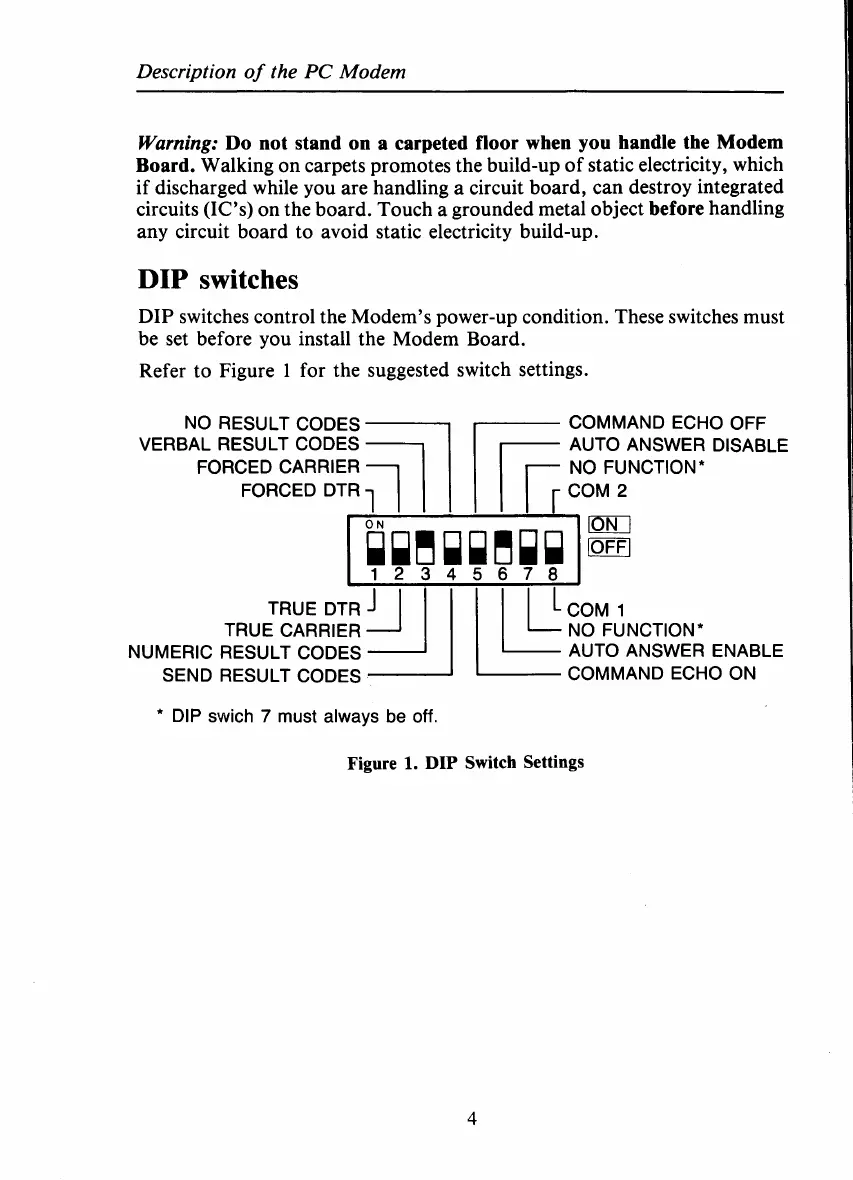

Refer to Figure
1 for the suggested switch settings.
NO RESULT CODES
VERBAL RESULT CODES
FORCED DTR
COMMAND ECHO OFF
AUTO ANSWER DISABLE
NO FUNCTION*
NO FUNCTION*
TRUECARRIER
1 1 1 FcoM’
AUTO ANSWER ENABLE
COMMAND ECHO ON
TRUE DTRg
1
NUMERIC RESULT CODES
SEND RESULT CODES
* DIP swich 7 must always be off.
Figure 1. DIP Switch Settings
4
