INSTALLATION GUIDE

K100M

Control panel for T-ONE5E gearmotor

WARNING!

Attention: This product may only be installed from professional installers. Only qualied and trained electricians may connect, programme and

service the controls.

No information given in this manual can be considered as being of interest to end users.

This manual is enclosed with control unit K100M and may therefore not be used for different products!

Important information:

Disconnect electric power to the system before making maintenance, repairs or removing covers

The K100M control unit has been designed to control a electromechanical sliding door operator.

Any other use is considered improper and is consequently forbidden by current laws.

Read all instructions carefully and completely before attempting to install and use this automatic gate operator!

INSTALLATION

Make sure the gate has been properly installed and slides freely in both directions. Repair or replace all worn or damaged gate hardware prior

to installation. A freely moving gate will require less force to operate and will enhance the performance of the operator and safety devices used

with the system.

Also check that the gate operator assembly has been installed according to the instructions.

WARNING: The automatic gate operator must be grounded - All Federal, State and local safety codes must be observed.

ATTENTION:

- do not use solid wire, use only multi threaded wire

- do not reuse pre-existing electric wire.

IF THE ABOVE INSTRUCTIONS ARE NOT FOLLOWED THE “MANUFACTURER” SHALL IN NO EVENT BE LIABLE FOR DIRECT, INDIRECT, INCI-

DENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFITS WHETHER BASED IN CONTRACT TORT OR ANY OTHER LEGAL

THEORY DURING THE COURSE OF THE WARRANTY OR AT ANY TIME THEREAFTER.

CONTROL PANEL FOR ONE 230 V AC MOTOR

 MICROPROCESSOR-CONTROLLED LOGIC

 STATUS LEDS

 LINE FUSE

 BUILT-IN FLASHING LIGHT CIRCUIT

 BUILT-IN 433.92 MHz RADIO RECEIVER

 MAX. OPERATING TIME 240”

 AUTOMATIC 50 / 60 HZ FREQUENCY DETECTION

 ADJUSTABLE SOFT-STOP

 AMPEROMETRIC OBSTACLE DETECTION

TESTING

Once the connection has been completed:

 All the green LEDs must be ON (each of them corresponds to a Normally Closed input). They will turn OFF when the controls to which they are as-

sociated are operated.

 The red opening command LEDs must be OFF (each corresponding to a Normally Open input). They will turn ON when the commands they are as-

sociated with are given; red LED DL1 must be ON steadily.

TECHNICAL CHARACTERISTICS

Power input – control board 230 V AC - 50-60 Hz

Nominal power 400 W

230 V AC Input protection fast blow fuse (F1 - 5x20) F 3,15 A

Power input – motors 230 V AC

Power input – auxiliary circuits 24 V AC

24 V AC Input (auxiliary circuits) fast blow fuse (F2 - 5x20) F 500 mA

Working temperature -20°C ÷ +55°C

Protection degree IP 44

DIAGNOSTICS LED

DL1 (RADIO CONTROLS) / RED ERROR message / PROGRAMMING of transmitters

DL2 (OPEN/CLOSE) / RED OPEN / CLOSE pushbutton activated

DL3 (PHOTO) / GREEN PHOTOCELL activated

DL4 (CLOSE LIMIT SWITCH) / GREEN CLOSING LIMIT SWITCH activated

DL5 (OPEN LIMIT SWITCH) / GREEN OPENING LIMIT SWITCH activated

DL6 (STOP) / GREEN STOP pushbutton activated

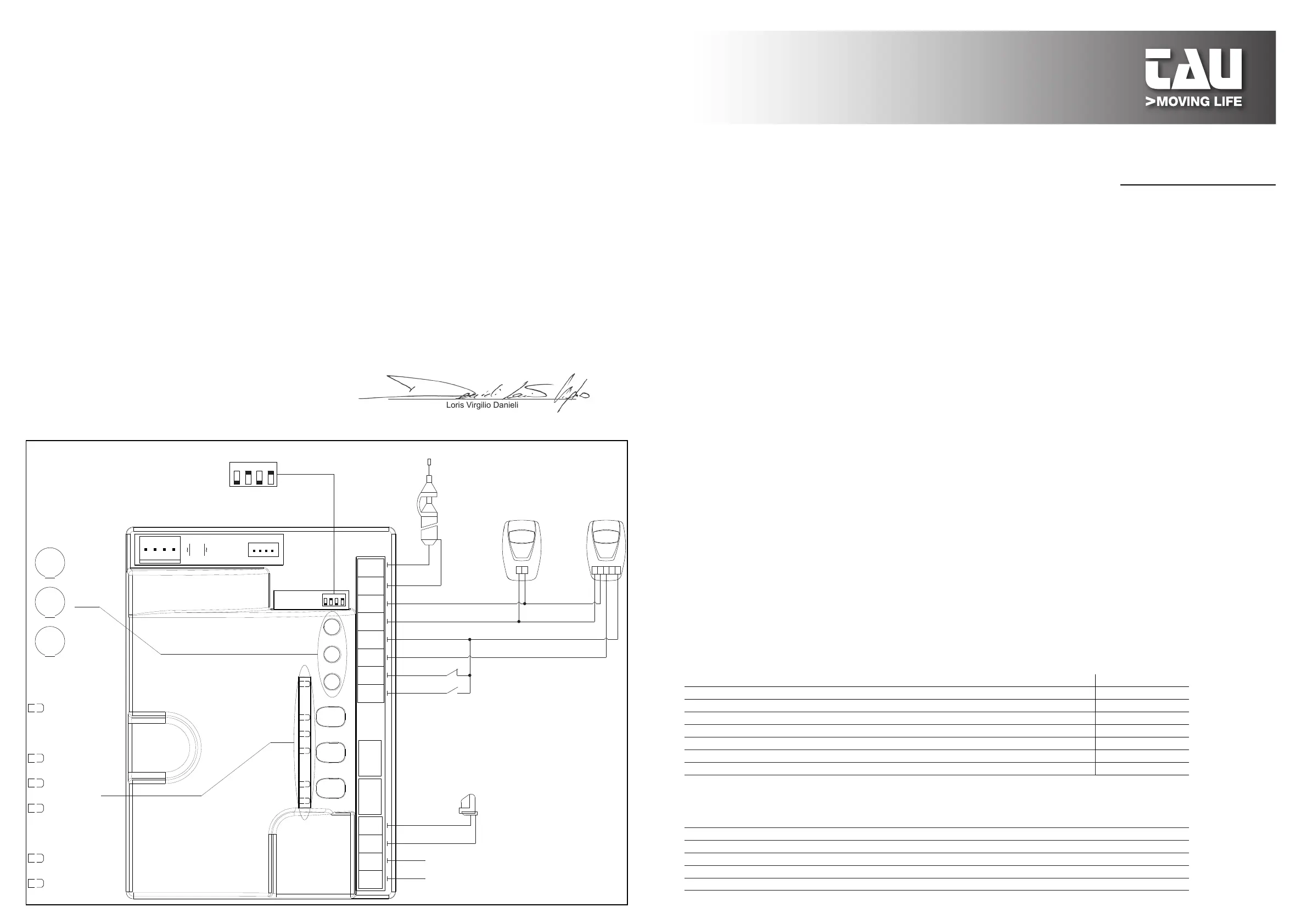

English

SENS

TCA

Neutral

230 V AC

Power supply

Phase

M-OP

CLS

OLS

COM

FS1

FS2

M-COM

M-CL

RADIO

OP/CL

RESET

DL3

DL4

DL5

DL6

DL2

DL1

1 2 3 4

Flashing

light

230 V AC

max. 50W

Open/Close

Stop

Antenna

K100M

Dip-switches

DL3

DL4

DL5

DL6

DL2

DL1


CLOSE LIMIT SWITCH

OPEN LIMIT SWITCH

STOP

OPEN/CLOSE

RADIO CONTROLS

TCA

+ -

SENS

+ -

Photocells

Common

Photocell (N.C.)

1 2 3 4 5

1 2

0 V AC

Photocell - 24 V AC

GB - Translation of original instructions

D_MNL0K100M 08-11-2016 - Rev.07

MANUFACTURER’S DECLARATION OF INCORPORATION

(in accordance with European Directive 2006/42/EC App. II.B)

Manufacturer: TAU S.r.l.

Address: Via E. Fermi, 43

36066 Sandrigo (Vi)

ITALY

Declares under its sole responsibility, that the product: Electronic control unit

designed for automatic movement of: Swing gate

for use in a: General environment

complete with: Radioreceiver

Model: K100M

Type: K100M

Serial number: see silver label

Commercial name: Control panel for T-ONE5E gearmotor

Has been produced for incorporation on an access point (swing gate) of for assembly with other devices used to move such an access point, to constitute a machine

in accordance with the Machinery Directive 2006/42/EC.

Also declares that this product complies with the essential safety requirements of the following EEC directives:

- 2006/95/EC Low Voltage Directive

- 2004/108/EC Electromagnetic Compatibility Directive

and, where required, with the Directive:

- 1999/5/CE Radio equipment and telecommunications terminal equipment

Also declares that it is not permitted to start up the machine until the machine in which it is incorporated or of which it will be a component has been identied

with the relative declaration of conformity with the provisions of Directive 2006/42/EC.

The manufacturer undertakes to provide, on sufciently motivated request by national authorities, all information pertinent to the quasi-machinery.

Sandrigo, 08/11/2016

Legal Representative

_________________________________________

Loris Virgilio Danieli

Name and address of person authorised to draw up all pertinent technical documentation:

Loris Virgilio Danieli - via E. Fermi, 43 - 36066 Sandrigo (Vi) Italy
