FRONT AXLE DISASSEMBLY
Disassembling and reassembling involves removing and replacing the left and right steering knuckles
and king pin bushings. Refer to the following sections for information regarding these procedures:
Replace the Steering Knuckle
Replace the King Pins and Bushings
NOTE: The front axle does not have to be removed unless the axle beam
must be replaced. Refer to Front Axle Removal and
Installation for information regarding removing the front axle.

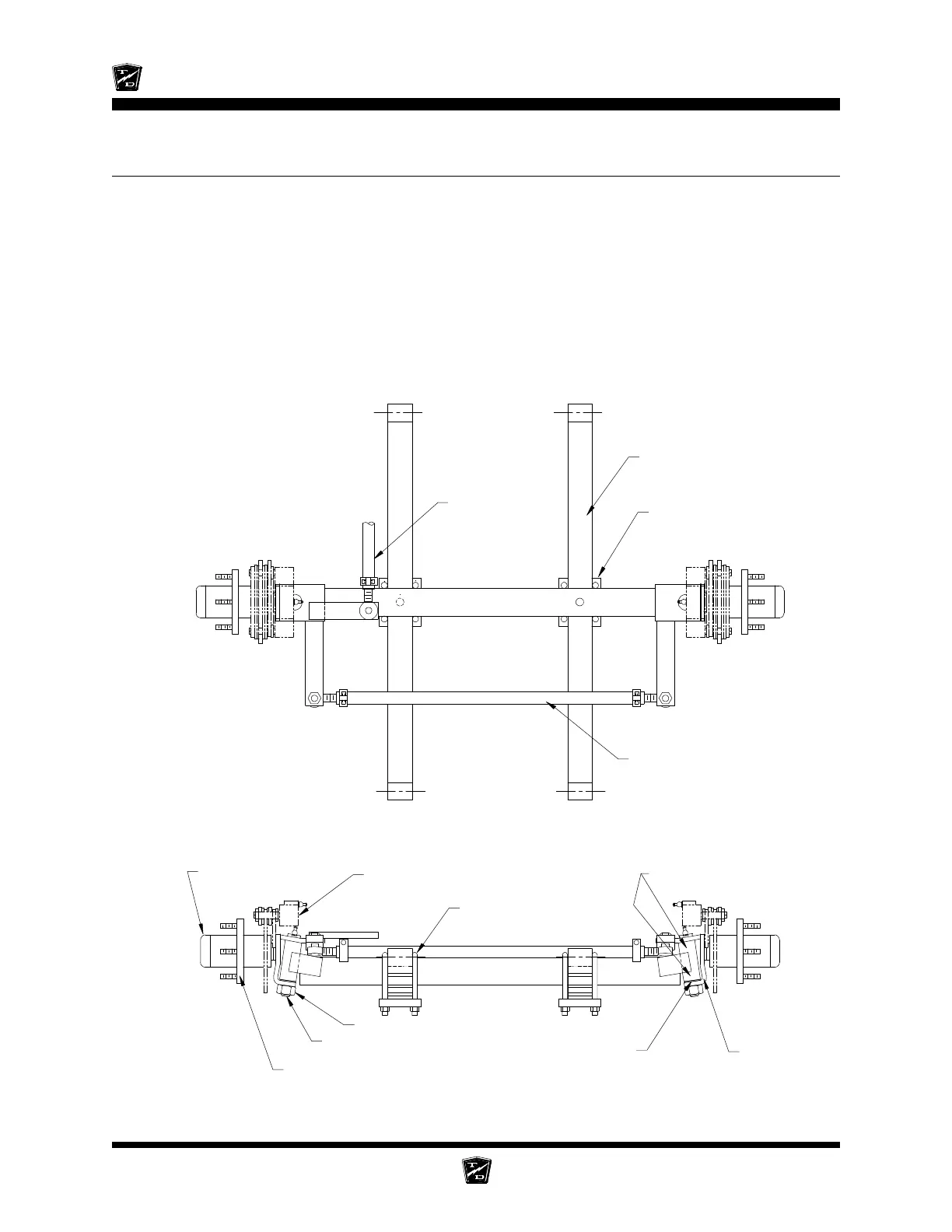

King Pin
Locknut
Dust Cap
Hub
Disc Brake Assembly (optional)
Yoke
Steering Adjustment Sleeve
Drag Link
Leaf Spring
Spring Plate
U-Bolt
Thrust Washers
Bushings Inside
Sleeve
