Maintenance, Service, and Repair
Brakes Page 9
Clevis
Jam nut
Nut
Return spring bracket
Cross shaft
Clevis pin
Jam nut
Clevis pin
Park brake handle linkage
Bushing
Clevis
Cotter pin
Park brake handle
Clevis pin
Equalizer
Return spring
Cotter pin
Primary adjustment rod
Collar
Cotter pin
Bolt

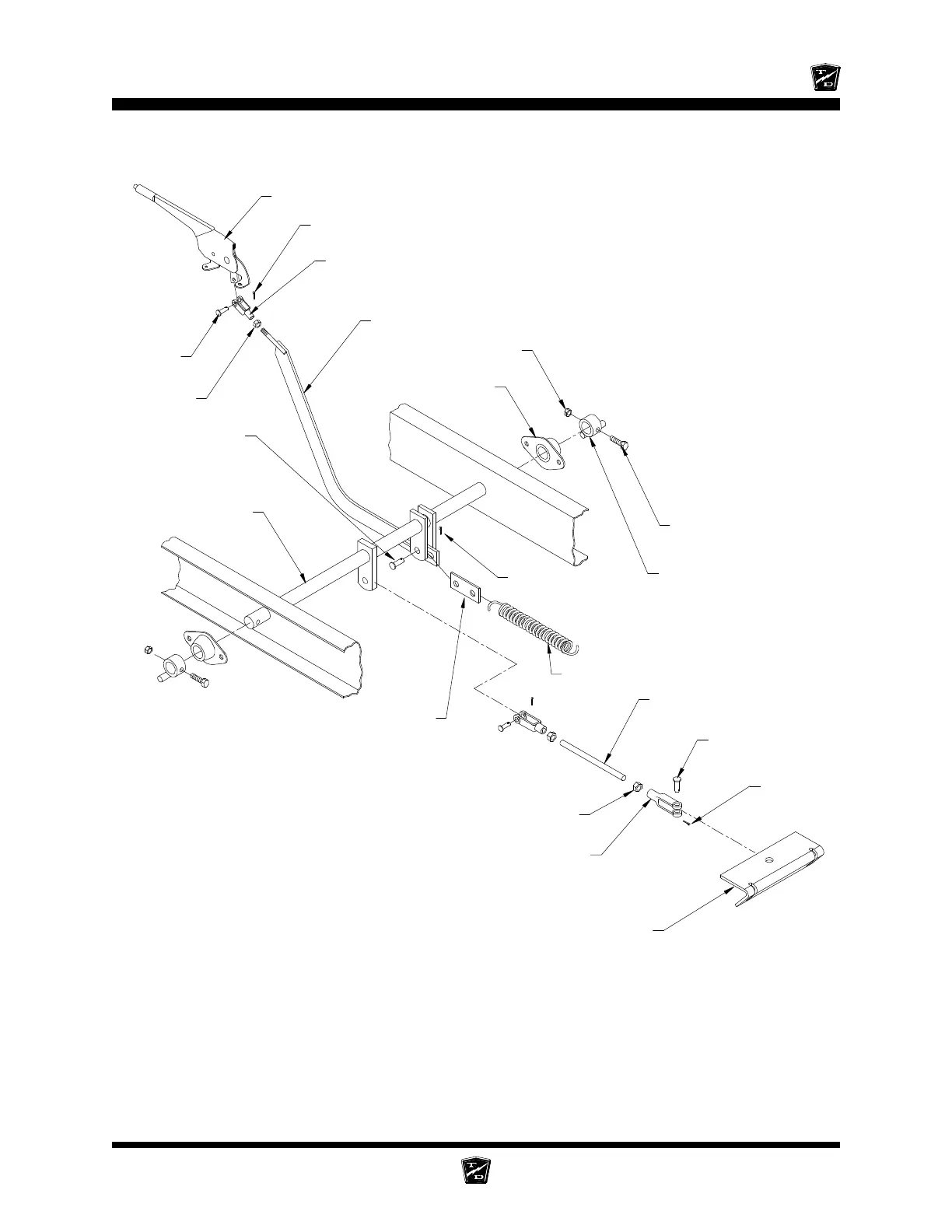

Park Brake Linkage, B 210
