Taylor-Dunn MX-016-00 - Lubrication Chart

Maintenance, Service and Repair
Maintenance Page 5

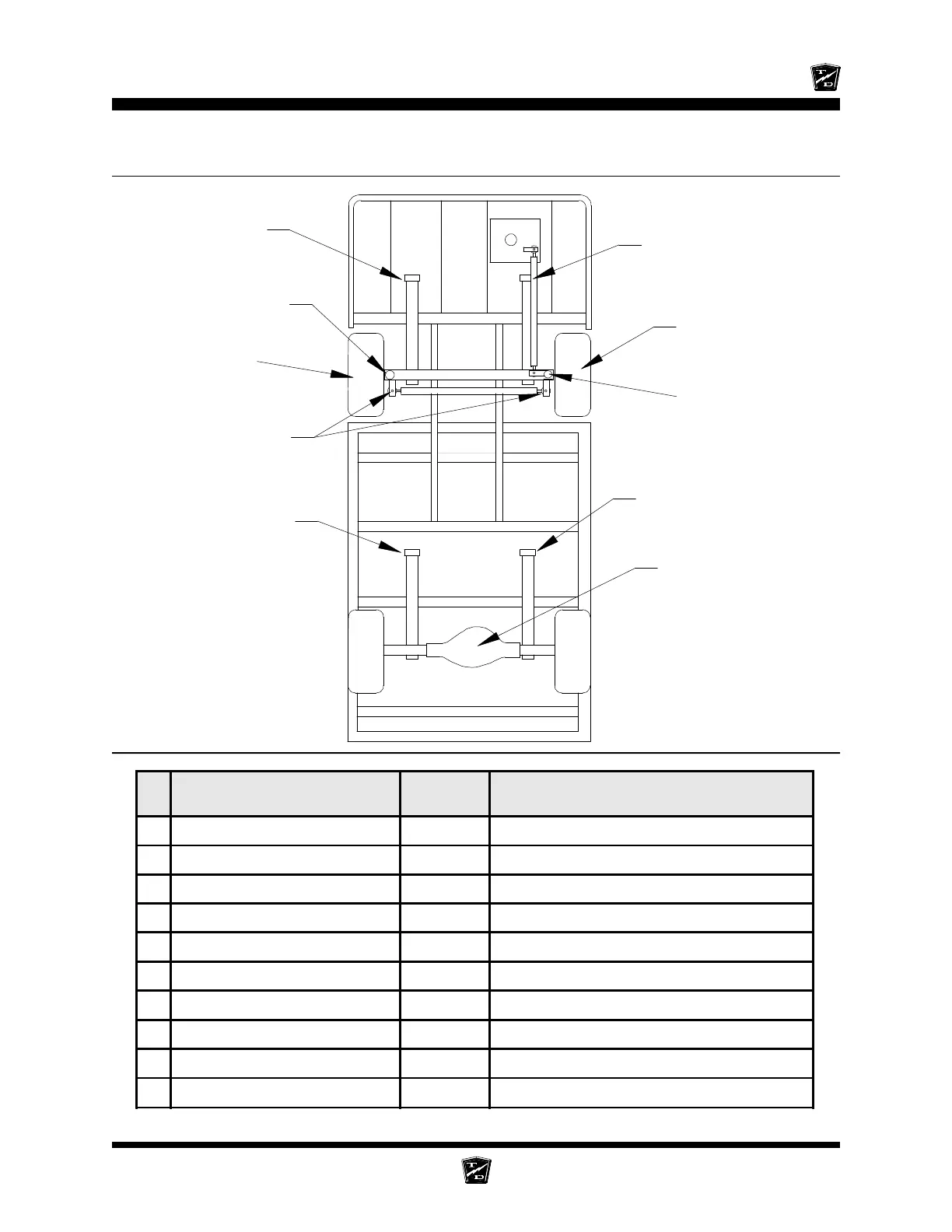

LUBRICATION CHART
# Description Locations Lubricant Type
1 Front Leaf Springs General Purpose Grease
2 King Pin General Purpose Grease
3 Ball Joints General Purpose Grease
5 Front Wheel Bearings High Temperature Wheel Bearing Grease
6 Rear Leaf Springs General Purpose Grease
9 Drive Fill Plug 11 oz. 30 wt Motor Oil
1
1
2
2
3
5
5
6
6
9
