Taylor 750 Operator's Manual

OPERATOR PARTS IDENTIFICATION
4-3

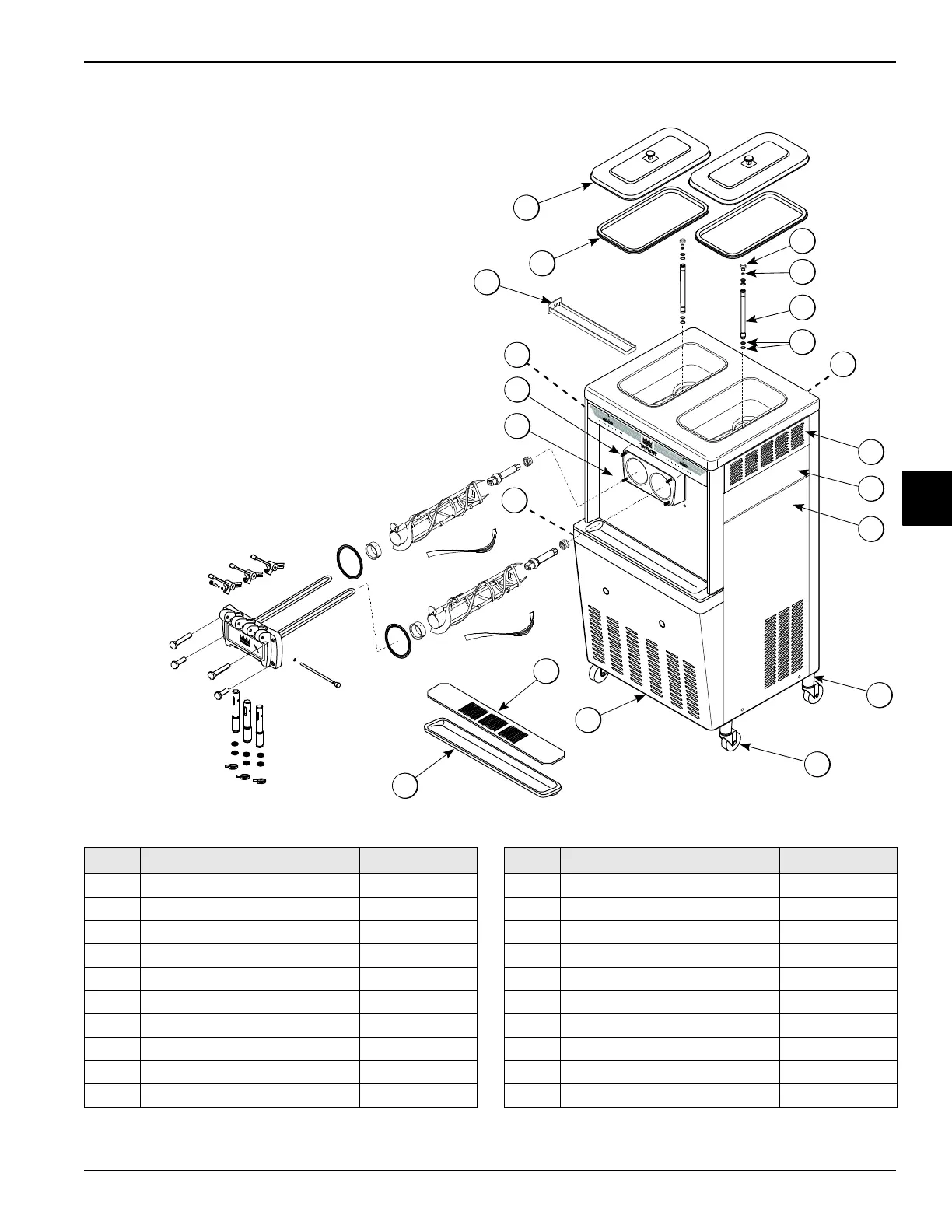

Models 750, 751, 754, 774, 791, and 794
Operator Parts Identification
4
Model 754
Figure 4-3
12
18
19
8
9
13
10
6
5
4
11
2
1
15
3
16
17
7
20
14
Item Description Part No.
1 Cover A.-Hopper X38458-SER
2 Gasket-Hopper Cover 038474
3 Tube A.-Feed X29429-2
4 Panel-Rear 053782
5 Panel-Upper Side Right 028823
6 Panel A.-Side Lower Right X46448-SER
7 Panel-Service 046584
8 Shield-Splash 022766
9 Tray-Drip 014533
10 Caster-Swivel 018794
Item Description Part No.
11 Panel-Upper Side Left 028822
12 Stud-Nose Cone 022822
13 Panel A.-Side Lower Left X46447-SER
14 Louver-Side-Top 051191
15 O-ring-.643 OD x .077 W 018572
16 O-ring-3/8 OD x .070 W 016137
17 Orifice 022465-100
18 Pan-Drip 17-1/4” Long 027504
19 Panel A.-Front X32956
20 Adaptor A.-Caster X18915
