Taylor 750 Operator's Manual

5-2
USER INTERFACE
Models 750, 751, 754, 774, 791, and 794
User Interface
5

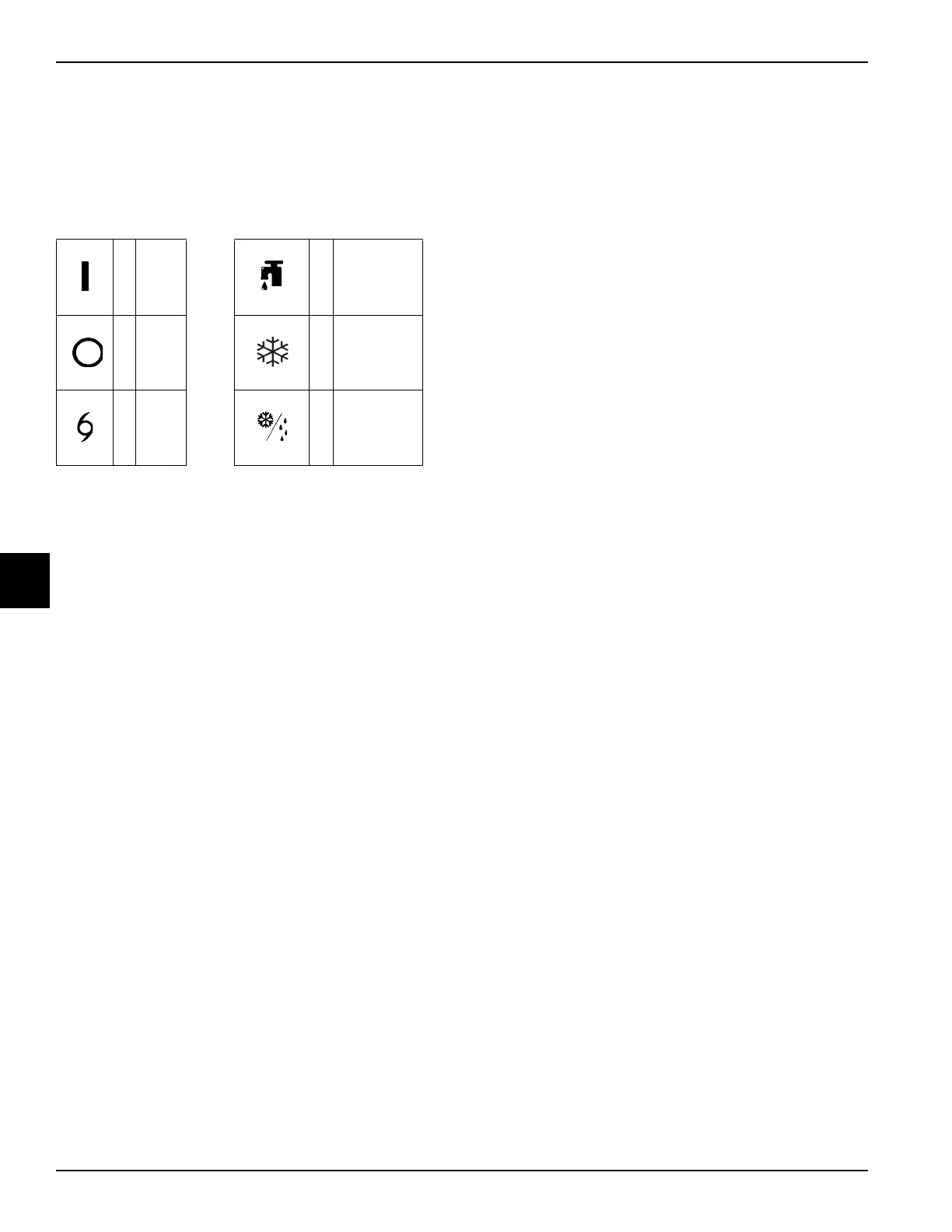

Symbol Definitions
To better communicate in the international arena, the
words on many of our operator switches and buttons
have been replaced with symbols to indicate their
functions. Your Taylor machine is designed with the
following international symbols.
T
Power Switch
When placed in the ON position, the power switch allows
Softech™ control panel operation.
MIX LOW Indicator Light
Located on the front of the machine is a mix level
indicating light. When the light is flashing, it indicates that
the mix hopper has a low supply of mix and should be
refilled as soon as possible. Always maintain at least 3 in.
(7.6 cm) of mix in the hopper. If you neglect to add mix, a
freeze-up may occur. This will cause eventual damage to
the beater, blades, driveshaft, and freezer door.
MIX Refrigeration Button
When the MIX refrigeration button is pressed, the light
comes on, indicating the mix hopper refrigeration system
is operating. For Models 754, 774, 791, and 794, the Mix
refrigeration is controlled by the left side of the freezer as
viewed from the operator end. The Mix refrigeration
function cannot be canceled unless the Auto or Standby
modes are canceled first.
STANDBY Button
The separate hopper refrigeration (SHR) system and the
cylinder temperature retention (CTR) system are
standard features on these machines. The SHR
incorporates the use of a separate small refrigeration
system to maintain the mix in the hopper below 40°F
(4.4°C) to ensure bacteria control. The CTR system
works with the SHR system to maintain a good quality
product. During long no sale periods, it is necessary to
warm the product in the freezing cylinder to
approximately 35°F to 40°F (1.7°C to 4.4°C) to prevent
overbeating and product breakdown.
To activate the SHR and CTR, press the STANDBY
button. Remove the air orifice and place the air tube (end
without the hole) into the mix inlet hole.
Important! Make sure the level of mix in the hopper is
below the mix delivery hole in the feed tube. Failure to
follow this instruction may result in lower product quality
when normal operation is resumed.
When the Standby button is pressed, the light comes on,
indicating the CTR system has been activated. In the
Standby mode, the Wash and Auto functions are
automatically canceled. The Mix refrigeration function is
automatically locked in to maintain the mix in the hopper.
To resume normal operation, press the AUTO button.
When the machine cycles off, the product in the freezing
cylinder will be at serving viscosity. At this time, place the
air tube (end with the hole) into the mix inlet hole and
install the air orifice.
WASH Button
When the WASH button is pressed, the light comes on.
This indicates beater motor operation. The Standby or
Auto modes must be canceled first to activate the Wash
mode.
= ON = WASH
=OFF =AUTO
= MIX = STANDBY
