Taylor 8754 User Manual

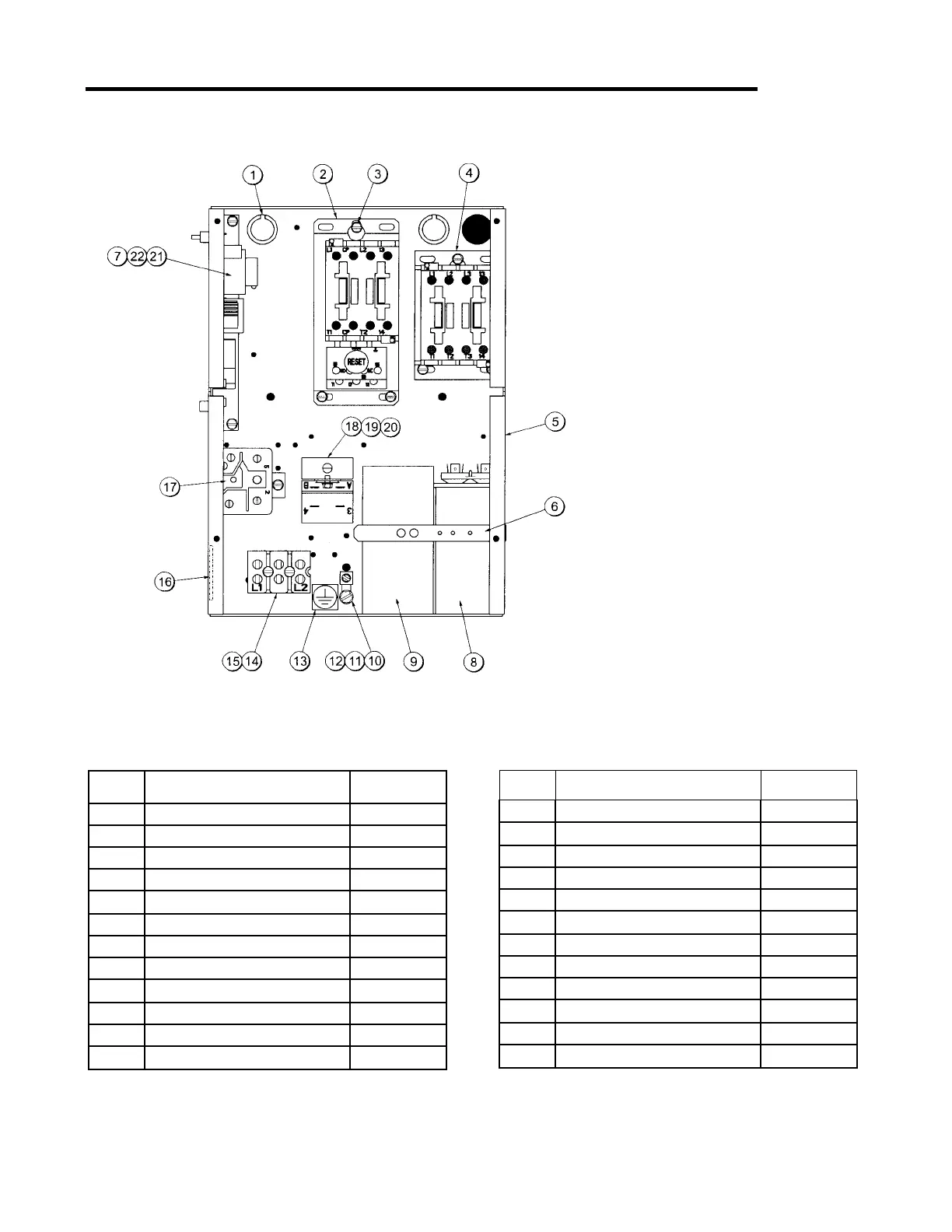

Control A. - X48236-27A (Model 794)
208-230/60/1
ITEM DESCRIPTION PART NO.
1 BUSHING-SPLIT 43/64 ID 027691
2 STARTER-1 PHASE-4.5- 7 A 041950 7K -2
3 SCREW-8X1/4 SL HEX HD 009894
4 RELAY-3 POLE-20A-208/240 012725-33
5 BOX-CONTROL 048335
6 STRAP-CAPACITOR 7-11/3 2 037890
7 BRACKET-POWER BOARD 042751
8 CAPACITOR-RUN 35UF/440V 048132
9 CAPACITOR-START 135-155 036048
10 LUG-GROUNDING 020928
11 SCREW-10-32X1/2 MF HEX 020982
12 NUT-10-32 MF LOCK 020983
ITEM DESCRIPTION PART NO.
13 LABEL-GROUNDING 017669
14 SCREW-8 X 1-1/4RDHD 039420
15 BLOCK-TERMINAL 2P-L1, L2 039422
16 LABEL-COPPER COND . 025948
17 RELAY-START-COMP. 036047
18 RELAY-SPDT 30 A-240 V 032607-27
19 SCREW-6-32 X 3/8 BIN. HD 002201
20 BRACKET-RELAY 048304
21 BOARD-POWER-GEN 1 &2 X32326-SER
*21a FUSE-SLO BLO 051272
22 SCREW-6-32 X 5/8 HEX 041363
*23 CABLE-RIBBON-PWR/RELAY 032445
*NOT SHOWN
