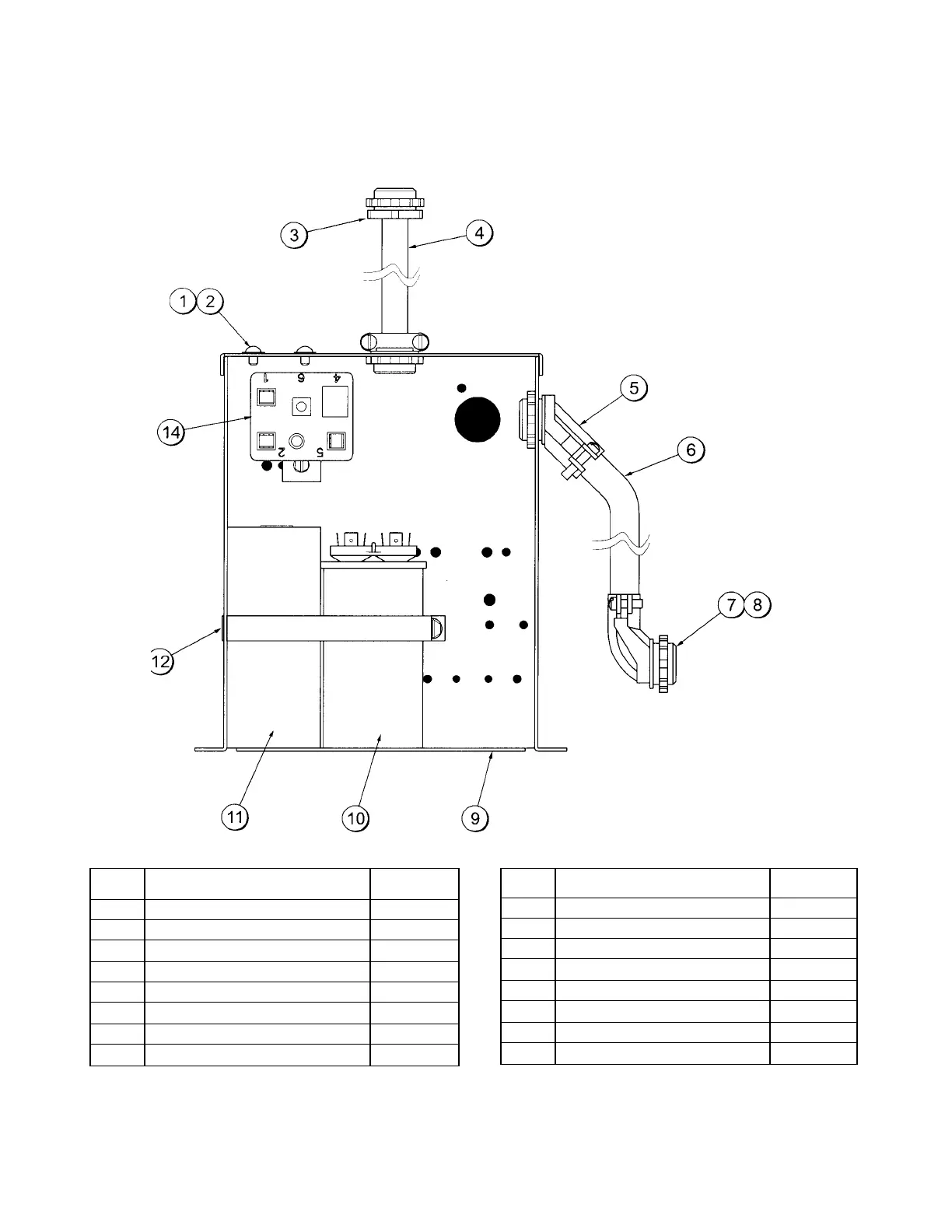

Box A.-Cap & Relay - X52665-27 (Model 339)
208-230/60/1
ITEM DESCRIPTION PART NO.
1 SCREW-8-32 X 1/4 RHM-BR 000953
2 WASHER-#8 SHAKEPROOF 000964
3 CONNECTOR-BX 3/8 STR 001791
4 GREENFIELD-3/8 020495-
5 CONNECTOR-BX 3/8 45D 010687
6 SLEEVE-WIRE 1/2 ID X.031 022175-
7 CONNECTOR-BX 3/8 90D 001793
8 BUSHING-ANTI-SHORT 3/8 019117
ITEM DESCRIPTION PART NO.
9 BOX-CAPACITOR RELAY 030183
10 CAPACITOR-RUN- 35 UF/370V 029439
11 CAPACITOR-START-189-227 033044-1
12 SCREW-10 X 3/8 TYPE B-HEX 015582
13 STRAP-CAPACITOR 5-5/8 IN. 030258
14 RELAY-START-COMP. 052401-27
* COVER-CAP.RELAY BOX 030315
* LABEL-WIRING SINGLE PH 036880-2
*NOTSHOWN
