OPERATOR PARTS IDENTIFICATION
4-3
Model 8756
Operator Parts Identification
4

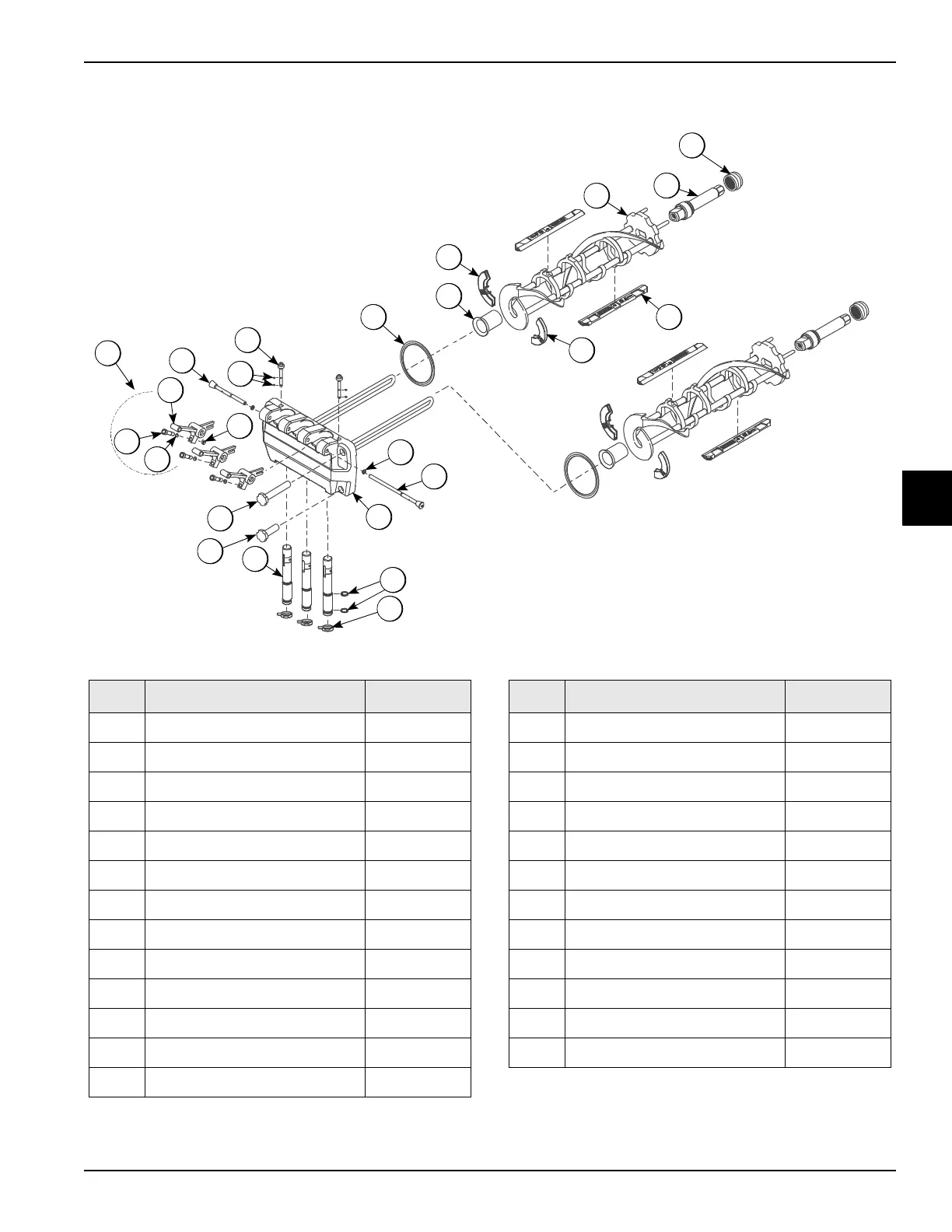

Beater Door Assembly
Figure 4-2
1
3
4
5
6b
6a
7
8
10
6b
12
11
14
15
16
17
18
1b
1a
1c
13
2
1d
9
Item Description Part No.
1 Handle A.-Draw ADJ X55096
1a Handle-Adjustable 028804
1b Screw-Adjustment 055092
1c O-ring-1/4 OD X .070W 50 015872
1d Nut-5/16-24 Finished Hex 029639-BLK
2 Rod A.-Pivot-Short X22388
3 O-ring-3/8 OD X .070W 016137
4 Plug-Prime 028805
5 Gasket-Door HT 4"-Double 048926
6 Kit A.-Beater-Front Shoes X50350
6a Shoe-Front Helix-Rear 050346
6b Bearing-Front-Shoe 050348
6c Shoe-Front Helix-Front 050347
Item Description Part No.
7 Beater A.-3.4 qt-1 Pin X46231
8 Shaft-Beater 032564
9 Seal-Driveshaft 032560
10 Blade-Scraper-Plastic 084350
11 O-ring-5/16 OD X .070W 016272
12 Rod A.-Pivot-Long X22387
13 Door A.-3 Spout X51532-12
14 O-ring-7/8 OD X .103W 014402
15 Cap-Design-1.010" ID-6 Point 014218
16 Valve A.-Draw X18303
17 Nut-Stud-Short 034383
18 Nut-Stud-Long 034382
