OPERATOR PARTS IDENTIFICATION
Model 8756
Operator Parts Identification
4
Air/Mix Pump Assembly

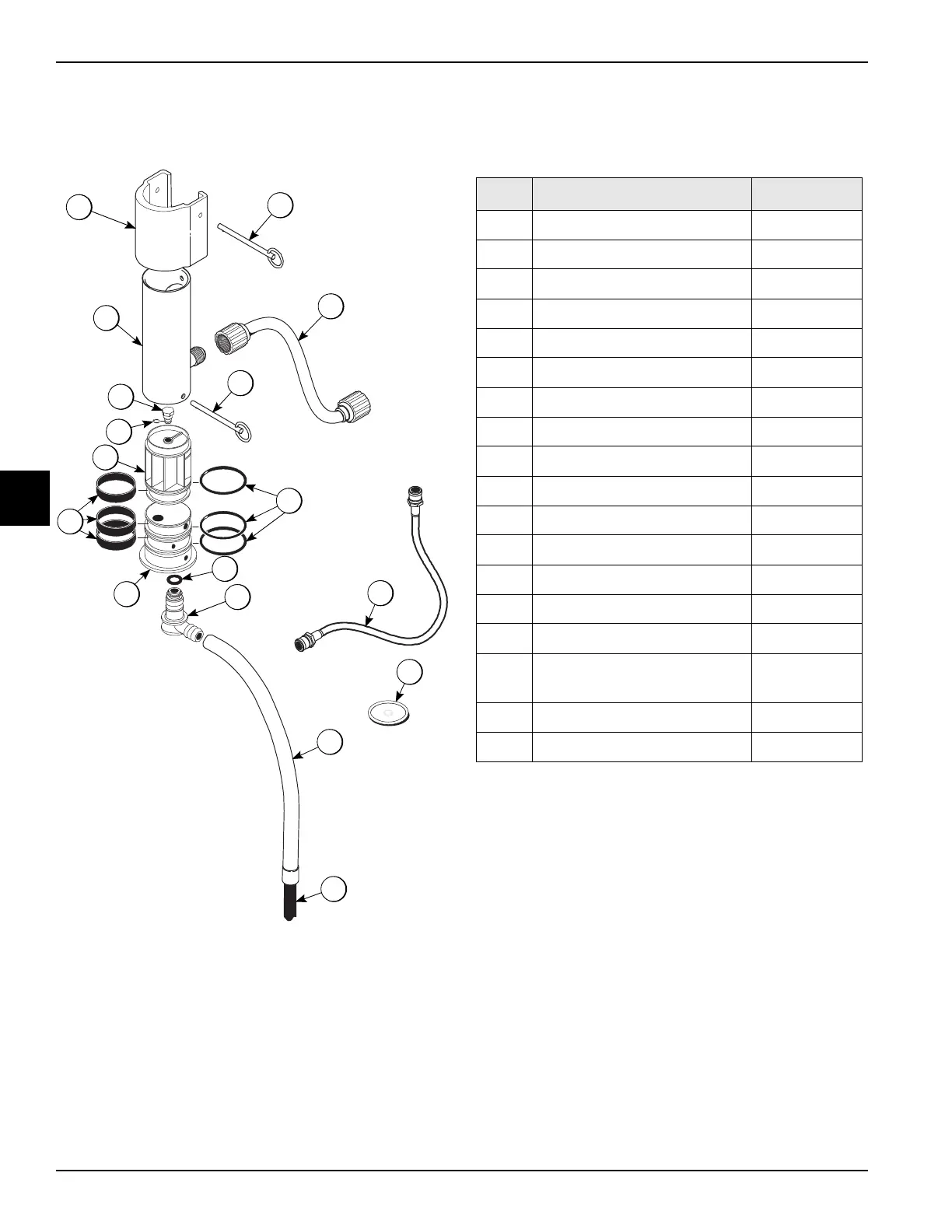

Figure 4-3
*Includes Items 3a-3h
1
6
3a
4
3b
5
3c
3e
7
3g
3h
8
9
3f
3d
10
2
Item Description Part No.
1 Cap-Pump 021276-9
2 Pin-Retaining 021276-8
*3 Pump A.-Soft Serve Complete X22345
3a Cylinder A.-Pump 022345-1
3b Pin-Retaining 021276-8
3c Piston 021276-2
3d Ring-Check 2” OD x 1/2 020050
3e O-ring 2-1/8 OD x .139 W 020051
3f Body A.-Valve X22345-3
3g O-ring - 13/16 OD x .139 W 021278
3h Elbow-Inlet 90 Degree 022502-4
4 Orifice 023425-50
5 O-ring - 3/8 OD x .070 W 016137
6 Line A.-Flare 038299
7 Line A.-Pump Pressure X27139
8 Diaphragm-Pressure
Switch
020249
9 Tube-Vinyl 5/8 ID X 1/8 Wall 020945-18
10 Counterweight-Suction Tube 020452
