Taylor C152 - Model C161 Parts Diagram and List

4-2

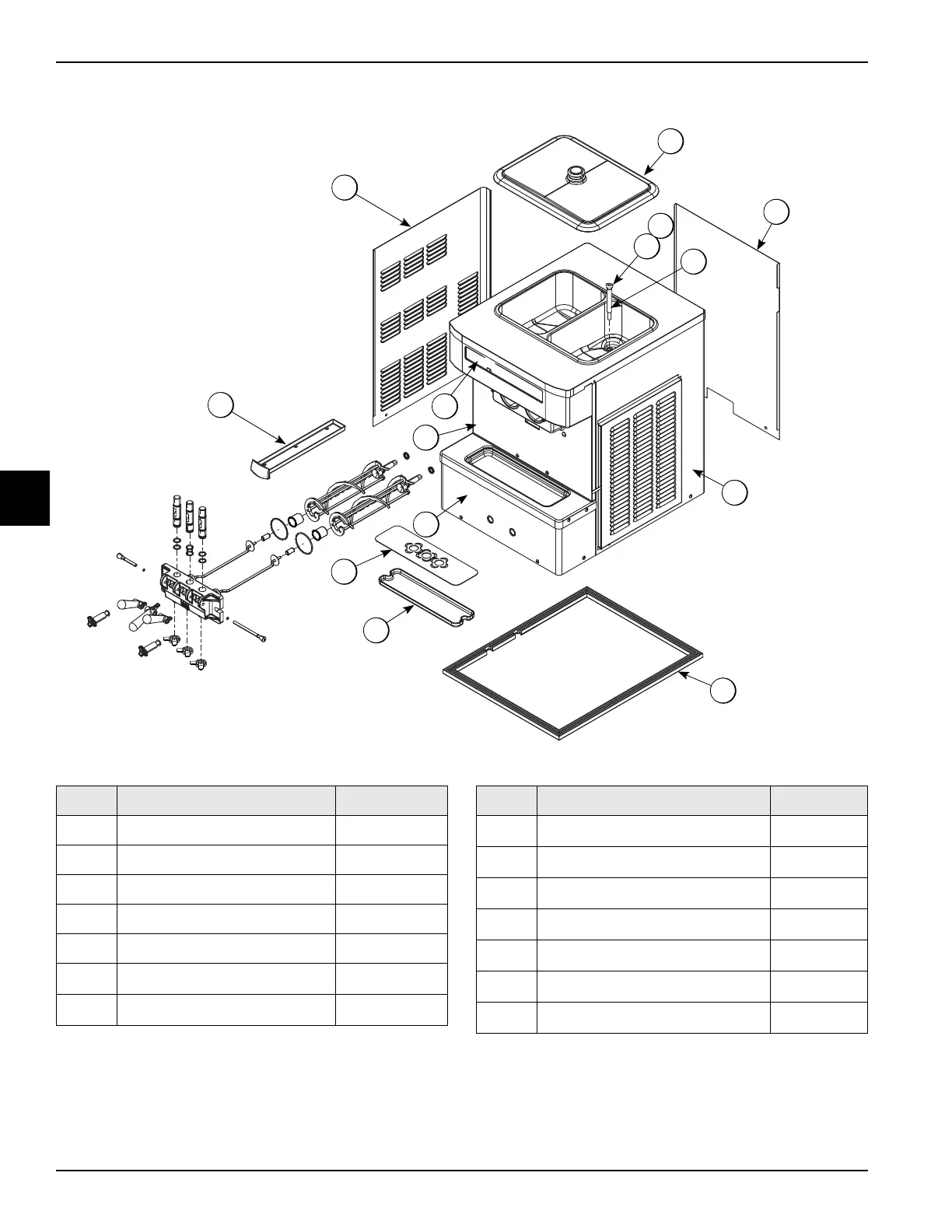

OPERATOR PARTS IDENTIFICATION
085592-M
Operator Parts Identification
4
Model C161
Figure 4-2
3
1
2
4
5
6
7
8
9
10
11
12
13
14
Item Description Part No.
1 Pan-Drip 085295
2 Panel-Side-Left 085262
3 Cover A.-Hopper 085351
4 Tube-Feed 030797
5 Panel-Rear 085274
6
Panel A.-Side-Right X69433
7
Gasket-Base Pan 055815-SP
Item Description Part No.
8
Tray-Drip 16-7/8L X 4-5/16 085699
9
Shield-Splash 085304
10
Panel-Lower Front X85729-SER
11
Panel A.-Front 085678
12
Plate-Dec X85775
13
Air Orifice 022465-100
14
O-Ring 3/8 OD X.070W 016137
