OPERATOR PARTS IDENTIFICATION
085592-M
Operator Parts Identification
4

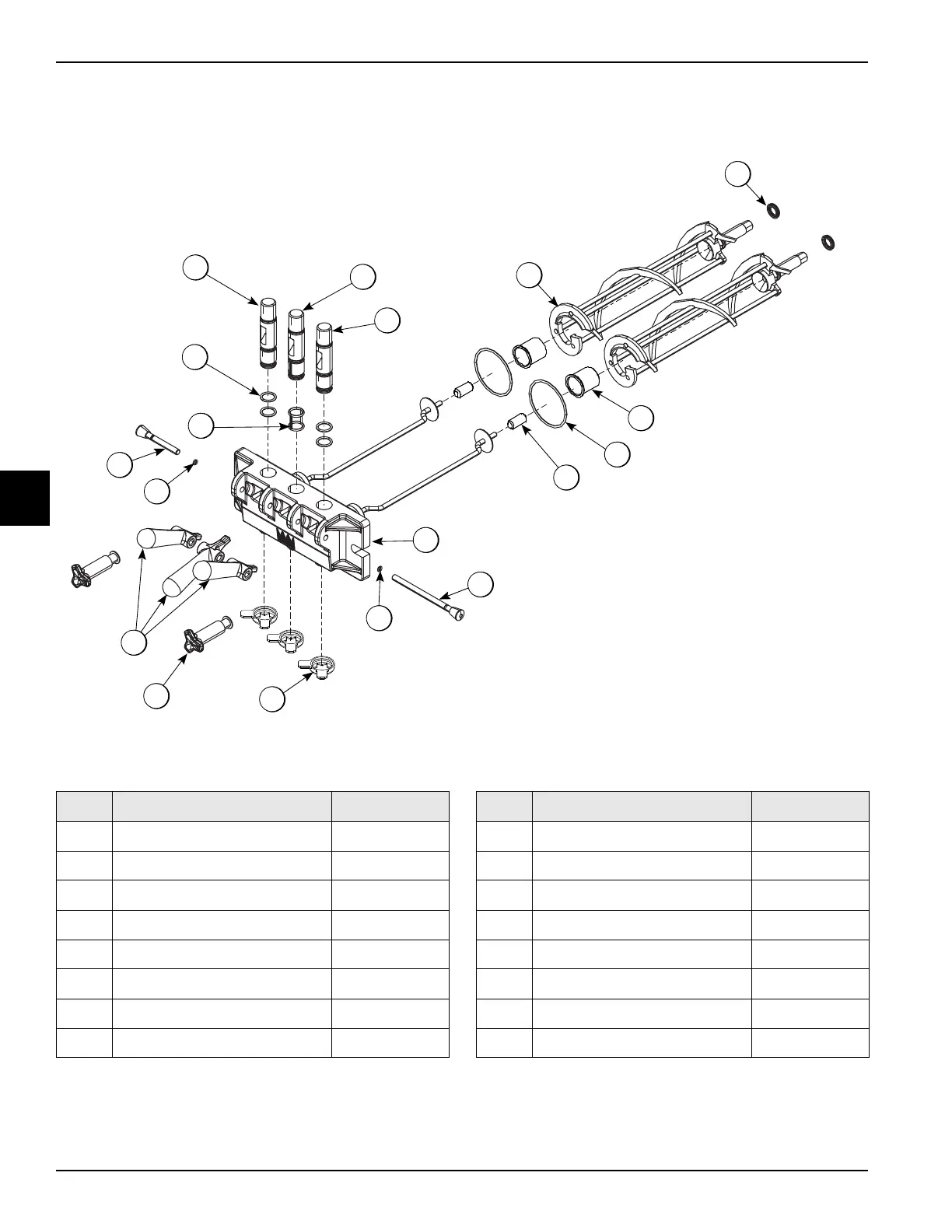

C161 Beater Door Assembly
Figure 4-4
1
2
1
3
11
5
6
7
8
9
6
10
4
13
15
16
12
14
Item Description Part No.
1 Valve-Draw 024763-SP1
2 O-Ring-7/8 OD X.103W 014402
3 Seal-Draw Valve *Small H-Ring* 030930
4 Door A.-3SPT 1.5QT VALOX X56906SER3
5 Pin A.-Pivot-Short X38539
6 O-Ring-5/16 OD X.070W 016272
7 Handle-Draw 085615
8 Nut-Stud 056802-SP
Item Description Part No
9 Cap-Design 1.010"ID-6 PT. 014218
10 Pin A.-Pivot-Long X38538
11 Valve-Draw-Center 031164-SP
12 Bearing-Guide 014496
13 O-Ring-2-3/4 OD X .139W 019998
14 Bearing-Front 023262
15 Beater A.- X24689
16 Seal-U-Cup 080534
To Next Page
