Taylor C152 User Manual

OPERATOR PARTS IDENTIFICATION
4-3
085592-M
Operator Parts Identification
4

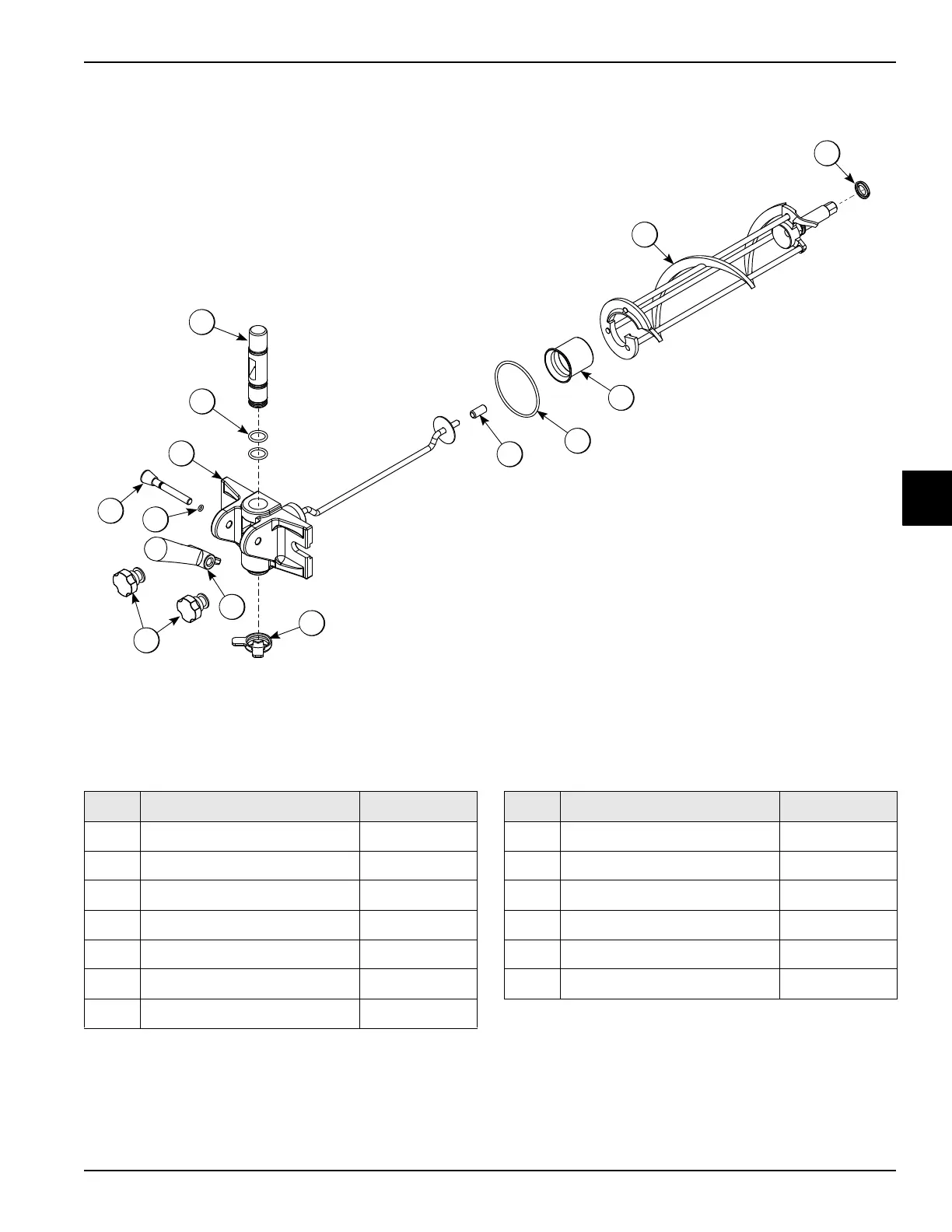

C152 Beater Door Assembly
Figure 4-3
1
2
3
4
5
8
10
12
13
9
11
7
6
Item Description Part No.
1 Valve-Draw 024763-SP1
2 O-Ring-7/8 OD X.103W 014402
3 Door A.-3SPT 1.5QT VALOX X86373-SER
4 Pin A.-Pivot-Short X38539
5 O-Ring-5/16 OD X.070W 016272
6 Handle-Draw 085615
7 Nut-Stud 034829-SP
Item Description Part No
8 Cap-Design 1.010"ID-6 PT. 014218
9 Bearing-Guide 014496
10 O-Ring-2-3/4 OD X .139W 019998
11 Bearing-Front 023262
12 Beater A. X24689
13 Seal-U-Cup 080534

Taylor C152 Specifications

General

Brand	Taylor
Model	C152
Category	Freezer
Language	English
