OPERATING PROCEDURES
085592-M
Operating Procedures
6

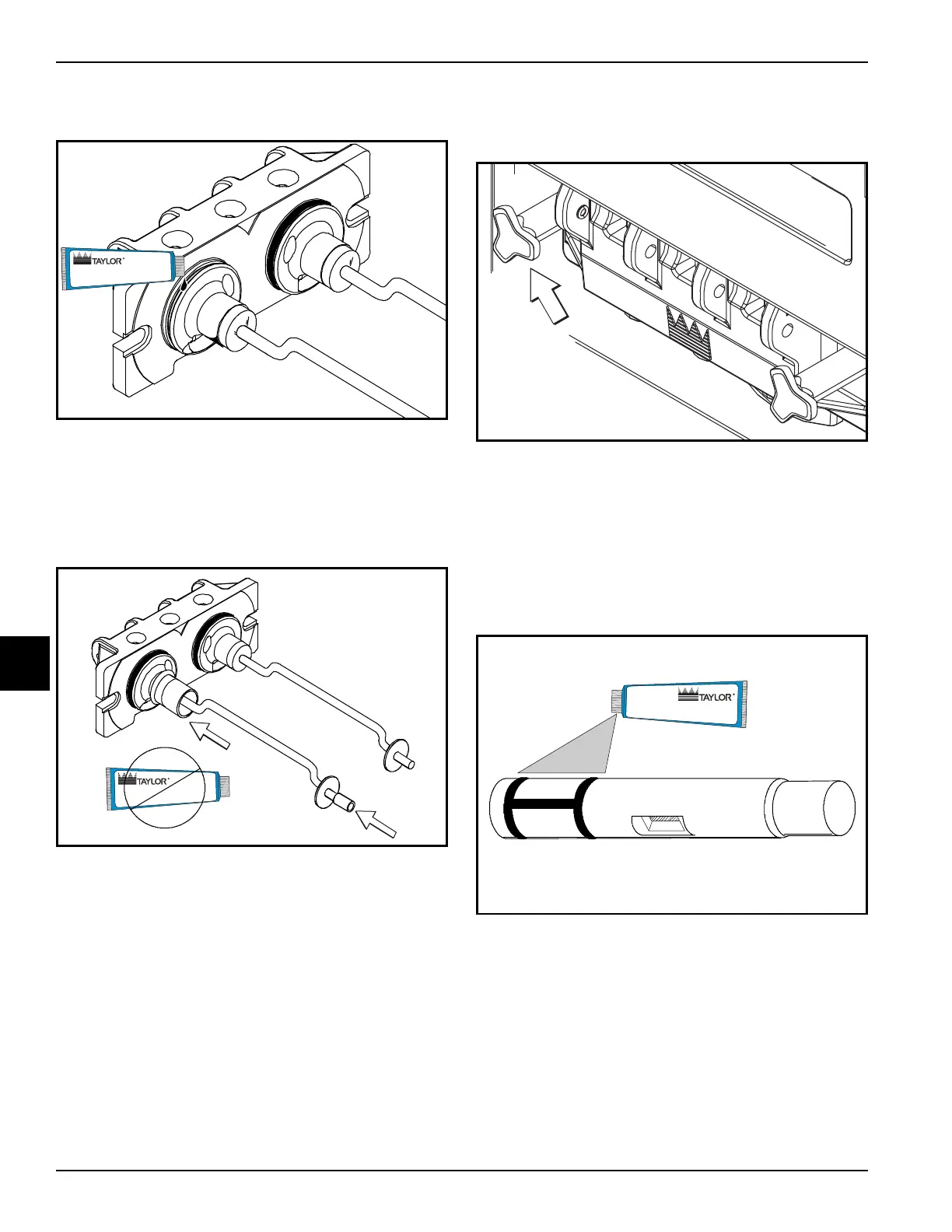

4. Place the large O-rings into the grooves on the back
of the machine door and lubricate.
Figure 6-4
5. Slide the front bearings over the baffle rods so that
the flanged edge is against the door. Place the white
plastic guide bearings on the end of the baffle rods.
Do not lubricate the front bearings or the guide
bearings.
Figure 6-5
6. Slide the slotted portion of the handscrews into the
slots in the freezer door.
7. With both hands, hold the sides of the freezer door
and insert the baffle rods into the center of the beater
assemblies. The white guide bearings must fit
securely in the holes of the drive shafts.
8. Finger-tighten the handscrews, making sure they are
tightened equally and that the door is snug. Do not
overtighten the handscrews.
Figure 6-6
Important! Handscrew and door damage can result if the
handscrews are overtightened or if one handscrew is
tightened more than the other.
9. (For Model C161 Only) Install the valve seal into the
grooves on the center draw valve and lubricate. This
special seal will prevent the mix in one freezing
cylinder from traveling into the second cylinder.
Figure 6-7
Apply the appropriate
Taylor approved food safe lubricant.
10335
10336
Apply the appropriate
Taylor approved food safe lubricant.
Apply the appropriate
Taylor approved food safe lubricant.
11070C
