Model C300 Important: To the Operator
Section 5 Important: To the Operator

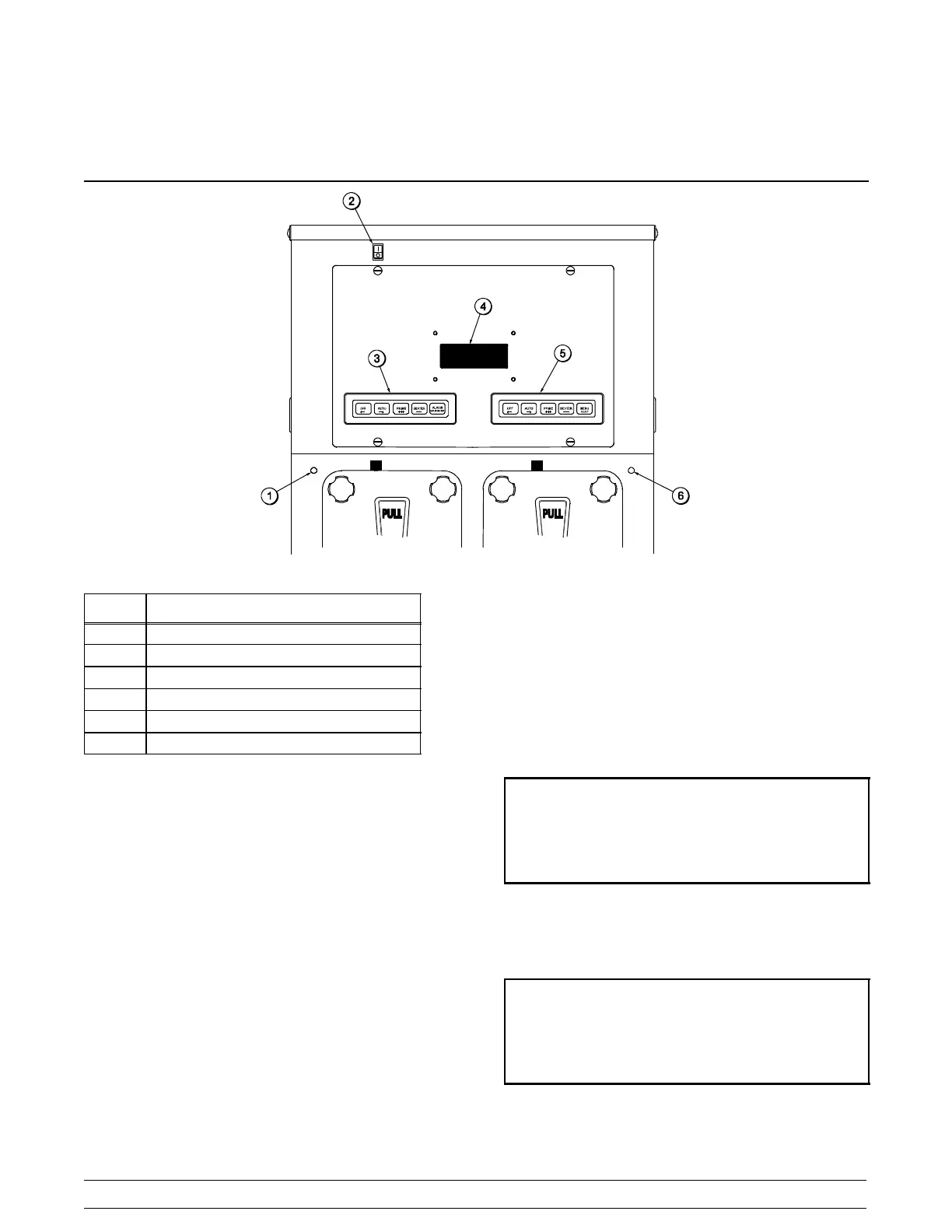

Figure 5
ITEM
DESCRIPTION
1 Product Light -- Left Side
2 Control Switch
3 Keypad -- Left Side
4 Liquid Crystal Display
5 Keypad -- Right Side
6 Product Light -- Right Side
Control Switch
The control switch is located at the top left corner of
the control channel. When placed in the ON position,
allows SLUSHTECH operation.
Liquid Crystal Display
The Liquid Crystal Display (LCD) is located on the
front control panel. The LCD is used to show the
current operating mode of the freezing cylinders.
The LCD also indicates whether there is enough
syrup, CO2, and water being supplied to the freezer.
If an error in the machine operation occurs, a
warning tone will sound and the word “FAULT” will
flash on the third line of the display.
Operational Mode Display
The displays below illustrate the Operational Mode
Displays. This information appears on the LCD
during normal operation.
When the unit is plugged into the wall receptacle
and the control switch is in the ON position, this
screen appears.
SAFETY TIMEOUT
ANY KEY ABORT
This display will remain on the LCD for 60 seconds
unless a key is pressed. When any key is pressed
(or 60 seconds passes), the next screen appears.
OFF MODE OFF
OK SYRUP OK
CO2--OK WATER--OK
Note: Syrup, CO
2
and water are satisfied.
To Next Page
