Models C709 & C717 Operator Parts Identification
100324
Section 4 Operator Parts Identification
Model C709

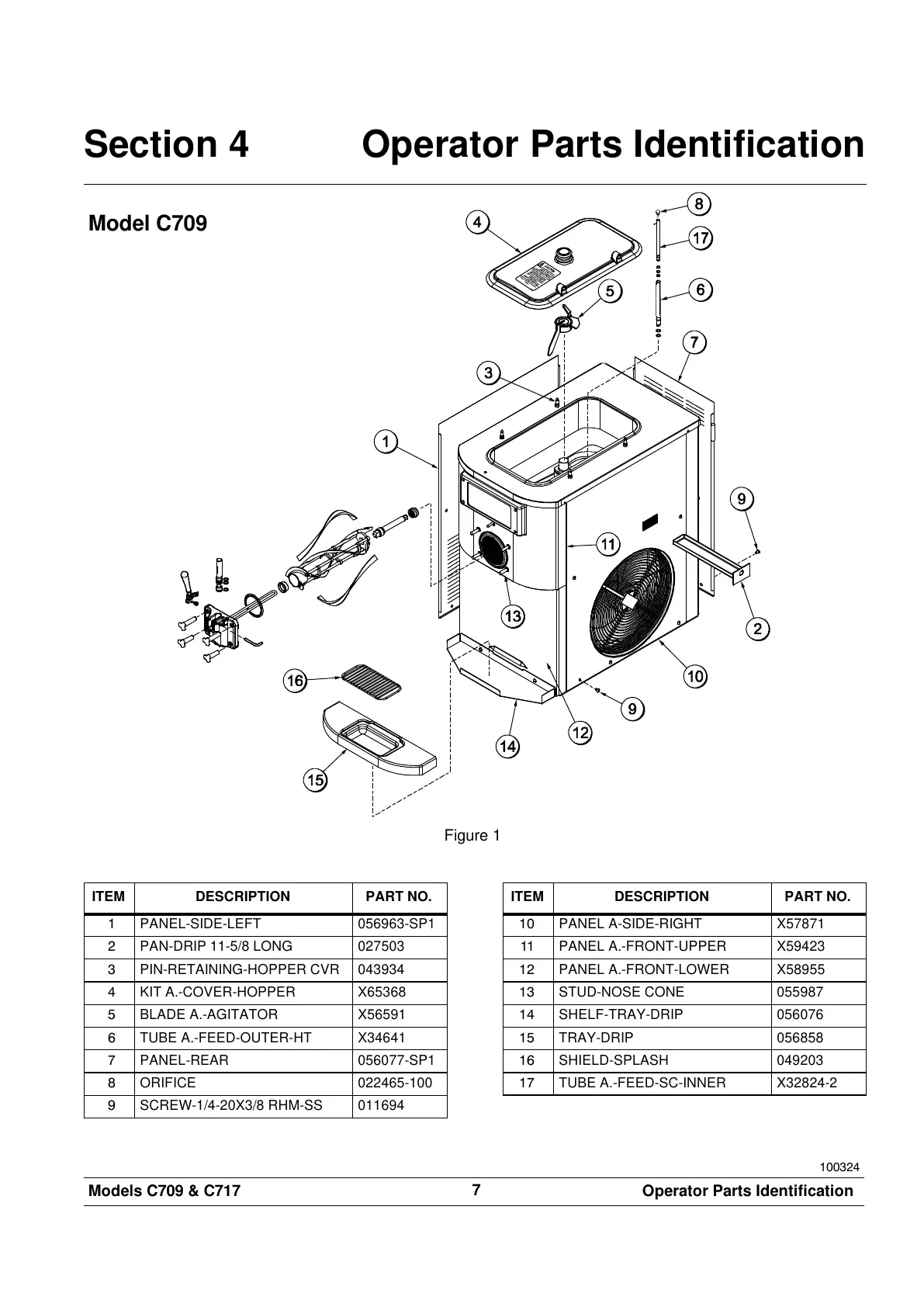

Figure 1
ITEM DESCRIPTION PART NO.
1 PANEL-SIDE-LEFT 056963-SP1
2 PAN-DRIP 11-5/8 LONG 027503
3 PIN-RETAINING-HOPPER CVR 043934
4 KIT A.-COVER-HOPPER X65368
5 BLADE A.-AGITATOR X56591
6 TUBE A.-FEED-OUTER-HT X34641
7 PANEL-REAR 056077-SP1
8 ORIFICE 022465-100
9 SCREW-1/4-20X3/8 RHM-SS 011694
ITEM DESCRIPTION PART NO.
10 PANEL A-SIDE-RIGHT X57871
11 PANEL A.-FRONT-UPPER X59423
12 PANEL A.-FRONT-LOWER X58955
13 STUD-NOSE CONE 055987
14 SHELF-TRAY-DRIP 056076
15 TRAY-DRIP 056858
16 SHIELD-SPLASH 049203
17 TUBE A.-FEED-SC-INNER X32824-2
