Taylor C717 - Feed Tube Assembly

12
Models C709 & C717Operator Parts Identification

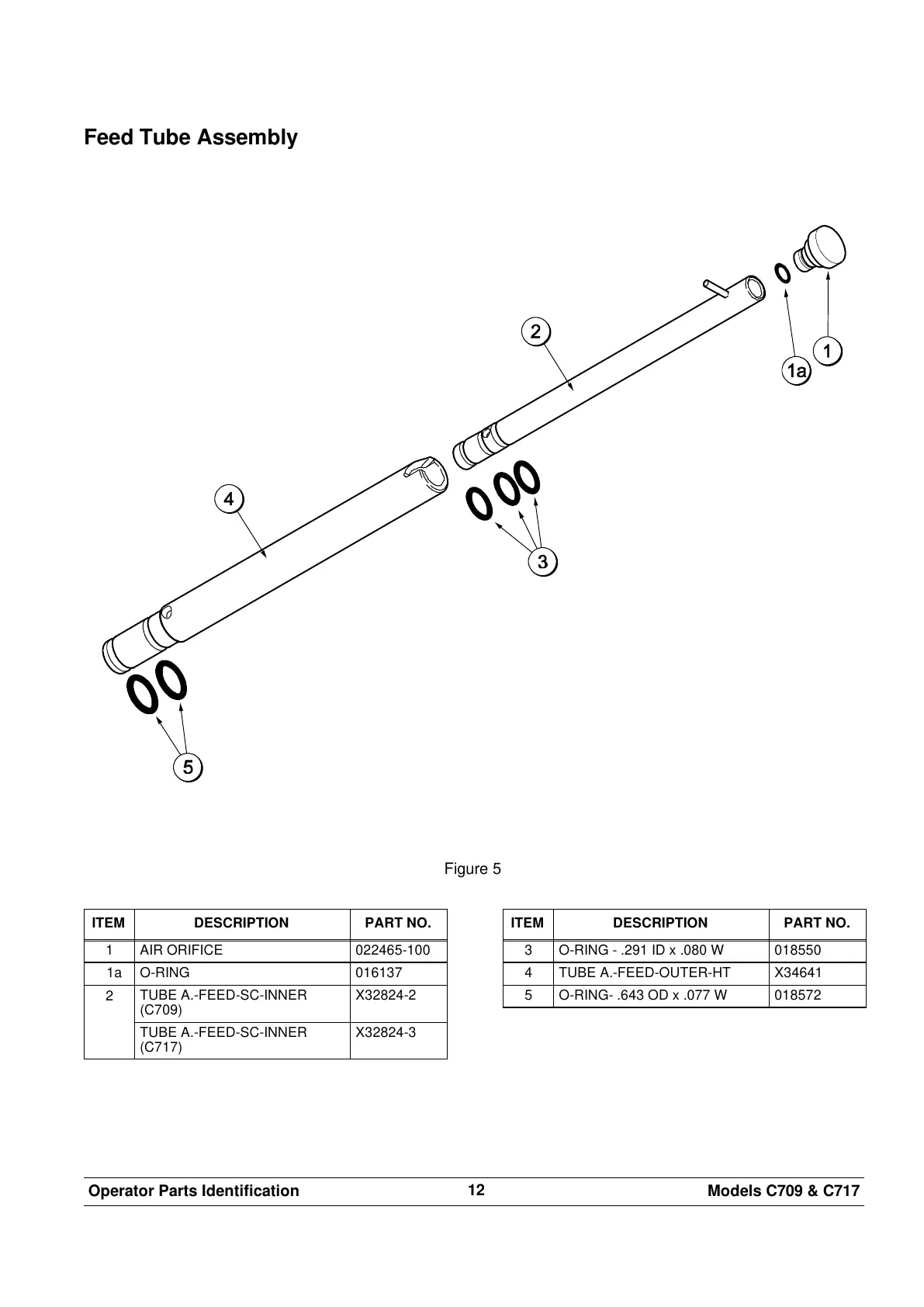

Feed Tube Assembly
Figure 5
ITEM DESCRIPTION PART NO.
1 AIR ORIFICE 022465-100
1a O-RING 016137
2
TUBE A.-FEED-SC-INNER
(C709)
X32824-2
TUBE A.-FEED-SC-INNER
(C717)
X32824-3
ITEM DESCRIPTION PART NO.
3 O-RING - .291 ID x .080 W 018550
4 TUBE A.-FEED-OUTER-HT X34641
5 O-RING- .643 OD x .077 W 018572
