Models C709 & C717 Important: To the Operator
130228
Section 5 Important: To the Operator

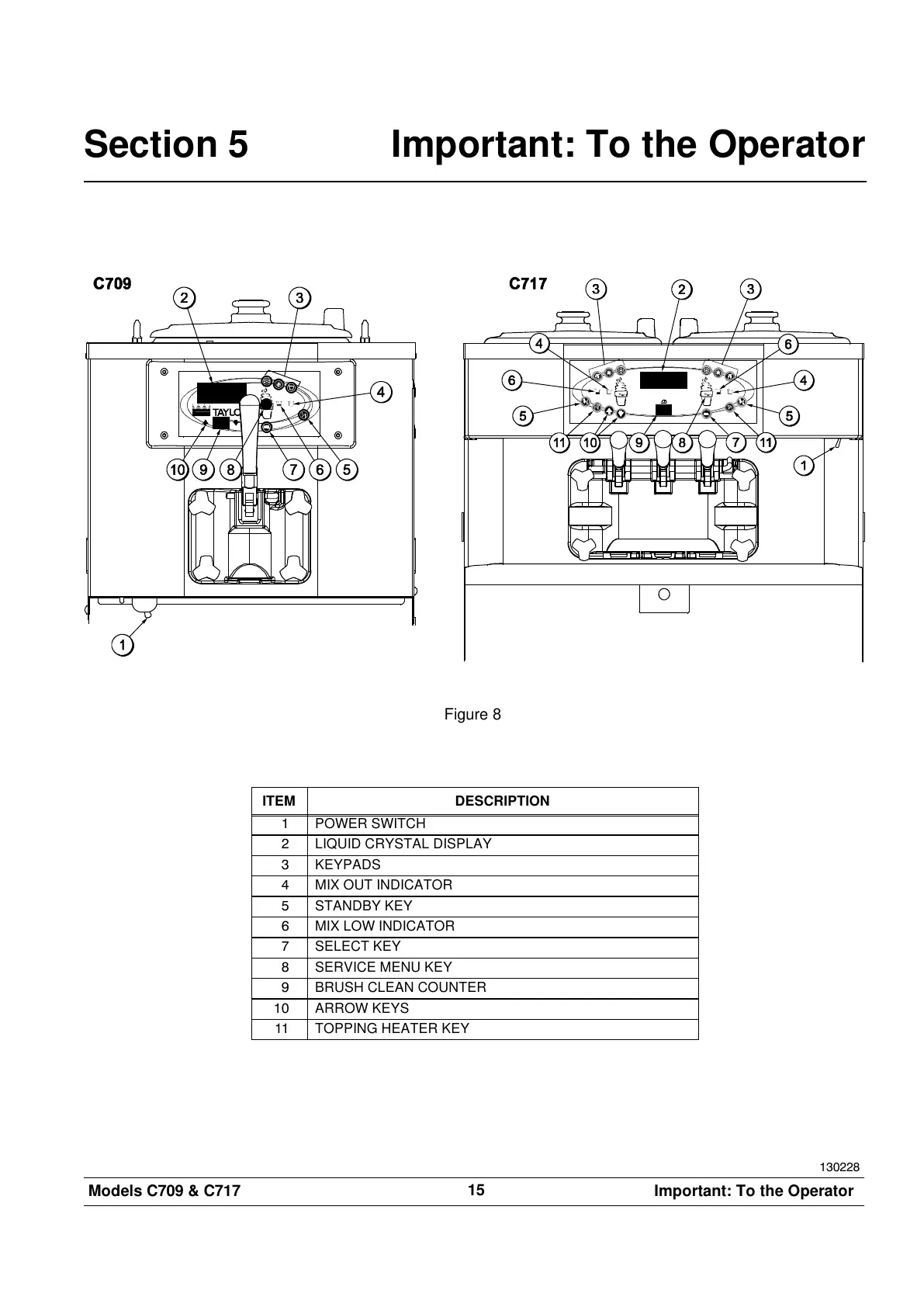

Figure 8
ITEM DESCRIPTION
1 POWER S WITC H
2 LIQUID CRYSTAL DISPLAY
3 KEYPADS
4 MIX OUT INDICATOR
5 STANDBY KEY
6 MIX LOW INDICATOR
7 SELECT KEY
8 SERVICE MENU KEY
9 BRUSH CLEAN COUNTER
10 ARROW KEYS
11 TOPPING HEATER KEY
