Taylor C717 Original Operating Instructions

30
Models C709 & C717Important: To the Operator
120227

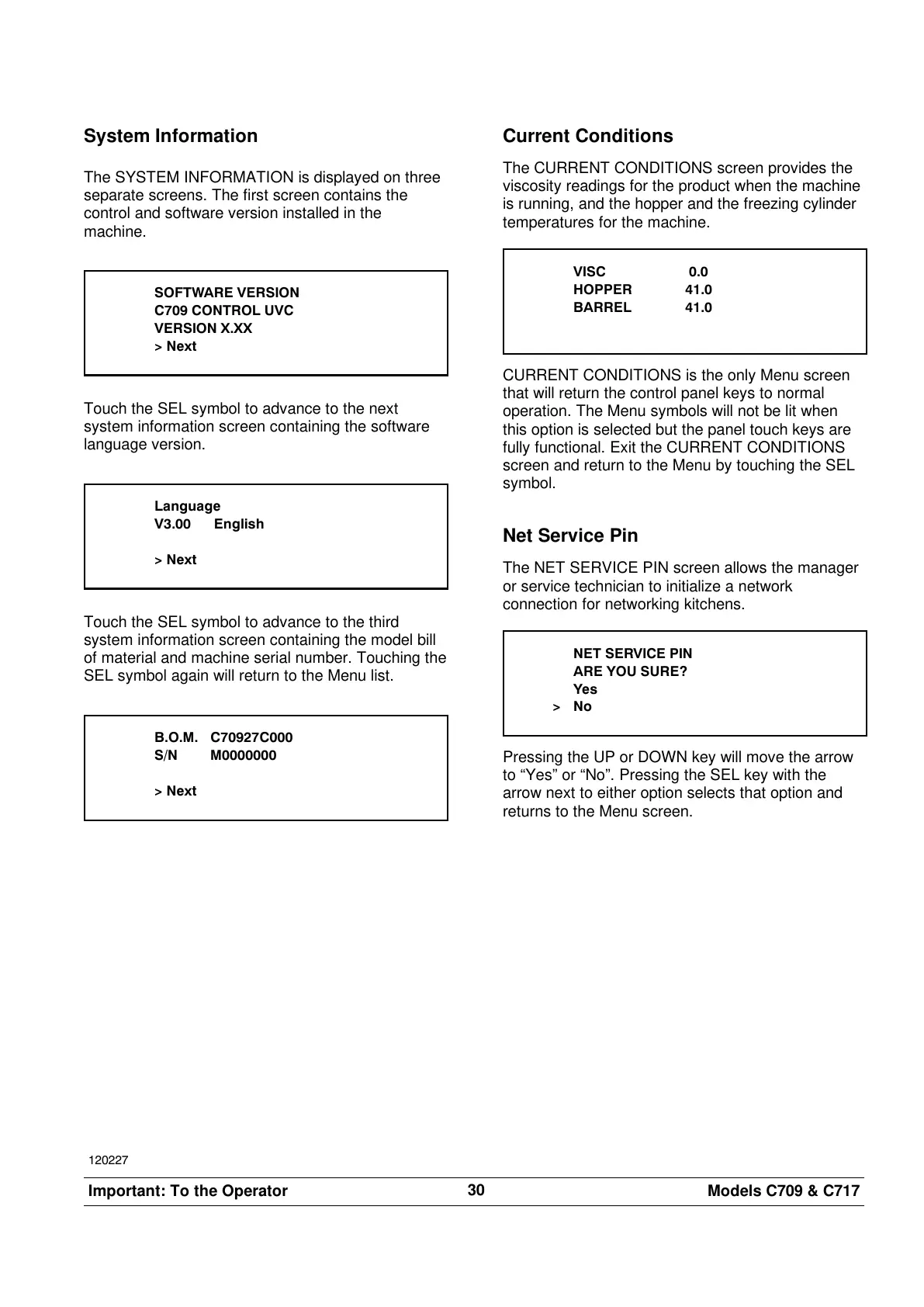

System Information
The SYSTEM INFORMATION is displayed on three
separate screens. The first screen contains the
control and software version installed in the
machine.
SOFTWARE VERSION
C709 CONTROL UVC
VERSION X.XX
> Next
Touch the SEL symbol to advance to the next
system information screen containing the software
language version.
Language
V3.00 English
> Next
Touch the SEL symbol to advance to the third
system information screen containing the model bill
of material and machine serial number. Touching the
SEL symbol again will return to the Menu list.
B.O.M. C70927C000
S/N M0000000
> Next
Current Conditions
The CURRENT CONDITIONS screen provides the
viscosity readings for the product when the machine
is running, and the hopper and the freezing cylinder
temperatures for the machine.
VISC 0.0
HOPPER 41.0
BARREL 41.0
CURRENT CONDITIONS is the only Menu screen
that will return the control panel keys to normal
operation. The Menu symbols will not be lit when
this option is selected but the panel touch keys are
fully functional. Exit the CURRENT CONDITIONS
screen and return to the Menu by touching the SEL
symbol.
Net Service Pin
The NET SERVICE PIN screen allows the manager
or service technician to initialize a network
connection for networking kitchens.
NET SERVICE PIN
ARE YOU SURE?
Yes
>No
Pressing the UP or DOWN key will move the arrow
to “Yes” or “No”. Pressing the SEL key with the
arrow next to either option selects that option and
returns to the Menu screen.

Taylor C717 Specifications

General

Brand	Taylor
Model	C717
Category	Freezer
Language	English
