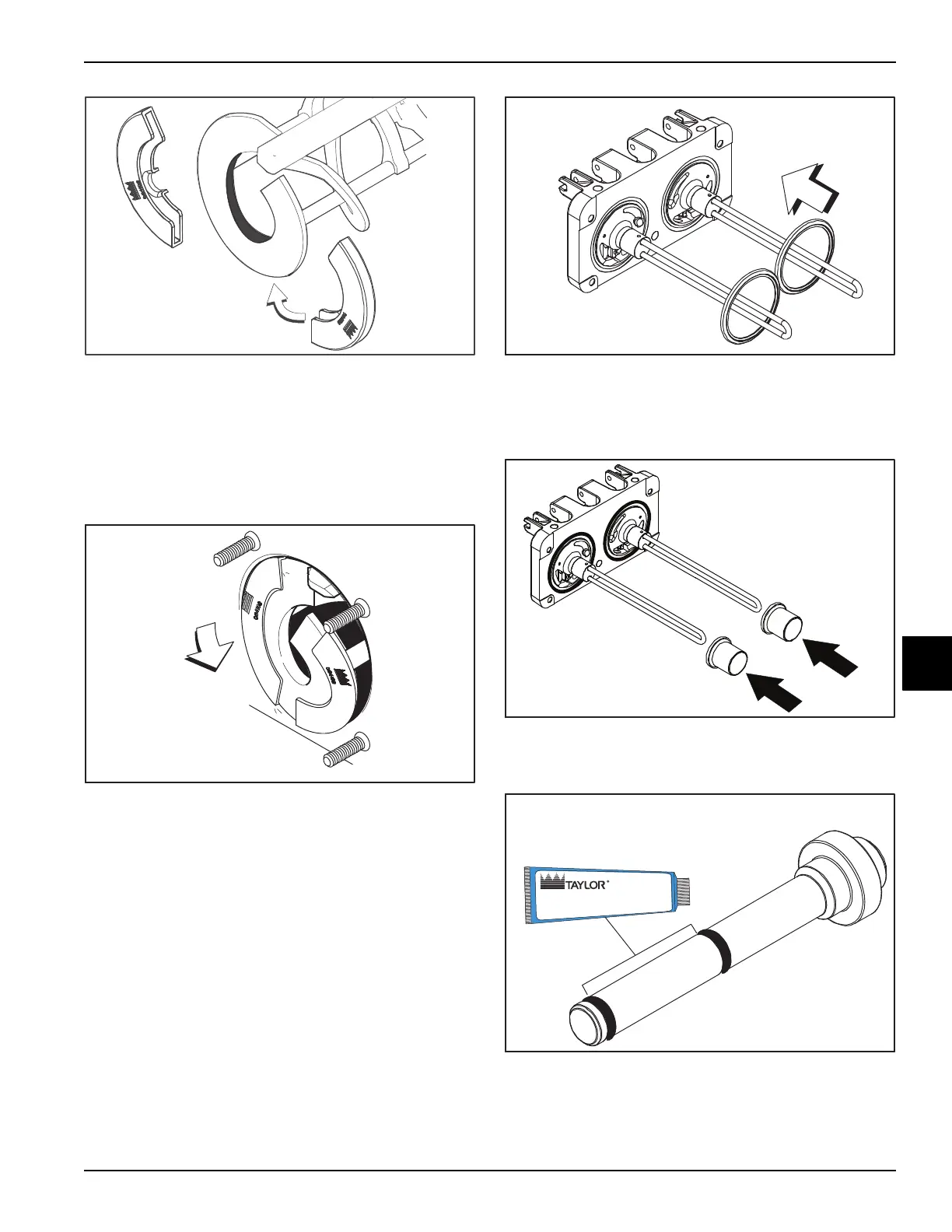

Figure 6-7
10. Slide the beater assembly the rest of the way into the
freezing cylinder. Make sure the beater assembly is
in position over the driveshaft by turning the beater
slightly until the beater is properly seated. When in
position, the beater will not protrude beyond the front
of the freezing cylinder.
Figure 6-8
11. Repeat steps 1 through 10 for the other side of
the machine.
12. Before assembling the freezer door, check the
following for any nicks, cracks, or signs of wear: the
door bearings, door gaskets, draw valves, O-rings,
and all sides of the door assembly, including the
inside of the draw valve bores. Replace any
damaged parts.
13. Place the door gaskets into the grooves on the back
of the freezer door. Do not lubricate the gaskets.
Figure 6-9
14. Slide the front bearings over the baffle rods. The
flanged edges should be against the door. Do not
lubricate the gaskets or front bearings.
Slide the two O-rings into the grooves on each prime
plug. Apply an even coat of Taylor Lube to the
O-rings and shafts.
Figure 6-10
11535
11468
Apply the appropriate
Taylor approved food safe lubricant.
