OPERATING PROCEDURES
Model C722
Operating Procedures
6
15. Insert the prime plugs into the holes in the top of the
freezer door, and push down.

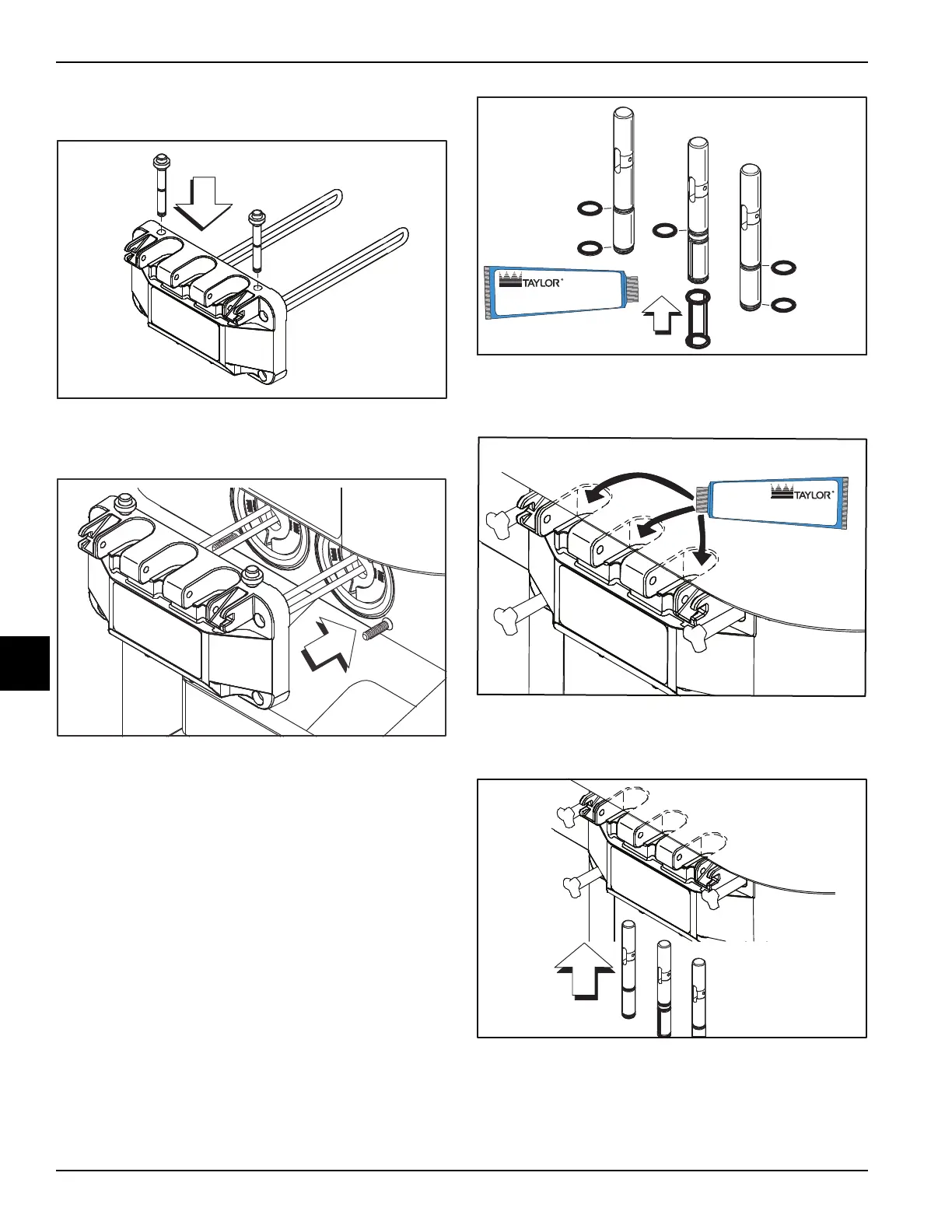

Figure 6-11
16. To install the freezer door, insert the baffle rods
through the beaters in the freezing cylinders.
Figure 6-12
With the door seated on the freezer studs, install the
handscrews. Use the long handscrews on the top
and the short handscrews on the bottom. Tighten
them equally in a crisscross pattern to ensure the
door is secured.
17. Slide the three O-rings into the grooves of each
standard draw valve. Slide the H-ring and O-ring into
the grooves of the center draw valve. Lubricate the
H-ring and O-rings.
Figure 6-13
18. Lubricate the inside of the freezer door spouts, top
and bottom.
Figure 6-14
19. Insert the draw valves from the bottom until the slot in
each draw valve comes into view.
\
Figure 6-15
101293
101714
10526
Apply the appropriate
Taylor approved food safe lubricant.
101295
Apply the appropriate
Taylor approved food safe lubricant.
101296
