OPERATING PROCEDURES
6-3
087482-M
Operating Procedures
6

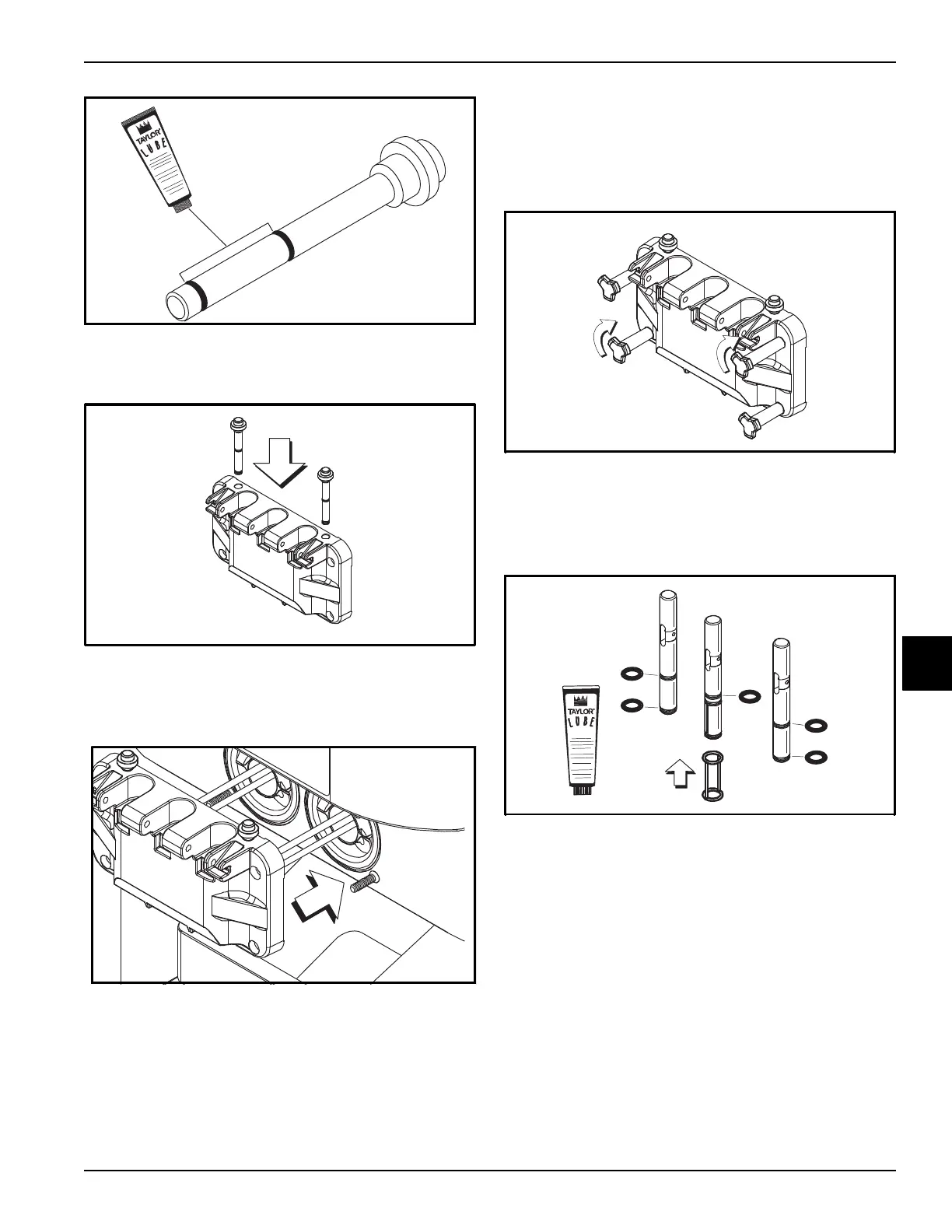

Figure 6-6
12. Insert the prime plugs into the holes in the top of the
freezer door and push down.
Figure 6-7
13. Insert the baffle rod(s) through the opening in the
beater(s) and seat the door flush with the freezing
cylinder.
Figure 6-8
Note: The short handscrews go on the bottom, and the
long handscrews go on the top.
14. With the door seated on the freezer studs, install the
handscrews. Tighten equally in a crisscross pattern
to ensure the door is secured.
Figure 6-9
15. Slide the two O-rings into the grooves of each
standard draw valve. Slide the H-ring and O-ring into
the grooves of the center draw valve. Lubricate the
H-ring and O-rings.
Figure 6-10
