16. Lubricate the inside of the freezer door spouts from
the bottom. Insert the draw valves into the freezer
door from the bottom until the slot in the draw valves
comes into view.

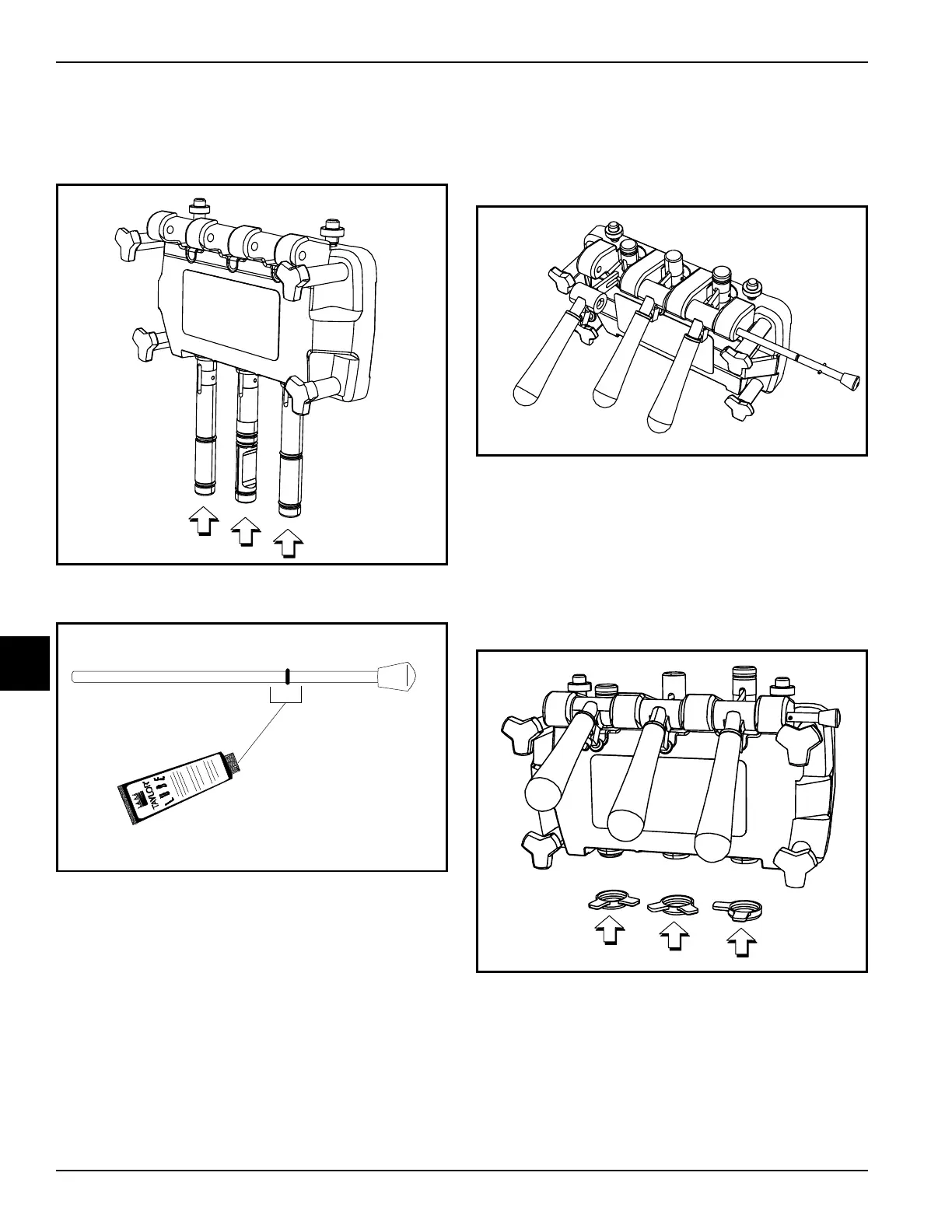

Figure 6-11
17. Slide the O-ring onto each pivot pin and lubricate.
Figure 6-12
18. These units have three draw handles. Slide the fork
of the draw handle in the slot of the draw valve,
starting from the right. Slide the pivot pin through
each draw handle as you insert them into the draw
valves.
Figure 6-13
Note: These units feature adjustable draw handles to
provide the best portion control. The draw handles can
be adjusted for different flow rates. See
"Adjustable Draw
Handle" on page 5-4 for more information on adjusting
these handles.
19. Snap the design caps over the bottom of the freezer
door spouts.
Figure 6-14
