Operating Procedures
6
20. Install the front drip tray and the splash shield under
the door spout(s).

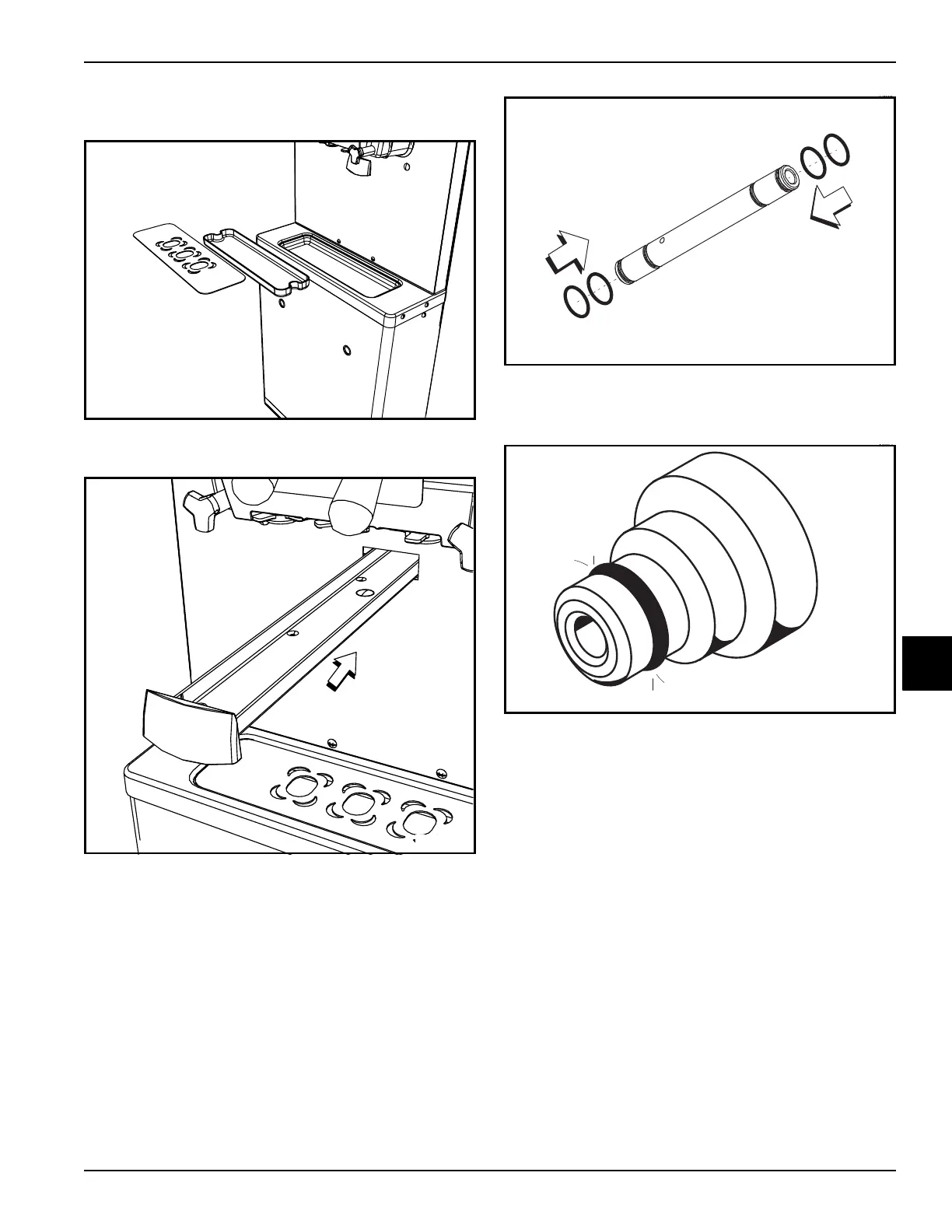

Figure 6-15
21. Slide the rear drip pan into the hole in the front panel.
Figure 6-16
22. Slide two O-rings on one end of the air tube. Slide
two O-rings on the other end of the air tube.
Figure 6-17
23. Slide the small O-ring into the groove of the air
orifice. Do not lubricate the O-ring.
Figure 6-18
Note: Make sure the hole in the air orifice is clean and is
not clogged. If the hole in the air orifice should become
clogged, use soap and hot water to clear the hole. Do
not enlarge the hole in the air orifice.
