Taylor C858 User Manual

45

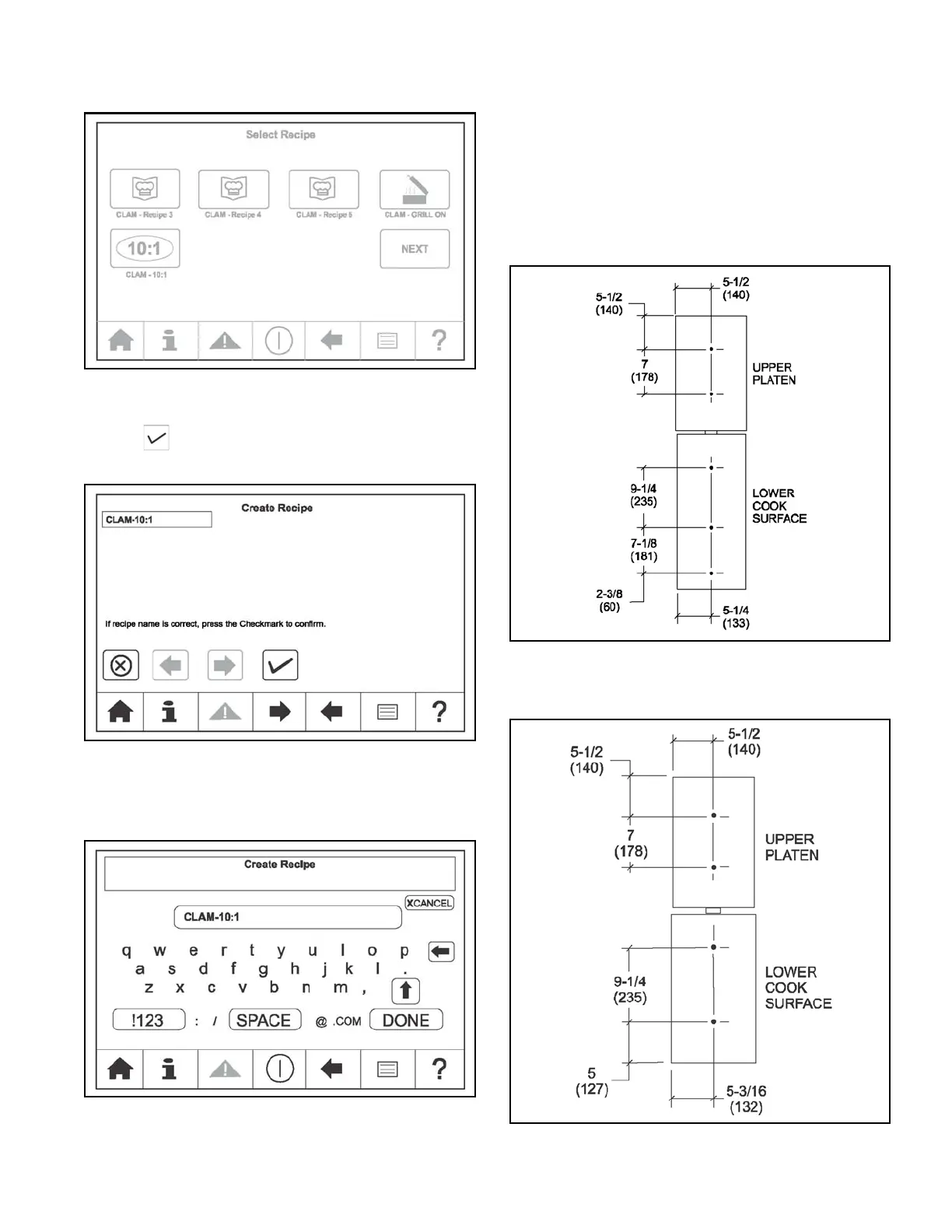

14. Select the recipe. See Figure-76.
Figure-76
15. If the recipe name is correct, press the Checkmark
key
to confirm. If the name is not correct, press
the menu item under Create Recipe. See Figure-77.
Figure-77
16. Type the name of your new recipe. (The Back Arrow
key is used as a backspace key.) Select DONE when
complete. See
Figure-78.
Figure-78
Probe Calibration
Thermocouple probes are located on the front and rear of
the lower grill plates and upper platens. The
measurements should be taken from front to back and
left to right on all model grills.
Figure-79 identifies the probe locations for the Model
C850, C852, and C858 grill.
Figure-79
Figure 80 identifies the probe locations for the Model
C854, C856, and C860 grill.
Figure-80

Taylor C858 Specifications

General

Brand	Taylor
Model	C858
Category	Commercial Food Equipment
Language	English
