164
Parts
McDonald's Intelligap Grills
150722

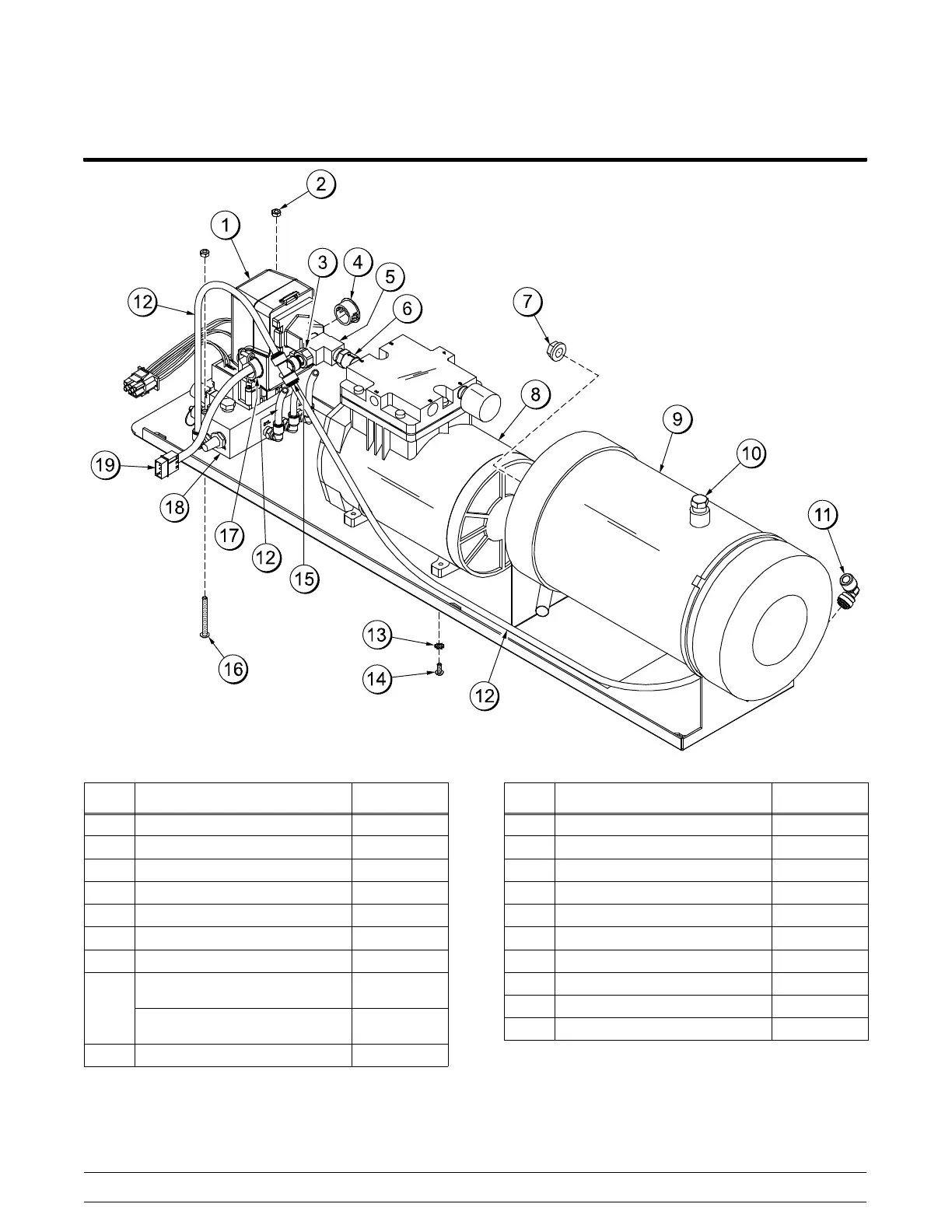

Compressor A.-Air - X72724-12 (60 Hz) -27 (50 Hz) (C842/C844)
Figure 100
ITEM DESCRIPTION PART NO.
1 SWITCH-PRESSURE 240V 3HP 063944-C
2 NUT-10-32 SMALL PATTERN 059663
3 ADAPTOR-1/4MPTX1/4 OD 052563-2
4 PLUG-HOLE 7/8 DIA. BLACK 010077
5 TEE-1/4FPT X 1/4MPT X 1/4 021277
6 VALVE-CHECK 1/4MP 020959
7 NUT-3/8-16 WHIZ FLANGE LOC 017329
8
COMPRESSOR-AIR-115V
(60 HZ UNIT)
075506SER1
COMPRESSOR-AIR
(230/50/60)
032129SER2
9 TANK-ACCUMULATOR 10 LB 078820
ITEM DESCRIPTION PART NO.
10 PLUG-1/4MP BRASS 027747
11 FITTING-1/4MPTX1/4OD TUBE 052560-2
12 TUBE-.170 ID X .250 OD R403021
13 WASHER-#8 EXT. TOOTH 000964
14 SCREW-8-32X3/8 SLTD RND 007544
15 TEE-1/4OD X 1/4OD X 1/4OD 052562
16 SCREW-10-32X1-3/4 SLTD RD 013195
17 CONNECTOR-BX 3/8 STR-2 014569
18 MANIFOLD A. (SEE PG 155) 072695
19 CONNECTOR-MATE LOCK-3 044823
To Next Page
