McDonald's Intelligap Grills
Parts
150722
Compressor A.-Air - X73108-12 (60 Hz) -27 (50 Hz) (C845)

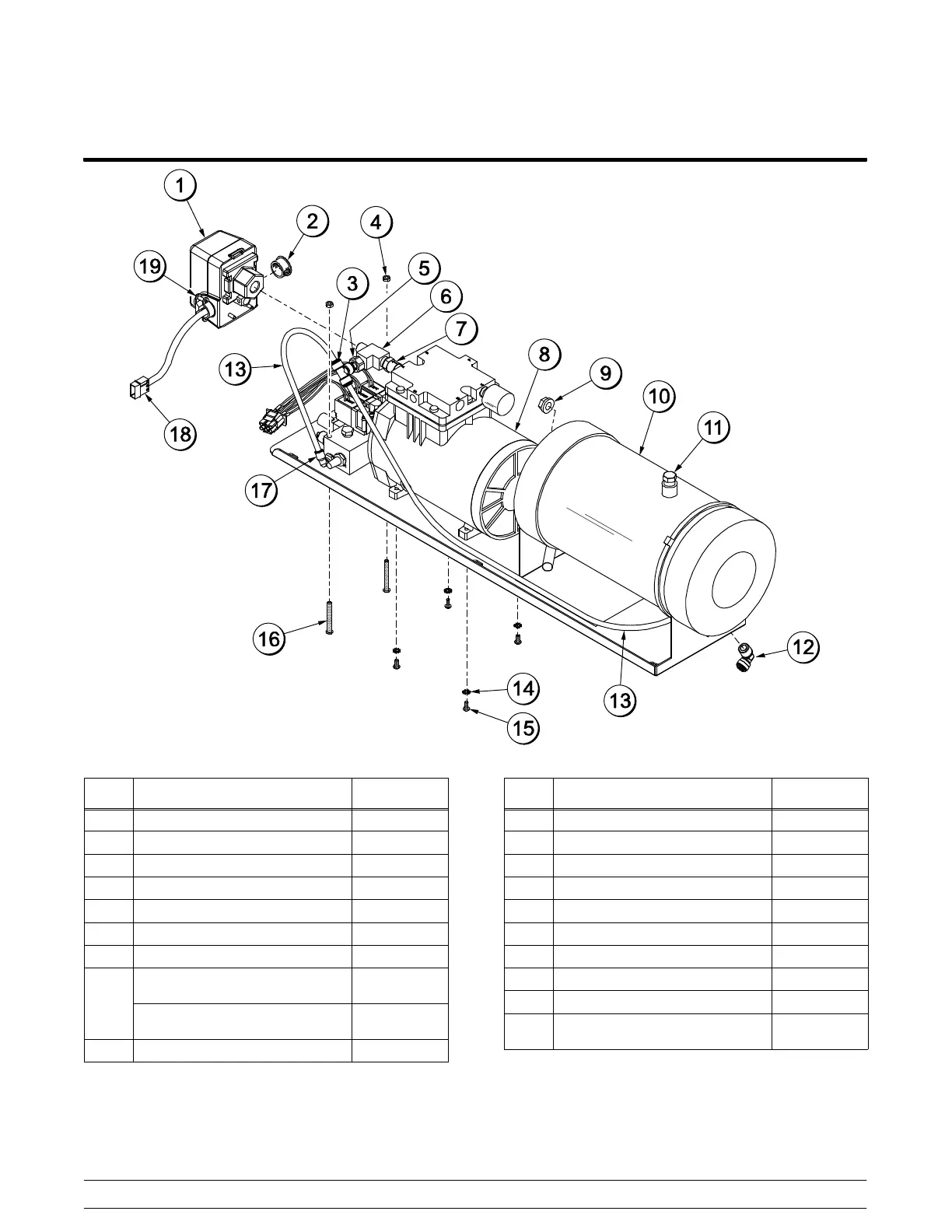

Figure 101
ITEM DESCRIPTION PART NO.
1 SWITCH-PRESSURE 240V 3HP 063944-C
2 PLUG-HOLE 7/8 DIA. BLACK 010077
3 TEE-HI TEMP 1/4X1/4 OD 058770-2
4 NUT-10-32 SMALL PATTERN 059663
5 ADAPTOR-HI TEMP 1/4X1/4 OD 058769-2
6 TEE-1/4FPT X 1/4MPT X 1/4FPT 021277
7 VALVE-CHECK 1/4MP 020959
8
COMPRESSOR-AIR-115V
(60 HZ)
075506SER1
COMPRESSOR-AIR-230V
(50 HZ)
032129SER2
9 NUT-3/8-16 WHIZ FLANGE LOC 017329
ITEM DESCRIPTION PART NO.
10 TANK-ACCUMULATOR 10 LB 078820
11 PLUG-1/4MP BRASS 027747
12 FITTING-HI TEMP 1/4X1/4 OD 9 058771-2
13 TUBE-.188 IDX.250OD TEFLON R403022
14 WASHER-#8 EXT TOOTH LOC 000964
15 SCREW-8-32X3/8 SLT ROUND 007544
16 SCREW-10-32X1-3/4 SLT RND 013195
17 MANIFOLD A. 072695
18 CONNECTOR-MATE LOCK-3 044823
19 CONNECTOR-BX 3/8 STR-2
SCREW
014569
To Next Page
