7
MPPT charge controller User Manual
Pin8 RS485_B
2.2.4 Dimension

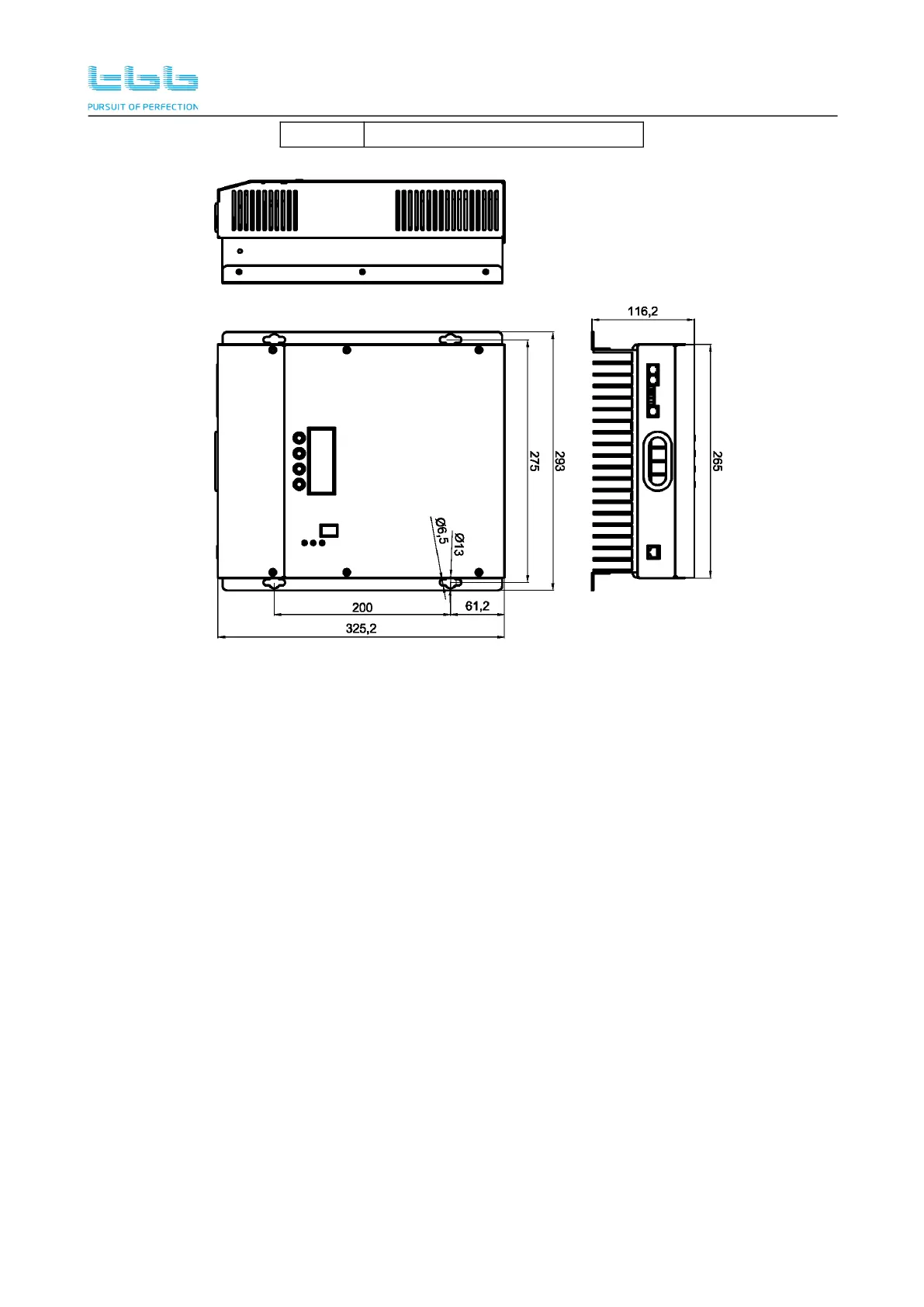

Figure 2-4 Dimension of Solar Mate MPPT charge controller
(SP250-70、SP150-100、SP150-80、SP150-60)
