MPPT charge controller User Manual
3.4 Installation
The Solar Mate need to be installed vertically, please choose a flat surface and with 4xM6
supplied to install following Figure 3-4.
Install the SP as close to the batteries as possible reducing the voltage drop on cable for the
better performance of the equipment.
Please install four feet supplied in the accessory pack on side of the charge controller.
Please place the SP on your preference location and mark the location of four feet.
Screw the four screws on the wall, leaving about 6mm (1/4”).
Hanging the SP on the four screws and screw tight the four screws afterwards.

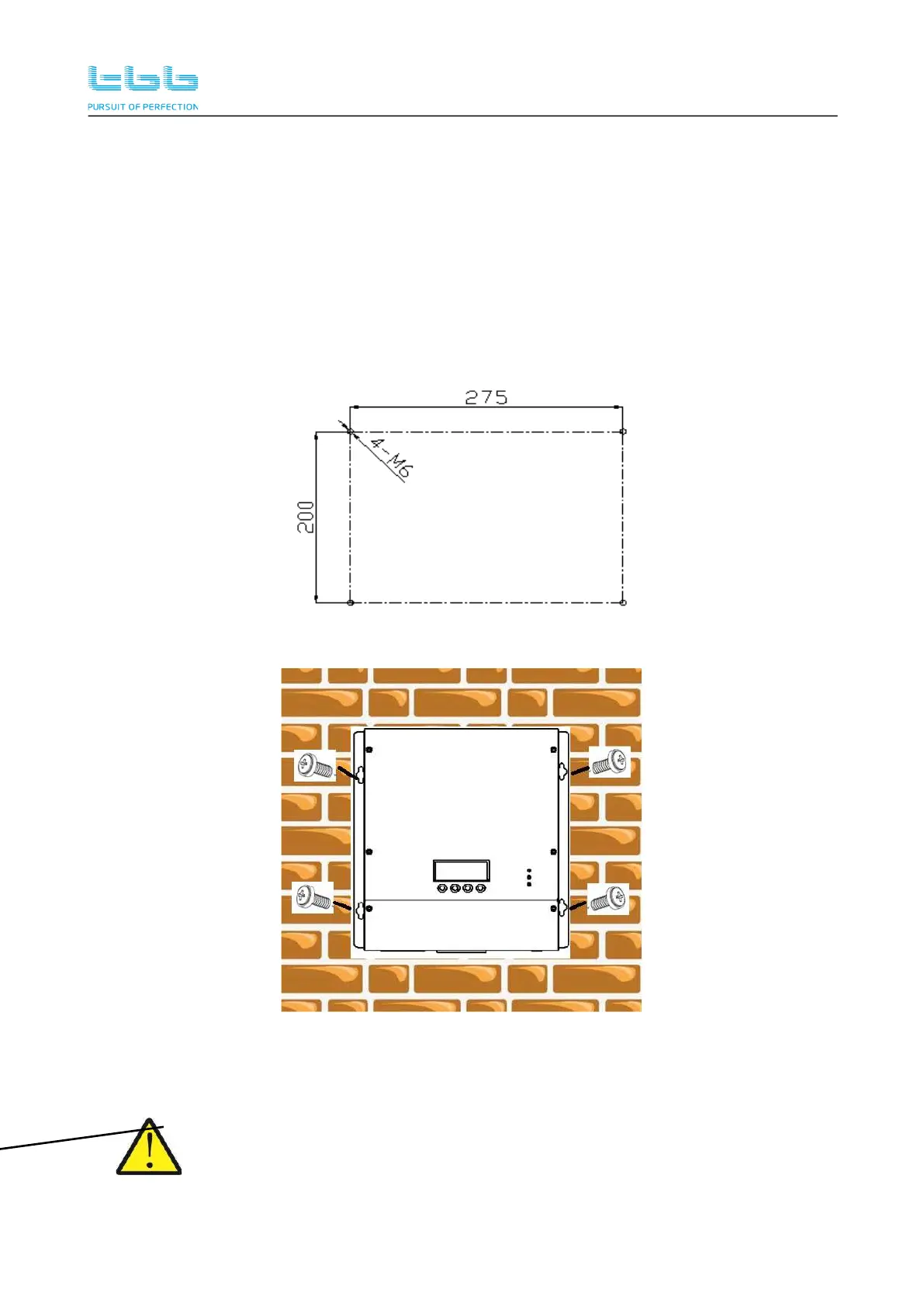

Figure 3-4 Illustration of installation
Figure 3-5 After installation
Please double check the SP is securely mounted on the wall.
