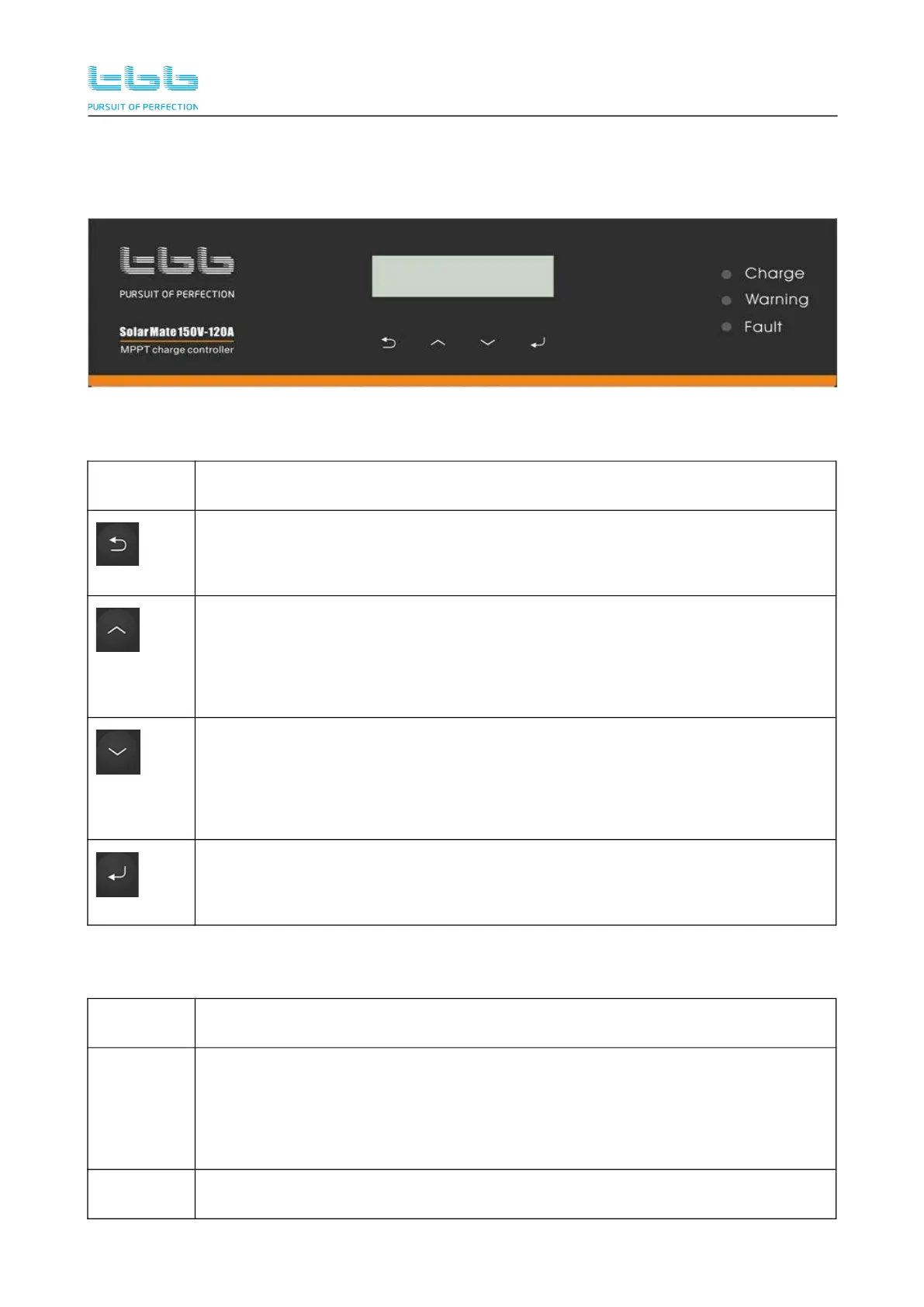

2.2.2 Control panel
2.2.2 Control panel
Fig
Fig
ure
ure
2-2 MPPT Control buttons
2-2 MPPT Control buttons
Tab
Tab
le
le
2-1 Control Buttons
2-1 Control Buttons
Button
Button
Function
Function
 Cancel the selection
 Display the previous level of menu
 Display the previous page
 Increase the value of the selected item
 Press the button for more than 2 seconds to scroll the page up
 Display the next page
 Decrease the value of the selected item
 Press the button for more than 2 seconds to scroll the page down
 Enter into this menu, displaying the next level
 Select and confirm the selection of a menu item
Table 2-2 LED directive function
Table 2-2 LED directive function
LED
LED
Function
Function
Charge  It Flash when SP is in standby.
 It Flash when SP is in float charging state.
 It illumirate when SP is perform charging .
Warning  It Flash when SP have warning.
