Energier Apollo User Manual
19

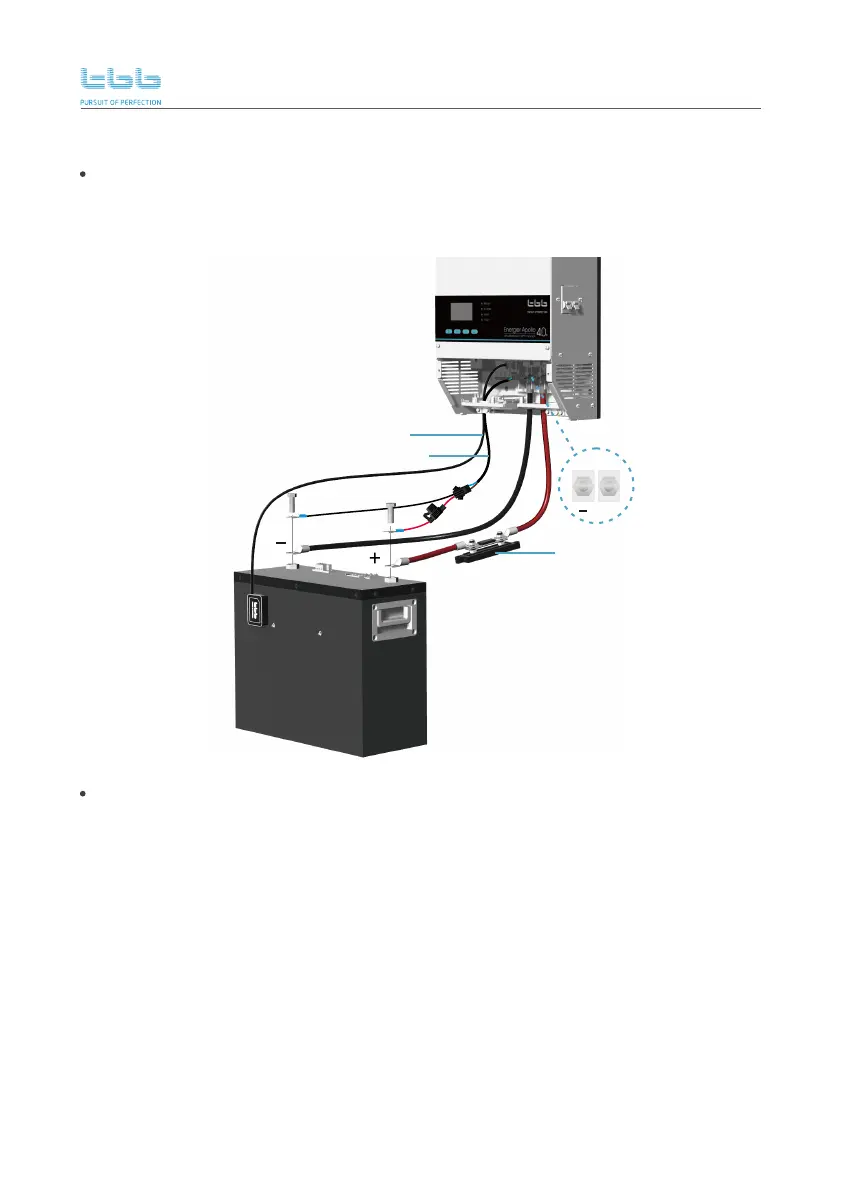

Connect the battery cables: the positive (+) and the minus (-), to the battery polarity positive
(BAT+) and the minus (BAT-),see section 3.2 wiring area description. Reverse polarity connection
(+ to – and – to +) will cause damage to the product.
Secure the nuts tightly in order to reduce the contact resistance.
Battery Temperature Sensor
Battery Voltage Sensor
DC fuse
+
BAT
