Power on the radio, configure a new model profile and enable the external RF module - see the radio
manufacturers manual for further details on how to complete this step.

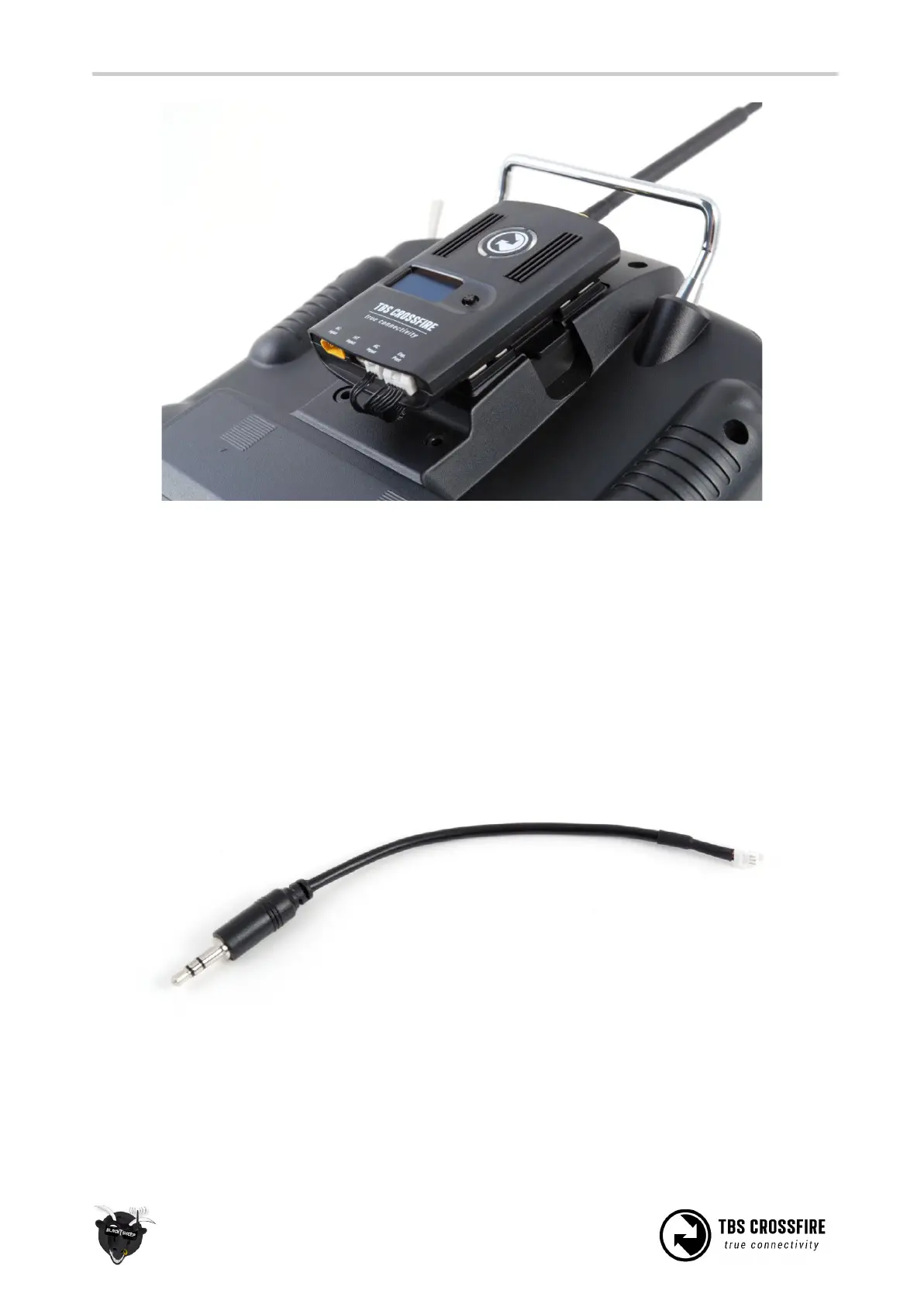

Using Hitec/Graupner/JR-cable
If you own a Hitec, Graupner or JR radio (does not work for Spektrum radios) without a JR-module slot, you
can still use the trainer output connector to get the necessary power and PPM control signals to the TBS
CROSSFIRE transmitter. Note that this will not provide CRSF-data, see the following section.
Connect the included cable to the radio trainer port and the other end to the left port (RC) on the
transmitter.
