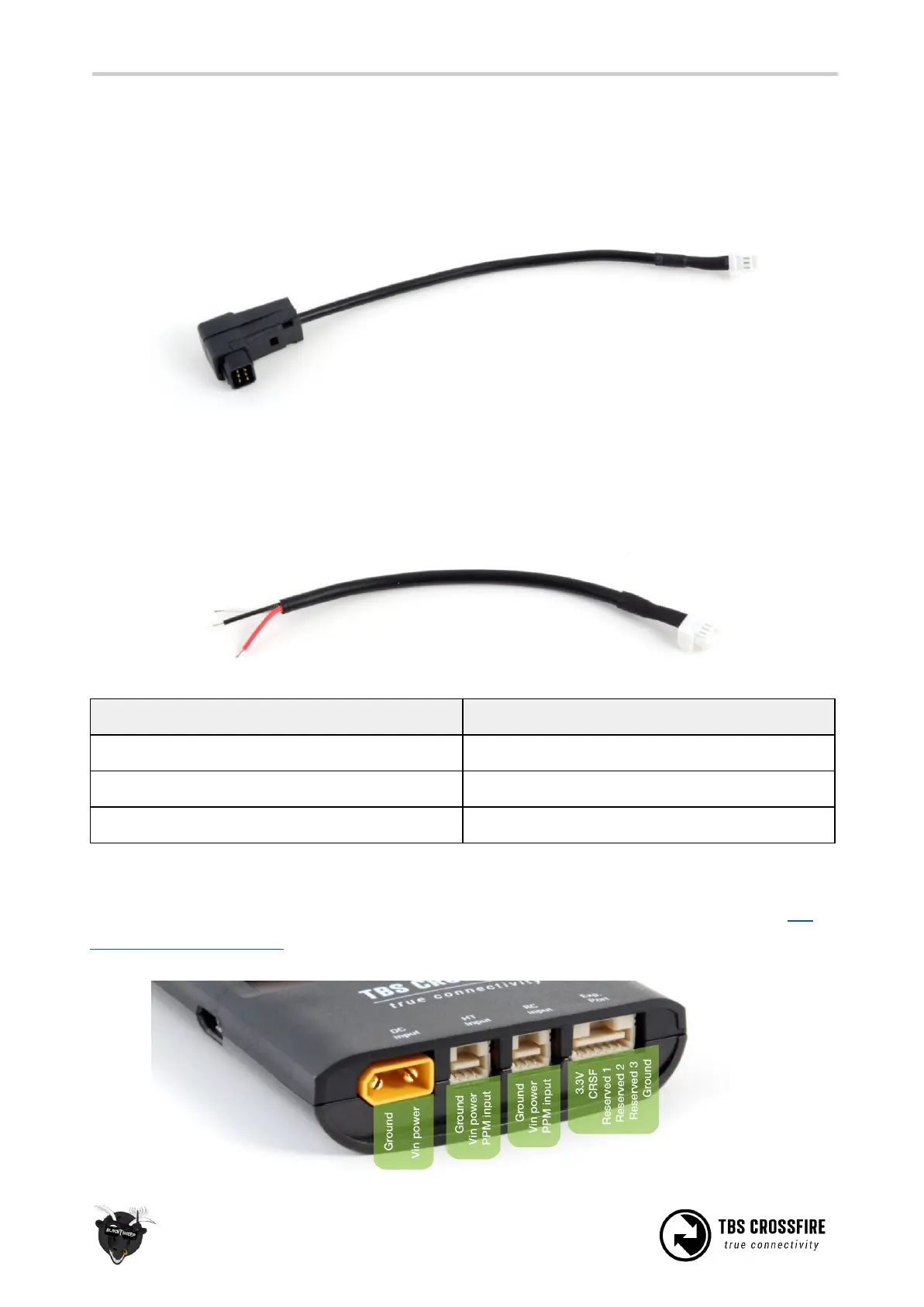

TBS CROSSFIRE Micro TX - Using Futaba-Cable; Using Custom PPM Cable; CRSF with Other Radios



Using Futaba-cable
For Futaba radios you can use the trainer port to feed the PPM signal to the TBS CROSSFIRE transmitter.
Connect the included cable to the radio trainer port and the other end to the left port (RC) on the
transmitter.

Using custom PPM cable
If you want to connect any other radio, or have a custom setup, you can use the 3-pin pigtail-cable and
solder the wires according to the table below to suit your needs.

Radio pin (left in photo above)
TBS CROSSFIRE 3-pin cable
White - PPM
1 - PPM
Red - Power
2 - Power
Black - Ground
3 - Ground

CRSF with other radios
To add CRSF capability to any supported radio, you will need to use the expansion port cable called “TBS
CROSSFIRE JR-Adapter cable” and customize it. The pin-out is shown in the following picture.




