Connecting CROSSFIRE Diversity receiver
The compact receiver unit fits everything from small multirotors to very large airplanes. The receiver is
capable up to 8.4V and needs at least 4.5V input voltage. This can be applied to any of the eight servo
headers, e.g. a servo cable from a ESC with BEC, or a stand-alone BEC, with a suitable amperage rating -
min. 1A recommended. Make sure that adequate power is available by letting the model run for a few
minutes with servos connected, and check your BEC temperature.

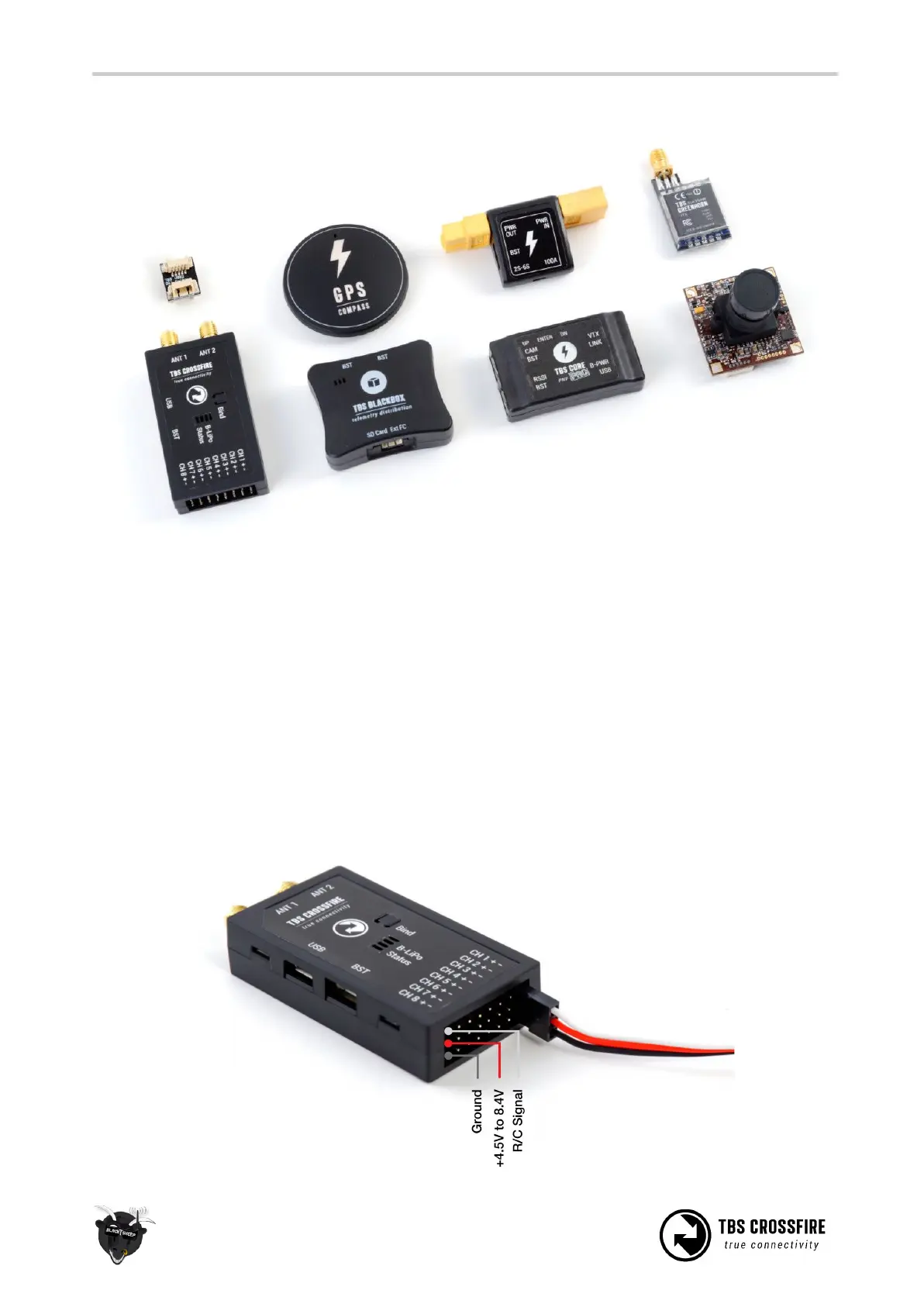

If you want to connect additional TBS products to you setup, e.g. CORE PRO, CURRENT SENSOR, BLACKBOX
and GPS, we are providing a 3-way BST splitter adapter to connect everything together.
The receiver servo header pin-polarity is standard and shown in the photo below. R/C signal for the flight
controller, servos or other equipment is connected to the white cable. All the power pins are
reverse-polarity protected.
