TC Electronic Finalizer User Manual

29

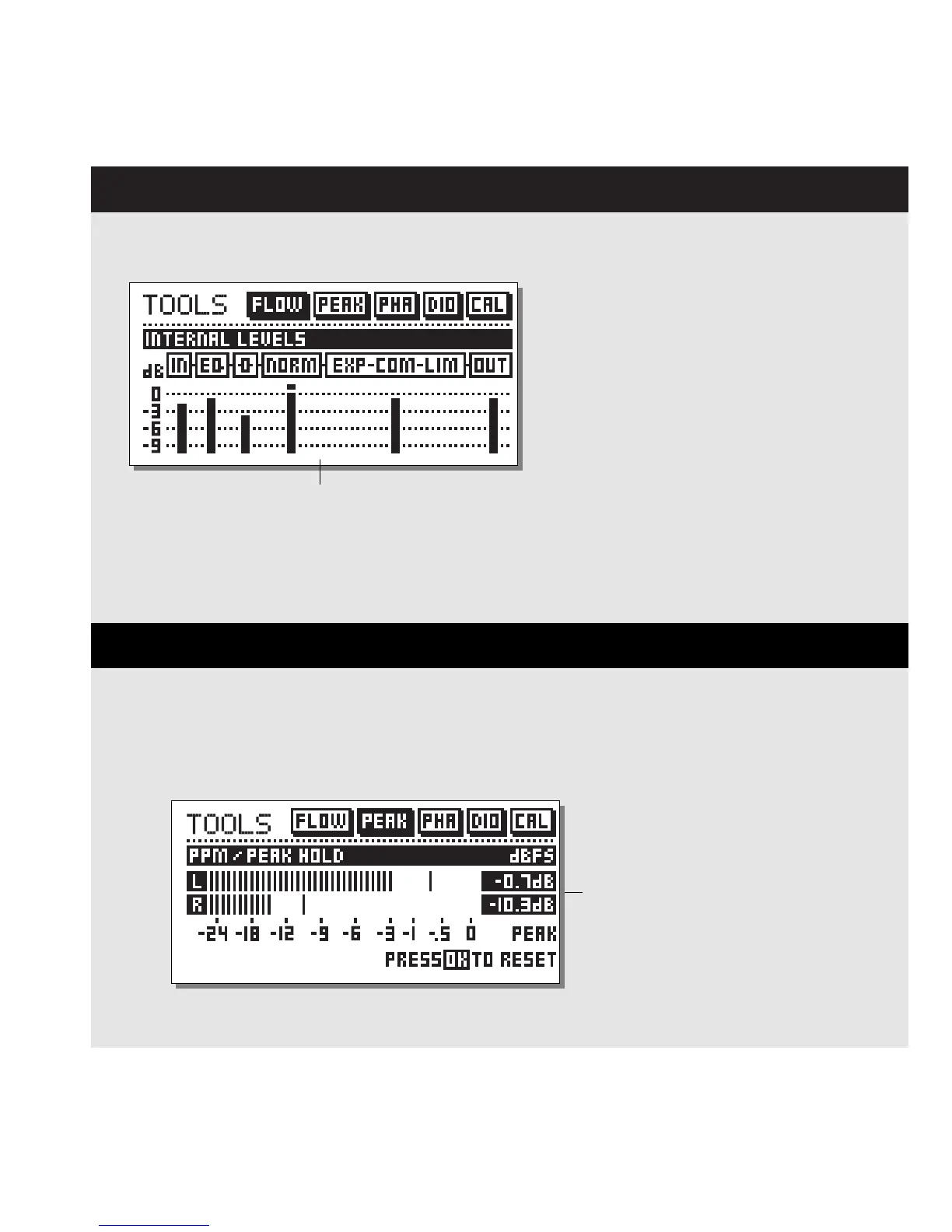

TOOLS Flow
Internal levels (ppm)
TOOLS Peak-Hold Meter
Numeric readout of peak values
Flow
In the Flow Meter, you have six small peak meters,
representing the level in the different sections of
the Finalizer.
This can be very helpful in a number of situations.
I.e. you have an overload indication on the front,
but you do not know in which section the overload
is located: now you simply press TOOLS and select
the Flow meter, and you have instant view of all
levels and possible overloads in the Finalizer.
Peak
The Peak-Hold Meter is an output meter with infi-
nite hold. It is possible to see the level of the maxi-
mum peak in 0.10 dB precision.
Press OK to reset the meter.

TC Electronic Finalizer Specifications

General

Bit Depth	24-bit
Type	Mastering Processor
Inputs	Analog XLR, Digital AES/EBU, S/PDIF
Outputs	Analog XLR, Digital AES/EBU, S/PDIF
Processing	EQ, Compression, Limiting, Stereo Enhance
Sample Rate	32 kHz, 44.1 kHz, 48 kHz
