TC Electronic SYSTEM 6000 MKII User Manual

7
paGe Head
HW & INSTALLATION
7

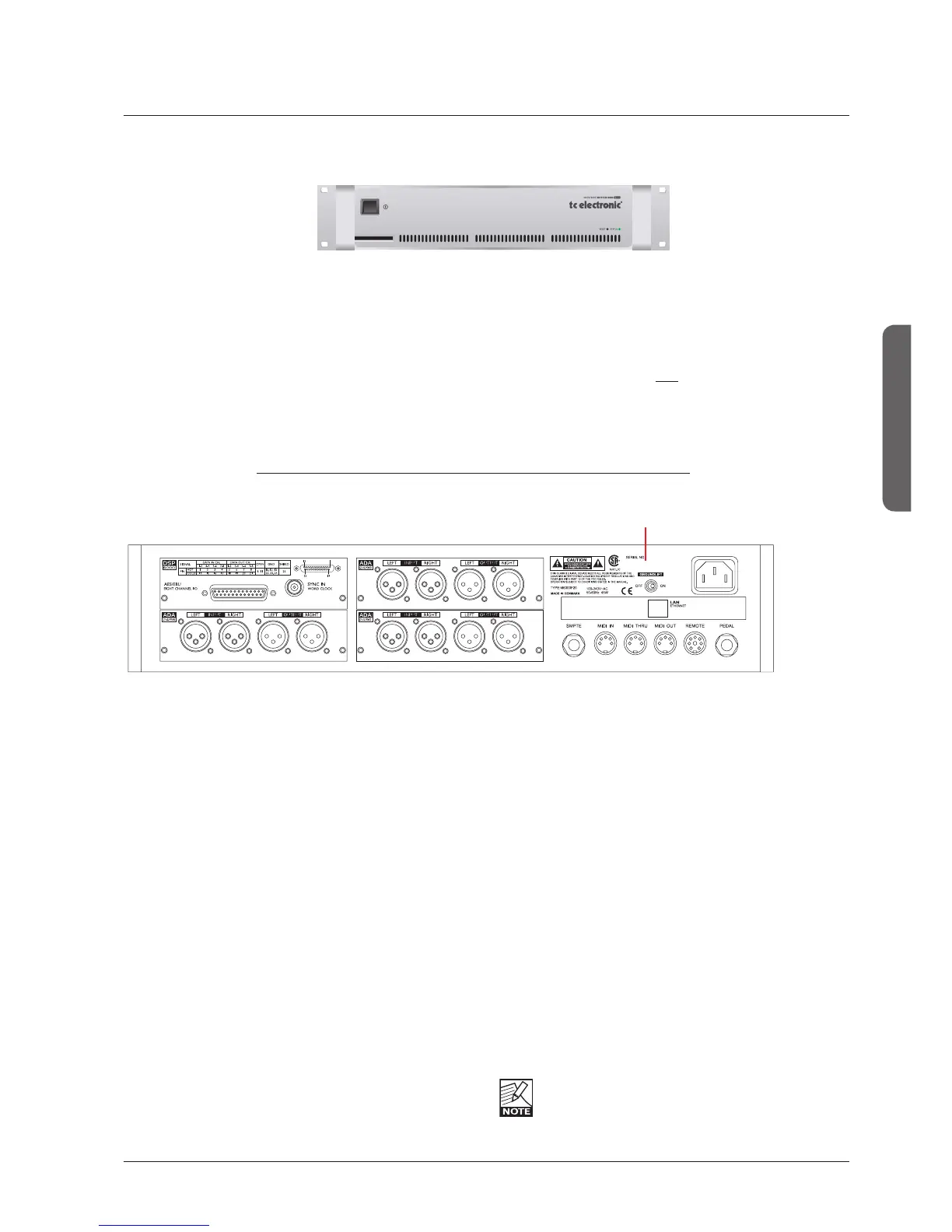

frOnT and rear
System 6000 Mainframe Front
Power Key
Switches power On/Off.
PCMCIA slot
For handling of preset banks.
Power On LED
'XULQJVWDUWXSWKLV/('LVUHG:KHQWKHXQLWLVUHDG\IRU
XVHWKH/('ZLOOWXUQJUHHQ
System 6000 Mainframe Rear
I/O Slot - A
I/O Slot - B (AES-8)
DSP Slot
I/O Slot - C
I/O Slots A, B and C
These slots are used for the optional I/O cards ADA 24/96
and AES-8. Slots must be filled consecutively in alphabetic
order.
The System 6000 DSP card fits in the DSP slot only. When
I/O cards are mounted, dip switches on the cards must be
set accordingly. Please see the following page.
$Q$(6FDUGVKRXOGEHLQVWDOOHGLQ³,26ORW%$(6´
only. If your mainframe rear panel carries a label saying
%86XSGDWHG\RXFDQLQVWDOOWKH$(6FDUG\RXUVHOI
following the instructions on the next of this chapter.
DSP Slot
The System 6000 DSP card is placed in the DSP Slot.
Power In
9$&+]DXWRVHOHFW
LAN/Ethernet
Connection for external control devices e.g. the TC Icon.
The type is 32 bit PCI Ethernet interface fully compliant
with IEE 802.3u 10/100 Mbps CSMA/CD standards.
7KHFRQQHFWRUW\SHLVD%DVH75-&1
SMPTE
´FRQQHFWLRQIRU6037(V\QF,QSXW
Ground Lift
Use this standard chassis ground lift if you encounter
problems with hum.
MIDI In, Thru and Out
5 pin DIN connectors.
Remote
This connection is for service and test purposes only.
Pedal
General Purpose Input. Connect a TC Master Fader or a
tip to ground switch. Applications vary depending on the
specific algorithm.
Rack-mounting Advice
 7KH0VKRXOGQRWEHSODFHGLQDQHQYLURQPHQWZLWK
a temperature exceeding 50 degrees Celsius.
 'RQRWFRYHUWKHYHQWLODWLRQRSHQLQJVRQWKHVLGHVRIWKH
frame.
The cooling fan is activated according to the
temperature inside.
Reset (countersunk)
Press and hold this button during boot to reset the frames
IP address to the default setting: 192.168.1.xx*, - where
³[[´LVWKHODVWWZRGLJLWVLQWKHIUDPHVVHULDOQXPEHU
1RWHLIWKHIUDPHVVHULDOQXPEHUHQGVRQ³´WKH,3
address will be: 192.168.1.100DV³´LVQRWDYDOLG,3
number in all networks.
Serial Number
