6. Numeric Display
Indicates the current patch.When tweaking, temporarily
indicates the tweak value for the last edited Tweak Knob.
7. Phantom Power Light
Indicates phantom power on or off.
8. Performance Button 1 - 5
Displays the current loaded performance.
9. Stereo Light
Indicates stereo mode on or off.
10. Left Footswitch
Switches between part A / B as well as performances.
11. Right Footswitch
Toggles effects on / off and tap tempo.
12. Mic Input
Microphone connection.
13. Left Output (mono)
Connects to a sound system (used for standard mono
setup)
14. Right Output (dry)
Connects to a sound system (used in stereo setup, or
sound engineer setup)
15. Power Input
Input connector for supplied power supply.

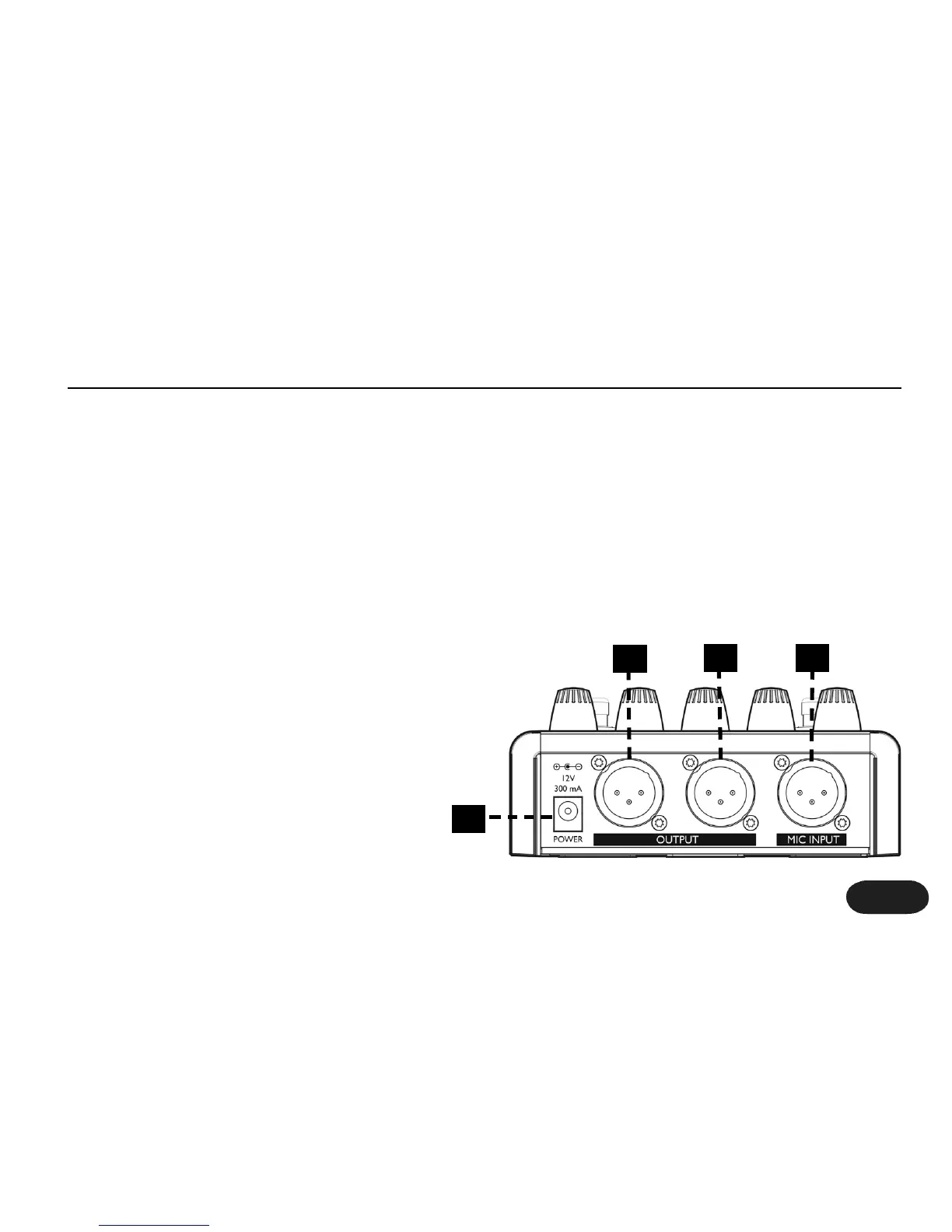

Front & Back Panel Descriptions
1213
14
15
